KVM > HD Video & Peripheral Matrix Switching


click photo to enlarge

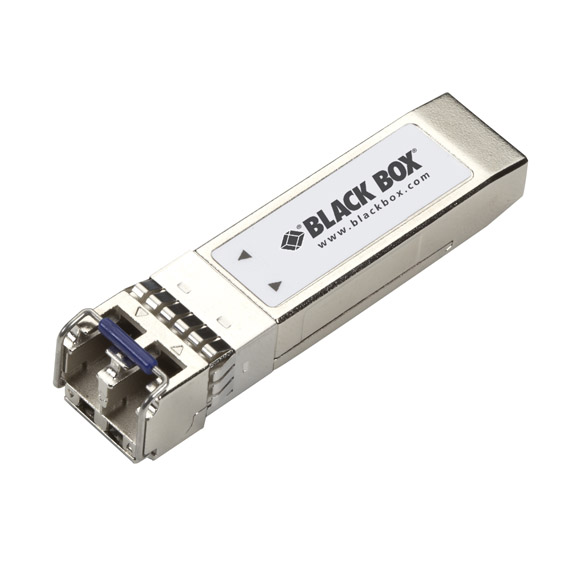

ACXSFPS

Photo may show similar product

Other views

DKM FX HD Video and Peripheral Matrix Switch Single-Mode Fiber SFP

For adding a single fiber transceiver port to your crosspoint DKM FX HD Video and Peripheral Matrix switching system.

ACXSFPS

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Provides one LC duplex fiber input/output for the DKM FX HD Video and Peripheral Matrix switching system.
  • Plugs into a slot on the empty DKM FX HD Video and Peripheral Matrix Switch SFP I/O Module (ACXIO8-SFP).
  • Distances up to 10 km (6.2 mi.) over single-mode 9-µm fiber.


  • Description

    DKM FX HD Video and Peripheral Matrix Switch Single-Mode Fiber SFP


    Quick Facts

  • Provides one LC duplex fiber input/output for the DKM FX HD Video and Peripheral Matrix switching system.
  • Plugs into a slot on the empty DKM FX HD Video and Peripheral Matrix Switch SFP I/O Module (ACXIO8-SFP).
  • Distances up to 10 km (6.2 mi.) over single-mode 9-µm fiber.

  • Further Details

    NOTE: As standard, the SFP supports connections to a duplex, 9-µm single-mode cable, but it can also be used with a duplex 50- or 62.5-µm multimode cable.

    NOTE: Supports point-to-point connections only. Connecting through active network components, such as Ethernet hubs or routers, is not supported.


    Technical Specifications for DKM FX HD Video and Peripheral Matrix Switch Single-Mode Fiber SFP:

    CE Approval Yes
    RoHS Yes
    Connectors (1) duplex LC (1000BASE-FX)
    Distance (Maximum) Without extenders, amplfiers, or boosters:
    Over single-mode 9-µm fiber: 10 km (6.2 mi.);
    Over multimode 50-µm (OM3) fiber: 1 km (0.6 mi.);
    Over multimode 50-µm fiber: 400 m (1312.3 ft.);
    Over multimode 62.5-µm fiber: 200 m (656.1 ft.)

    NOTE: If you use multimode fiber cable and connect a fiber port to the system's extender transmitters and receivers, you can normally double the maximum acceptable cable length.

    This product works with:
  • DKM FX HD Video and Peripheral Matrix Switch Empty SFP I/O Module, 8-Port (ACXIO8-SFP)
  • DKM FX HD Video and Peripheral Matrix Switch Chassis (ACX048, ACX080, ACX160, ACX288)
    Questions? Contact our FREE Tech Support.

    These DKM FX components are part of a complex and flexible modular system. You will need to contact Black Box to have them assembled to fit your application. To configure your DKM FX HD Video and Peripheral Matix Switch setup, contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for DKM FX HD Video and Peripheral Matrix Switch Single-Mode Fiber SFP:

    Manuals

    • DKM FX and DKM FX Compact API User Manual
      User Manual for the ACX048, ACX080, ACX160, ACX288, ACXIO8-C, ACXIO8-SM, ACXIO8-SPF, ACX288-CTL, ACXSFPC, ACXSFPS, ACX080-PS, ACX160-PS, ACX288-PS, ACXC16, ACXC32, & ACXC48 (Version 1)

    Visio Stencils

    • Visio Stencil
      Stencil Drawings

    Brochures

    • Broadcast and Media Solutions
      Enabling next-generation connectivity solutions for broadcast and media professionals.


    Connect your DKM FX HD Video and Peripheral Matrix Switch Single-Mode Fiber SFP with:

    Accessory: ACXIO8-SFP

    DKM FX HD Video and Peripheral Matrix Switch Empty SFP I/O Module, 8-Port

    DKM FX HD Video and Peripheral Matrix Switch Empty SFP I/O Module, 8-Port

    Accessory: ACX048

    DKM FX HD Video and Peripheral Matrix Switch, 48-Port Chassis

    DKM FX HD Video and Peripheral Matrix Switch, 48-Port Chassis

    Accessory: ACX080

    DKM FX HD Video and Peripheral Matrix Switch, 80-Port

    DKM FX HD Video and Peripheral Matrix Switch, 80-Port

    Accessory: ACX160

    DKM FX HD Video and Peripheral Matrix Switch, 160-Port

    DKM FX HD Video and Peripheral Matrix Switch, 160-Port

    Accessory: ACX288

    DKM FX HD Video and Peripheral Matrix Switch, 288-Port

    DKM FX HD Video and Peripheral Matrix Switch, 288-Port

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A warranty is included.

    Extended 1 Year Warranty Available


    Protect your purchase with an additional 1 Year Double Diamond™ warranty!
    Cost: $25.00

    Extended 3 Year Warranty Available


    Protect your purchase with an additional 3 Year Double Diamond™ warranty!
    Cost: $50.00

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most of our products come with a one- or two-year warranty. Some products—such as copper cables, manual switches, cabinets, and racks—are even guaranteed for life!

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product* for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! ?
    Tech Support Hotline 100% FREE! $$$

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    You can find this product in the following subcategory(s)


    Call for Pricing

    Quantity Available: 48

    To customize your order, please call

    1-877-877-2269.


    We answer in 30 seconds.

    Shipping Info

    In Stock - orders received before 5PM ET ship same day

    Weight: 0.042 lbs.
    HxWxD: 0.25 x 0.5 x 2.4 in.
