KVM > HD Video & Peripheral Matrix Switching


click photo to enlarge

ACXC48

Photo may show similar product

Other views

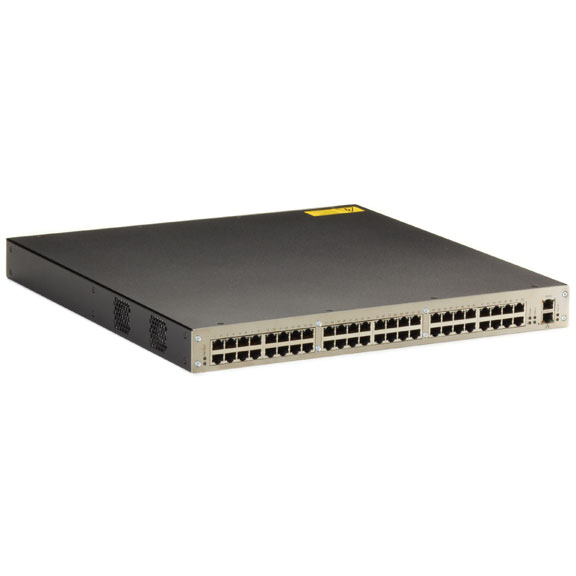

DKM FX Compact HD Video and Peripheral Matrix Switch, 48-Port CATx Chassis with Redundant Power Supply

Instantaneous switching of HD video in a smaller model for SMBs and space-conscious organizations.

ACXC48

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Use the cost-efficient DKM FX Compact switches to establish connections from consoles (monitor, keyboard, mouse, and other peripheral devices) to various sources, such as computers and CPUs.
  • RJ-45 CATx ports can be input or output.
  • Chassis is 1U for easy mounting in server cabinet and racks.


  • Description

    DKM FX Compact HD Video and Peripheral Matrix Switch, 48-Port CATx Chassis with Redundant Power Supply


    Quick Facts

  • Use the cost-efficient DKM FX Compact switches to establish connections from consoles (monitor, keyboard, mouse, and other peripheral devices) to various sources, such as computers and CPUs.
  • RJ-45 CATx ports can be input or output.
  • Chassis is 1U for easy mounting in server cabinet and racks.

  • Further Details

  • Use with DKM Modular and Compact Extenders (ACX1MT and ACX1MR series, and ACX1T and ACX1R series) to extend video, KVM, and USB 2.0 signals.
  • Can also be run as a video matrix switch.
  • Uses CATx cabling for extension.
  • DKM FX Compact HD Video and Peripheral Matrix Switches serve as repeaters, which mean they can be a maximum distance of 460 feet (140 m) from consoles or sources.
  • Redundant power supplies included.
  • Optional software bundles for external control, SYSLOG/SNMP, seamless cascading, etc. — one-time license purchase is good for the life of the switch.


  • Technical Specifications for DKM FX Compact HD Video and Peripheral Matrix Switch, 48-Port CATx Chassis with Redundant Power Supply:

    Approvals CE, RoHS, WEEE, FCC, TUV, UL
    Connector (48) RJ-45;
    (2) IEC320 C14 power input, (1) on/off;
    (1) RJ-45 for Network Connections;
    (1) RJ-45 for RS232;
    (1) Grounding Screw;
    DDC Support Emulated or Transparent, stored in transmitter and receiver units
    Distance 400 feet (140m) using solid conductor CATx cable;
    200 feet (70m) using stranded conductor CATx cable
    Environmental Operating Temperature: 41 to 113°F (5 to 45°C);
    Storage Temperature: –13 to 140°F (–25 to 60°C);
    Operating Humidity: 80% non-condensing, maximum
    Hotkey Support Right Shift, Right Shift (default)
    Interface Computer: Dependent on transmitter and receiver units;
    User: Compatible receiver card
    Leads Supported Video, Peripherial and Audio
    LED Interface (2) Fan Out;
    (2) Fan In;
    (2) Power;
    (2) Power Status;
    (2) on RJ-45 network connection;
    (1) LED for every interconnect RJ-45
    Operating System Supported All Windows, MAC, Sun, Linux/Unix
    OSD Support Yes
    PC Selection OSD, Java Tool or Serial Interface
    Power Source: Internal Power Supply (Model: HRP-100);
    Input: 90-240V, 50-60Hz, 2 Amps, maximum;
    Consumption: @120 VAC, 240 Watts, @240 VAC, 480 Watts;
    Heat Dissiptation: @120 VAC, 240 Watts, 818.4 BTU/h, @240 VAC, 480 Watts,1,636.8 BTU/h
    Dimensions Unit: 17.48" x 16.88" x 1.73" (444 x 429 x 44 mm)
    Weight Unit: 9 lbs. (4.1 kg);
    Shipping: 13.2 lbs. (6 kg)

    This product works with:
  • DKM FX HD Video and Peripheral Matrix Switch Receiver Modular Interface Cards (AXC1MT, ACX1MR)
  • DKM FX HD Video and Peripheral Switching Compact Transmitters and Receivers (ACX1T, ACX1R)
  • DKM FX Compact Switch System Licenses (ACX-JAX, SYS, CAS, API)

  • NOTE: These DKM FX and DKM FXC components are part of a modular system. You will need to contact Black Box to have them configured for your application. For a FREE consultation on your application, contact our Tech Support Engineers.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for DKM FX Compact HD Video and Peripheral Matrix Switch, 48-Port CATx Chassis with Redundant Power Supply:

    Manuals

    • DKM FX/FXC Compact Manual
      API User Manual (Version 2)
    • DKM FX/FXC Compact Manual
      User Manual (Version 4)
    • DKM FX HD Video and Peripheral Matrix Switch Manual
      Modular Component Reference Guide

    Application Diagrams

    Visio Stencils

    • Visio Stencil
      Stencil Drawings

    Firmware

    • ServSwitch DKM FX Matrix KVM Switch Software
      Current Software, Version 3.0.3.1
    • DKM FX HD Video and Peripheral Matrix Switch Firmware
      Firmware, Version 3.0 (08-21-14)
    • DKM FX HD Video and Peripheral Matrix Switch Firmware
      Firmware, Version 1.9.3
    • DKM FX HD Video and Peripheral Matrix Switch Firmware
      Current Firmware, Version 3.0 (11/24/14)
    • DKM FX HD Video and Peripheral Matrix Switch Firmware
      Firmware, Version 3.0 (07-02-14)
    • DKM FX HD Video and Peripheral Matrix Switch Firmware
      Firmware Version 2.10

    Software

    • ServSwitch DKM FX Matrix KVM Switch Software
      Software, Version 1.9.5
    • ServSwitch DKM FX Matrix KVM Switch Software
      Software, Version 3.0.2.1

    Brochures

    • Broadcast and Media Solutions
      Enabling next-generation connectivity solutions for broadcast and media professionals.


    Connect your DKM FX Compact HD Video and Peripheral Matrix Switch, 48-Port CATx Chassis with Redundant Power Supply with:

    Accessory: ACX1T-11-C

    DKM HD Video and Peripheral Matrix Switch Compact Transmitter, CATx, Single DVI-D Plus (2) USB HID

    DKM HD Video and Peripheral Matrix Switch Compact Transmitter, CATx, Single DVI-D Plus (2) USB HID

    Accessory: ACX1R-12A-C

    DKM HD Video and Peripheral Matrix Switch Compact Receiver, CATx, Single DVI-D Plus (4) USB HID

    DKM HD Video and Peripheral Matrix Switch Compact Receiver, CATx, Single DVI-D Plus (4) USB HID

    Accessory: ACX1T-13-SM

    DKM HD Video and Peripheral Matrix Switch Compact Transmitter, Fiber, Single DVI-D Plus (2) USB HID and (4) USB 2.0

    DKM HD Video and Peripheral Matrix Switch Compact Transmitter, Fiber, Single DVI-D Plus (2) USB HID and (4) USB 2.0

    Accessory: ACX1R-12D-C

    DKM HD Video and Peripheral Matrix Switch Compact Receiver, CATx, Single DVI-D Plus (2) USB HID and Digital Audio

    DKM HD Video and Peripheral Matrix Switch Compact Receiver, CATx, Single DVI-D Plus (2) USB HID and Digital Audio

    Accessory: ACX1R-11V-SM

    DKM HD Video and Peripheral Matrix Switch Compact Receiver, Fiber, Single DVI-D Out Plus IR-RC (2) USB HID

    DKM HD Video and Peripheral Matrix Switch Compact Receiver, Fiber, Single DVI-D Out Plus IR-RC (2) USB HID

    Accessory: ACX1MT-DHID-C

    DKM HD Video and Peripheral matrix Switch Transmitter Modular Interface Card, CATx DVI-I and USB HID Module with IR Remote Control

    DKM HD Video and Peripheral matrix Switch Transmitter Modular Interface Card, CATx DVI-I and USB HID Module with IR Remote Control

    Accessory: ACX-JAV

    DKM FX Compact Switch System License, Java

    DKM FX Compact Switch System License, Java

    Accessory: ACX-API

    DKM FX Compact Switch System License, API

    DKM FX Compact Switch System License, API

    Accessory: ACX-CAS

    DKM FX Compact Switch System License, Cascading

    DKM FX Compact Switch System License, Cascading

    Accessory: ACX-SYS

    DKM FX Compact Switch System License, SNMP and SYSLOG

    DKM FX Compact Switch System License, SNMP and SYSLOG
