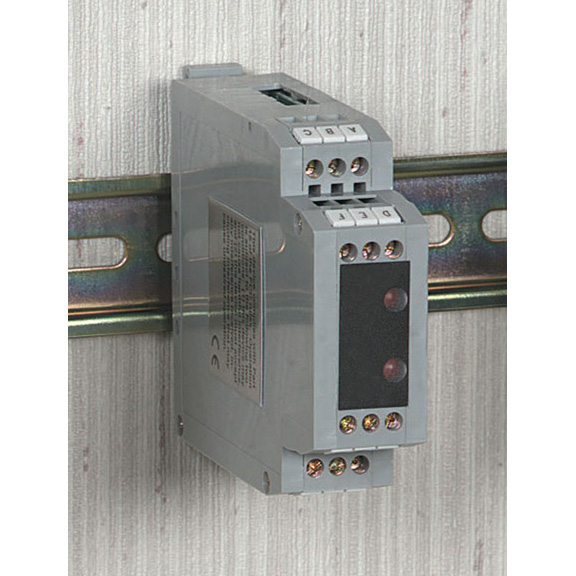

ICD102A

Photo may show similar product

Other views

DIN Rail Repeaters with Opto-Isolation, RS-422/RS-485

Put your industrial communications on the right track with these repeaters.

ICD102A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Act as repeaters, isolators, and extenders.
  • The RS-422/RS-485 model isolates RS-422/485 equipment, features selectable rates between 2400 bps and 115.2 kbps, and enables a system to exceed 32-node limitations.
  • The RS-232 model isolates the TD, RD, RTS, and CTS channels, supports 115.2-kbps speeds on all four channels, and extends the RS-232 signal beyond 50 feet (15.2 m).

  • Description

    DIN Rail Repeaters with Opto-Isolation, RS-422/RS-485


    Quick Facts

  • Act as repeaters, isolators, and extenders.
  • The RS-422/RS-485 model isolates RS-422/485 equipment, features selectable rates between 2400 bps and 115.2 kbps, and enables a system to exceed 32-node limitations.
  • The RS-232 model isolates the TD, RD, RTS, and CTS channels, supports 115.2-kbps speeds on all four channels, and extends the RS-232 signal beyond 50 feet (15.2 m).

  • Further Details



    Technical Specifications for DIN Rail Repeaters with Opto-Isolation, RS-422/RS-485:

    Isolation — ICD102A: 2000 VRMS for 1 minute of optical isolation of data lines;
    ICD103A: 2000 VDC for 1 minute
    Operating Environment — Temperature: -40 to +176° F (-40 to +80° C);
    Humidity: Up to 95% noncondensing
    Operation — ICD102A: RS-485: 2-wire half-duplex or 4-wire full-duplex; RS-422: Full-duplex;
    ICD103A: RS-232: Half- or full-duplex
    Speed — ICD102A: 2400 bps to 115.2 kbps, switch-selectable; other rates available up to 460.8 kbps;
    ICD103A: Up to 115.2 kbps
    Surge Suppression — ICD102A: Bidirectional overvoltage suppressor: 6.5 V; Peak power dissipation: 600 W; Capacitance (maximum): 3000 pF
    CE Approval — Yes
    Connectors — (2) 6-position terminal blocks
    Indicators — ICD102A: (2) LEDs: Data flow direction;
    ICD103A: (5) LEDs: (4) data flow direction, (1) power
    Power — 10–30 VDC, 100 mA
    Size — ICD102A: 0.9"H x 2.9"W x 3.9"D (2.3 x 7.4 x 9.9 cm);
    ICD103A: 1"H x 2.9"W x 3.9"D (2.5 x 7.4 x 9.9 cm)
    NOTE: To power as many as six repeaters, order our optional DIN Rail 12-VDC Power Supply (PSD100).
