ICD103A

Photo may show similar product

Other views

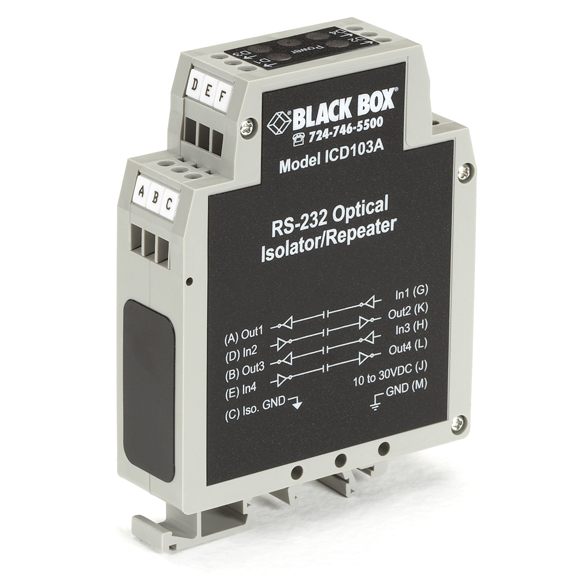

DIN Rail Repeater with Opto-Isolation, RS-232

Put your industrial communications on the right track with this repeater.

ICD103A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Acts as repeaters, isolators, and extenders.
  • T Isolates the TD, RD, RTS, and CTS channels, supports 115.2-kbps speeds on all four channels, and extends the RS-232 signal beyond 50 feet (15.2 m).

  • Description

    DIN Rail Repeater with Opto-Isolation, RS-232


    Quick Facts

  • Acts as repeaters, isolators, and extenders.
  • T Isolates the TD, RD, RTS, and CTS channels, supports 115.2-kbps speeds on all four channels, and extends the RS-232 signal beyond 50 feet (15.2 m).

  • Further Details

    Protect equipment from ground loops and spikes while optically isolating it from the rest of a network and expanding a system beyond node or distance limits.

    NOTE: Also available in a RS-422/RS-485 model (ICD102A).

    NOTE: To power as many as six repeaters, order our optional DIN Rail 12-VDC Power Supply (PSD100).

    This product works with:
  • DIN Rail (DR100)
  • DIN Rail 12-VDC Power Supply (PSD100) to power up to six repeaters
  • DB25 to Terminal Block Adapter (IC980)
    Questions? Contact our FREE Tech Support.

  • Technical Specifications for DIN Rail Repeater with Opto-Isolation, RS-232:

    Isolation — 2000 VDC for 1 minute
    Operating Environment — Temperature: -40 to +176° F (-40 to +80° C);
    Humidity: Up to 95% noncondensing
    Operation — RS-232: Half- or full-duplex
    Speed — Up to 115.2 kbps
    CE Approval — Yes
    Connectors — (2) 6-position terminal blocks
    Indicators — (5) LEDs: (4) data flow direction, (1) power
    Power — 10–30 VDC, 100 mA
    Size — 1"H x 2.9"W x 3.9"D (2.5 x 7.4 x 9.9 cm)
    NOTE: To power as many as six repeaters, order our optional DIN Rail 12-VDC Power Supply (PSD100).

    This product works with:
  • DIN Rail (DR100)
  • DIN Rail 12-VDC Power Supply (PSD100) to power up to six repeaters
  • DB25 to Terminal Block Adapter (IC980)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
