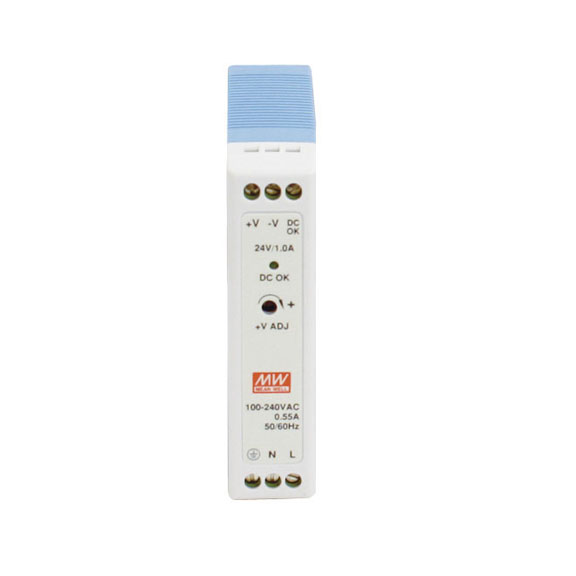

MDR-10-24

Photo may show similar product

Other views

DIN Rail Power Supply, 10 Watts, 24 VDC

Low profile power supply for tight spaces and tight budgets.

MDR-10-24

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Compact DIN rail mount power supply measuring less than an inch wide.
  • Use to power industrial devices such as Heavy Duty Edge Switches and Media Converter Switches.
  • LED indicates DC power.


  • Description

    DIN Rail Power Supply, 10 Watts, 24 VDC


    Quick Facts

  • Compact DIN rail mount power supply measuring less than an inch wide.
  • Use to power industrial devices such as Heavy Duty Edge Switches and Media Converter Switches.
  • LED indicates DC power.

  • Further Details

  • Universal 85–264-VAC input. It also accepts, but is not certified for, 120–370-VDC power.
  • Extended operating temperature range of -4 to +158° F.
  • Finger-safe terminals.
  • Protection from short circuits, overload, and over-voltage.
  • cUL, CE approved.


  • Technical Specifications for DIN Rail Power Supply, 10 Watts, 24 VDC:

    "
    Environmental
    Operating temperature: -4 to +158° F (-20 to +70° C);
    Storage temperature: -40 to +185° F (-40 to 85° C);
    Operating humidity: 20-90%, non-condensing;
    Storage humidity: 10-95%;
    Temperature coefficient: ±0.03%/° C, (0-50° C);
    Vibration: component: 10-500 Hz, 2G 10 minutes/1 cycle, 60 minutes each along X, Y, Z axes; mounting: compliant to IEC60068-2-6
    Power Protection
    Overload: Above 105% rated output power; Protection type: Hiccup mode, recovers automatically after fault condition is removed; Over voltage: 13.8-16.2V;Protection type: Shut down o/p voltage, repower on to recover
    CE Approval Yes
    Power
    Output:
    DC voltage: 24V;
    Rated current: 0.42A;
    Current range: 0-0.42A;
    Rated power: 10 watts;
    Ripple and noise (maximum): 150mVp-p;
    Voltage tolerance: ±2.0%;
    Line Regulation: ±1.0%;
    Load Regulation: ±2%;
    Setup, rise time: 500 ms, 30 ms/230-VAC; 1000 ms, 30 ms/115-VAC at full load;
    Hold up time (typical): 120 ms/230-VAC; 25 ms/115-VAC at full load;
    Input: Voltage range: 85-264-VAC, 120-370-VDC;
    Frequency range: 47-63Hz;
    Efficiency (typical): 84%;
    AC Current (typical): 0.33A/115-VAC; 0.21A/230-VAC;
    Inrush current (typical): Cold start: 35A/115-VAC, 70A/230-VAC;
    Leakage current: <1mA/240-VAC
    Size 3.5"H x 0.9"W x 3.9"D (9 x 2.25 x 10 cm)
    Weight 0.4 lb. (0.2 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for DIN Rail Power Supply, 10 Watts, 24 VDC:


    Connect your DIN Rail Power Supply, 10 Watts, 24 VDC with:

    Accessory: LBH100A-H-SC-24

    Hardened Media Converter Switch, 10-/100-Mbps Copper to 100-Mbps Fiber, Multimode, 24-VDC, SC

    Hardened Media Converter Switch, 10-/100-Mbps Copper to 100-Mbps Fiber, Multimode, 24-VDC, SC

    Accessory: LBH100A-H-SSC-24

    Hardened Media Converter Switch, 10-/100-Mbps Copper to 100-Mbps Fiber, Single-Mode, 24-VDC, SC

    Hardened Media Converter Switch, 10-/100-Mbps Copper to 100-Mbps Fiber, Single-Mode, 24-VDC, SC

    Accessory: LBH240A-H-SC-24

    Hardened Heavy-Duty Edge Switch, (4) 10/100 Copper + (2) Fiber Ports, Multimode, 24-VDC, SC

    Hardened Heavy-Duty Edge Switch, (4) 10/100 Copper + (2) Fiber Ports, Multimode, 24-VDC, SC

    Accessory: LBH240A-H-SSC-24

    Hardened Heavy-Duty Edge Switch, (4) 10/100 Copper + (2) Fiber Ports, Single-Mode, 24-VDC, SC

    Hardened Heavy-Duty Edge Switch, (4) 10/100 Copper + (2) Fiber Ports, Single-Mode, 24-VDC, SC

    Accessory: LBH150A-H-SC-24

    Hardened Heavy-Duty Edge Switch, (5) 10/100 Copper + (1) Fiber Ports, Multimode, 24-VDC, SC

    Hardened Heavy-Duty Edge Switch, (5) 10/100 Copper + (1) Fiber Ports, Multimode, 24-VDC, SC

    Accessory: LBH150A-H-SSC-24

    Hardened Heavy-Duty Edge Switch, (5) 10/100 Copper + (1) Fiber Ports, Single-Mode, 24-VDC, SC

    Hardened Heavy-Duty Edge Switch, (5) 10/100 Copper + (1) Fiber Ports, Single-Mode, 24-VDC, SC
