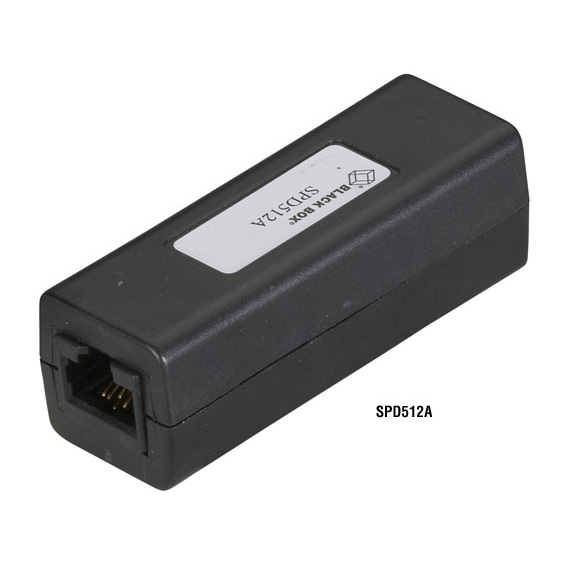

SPD512A

Photo may show similar product

Other views

DIN-Rail Mount In-Line Surge Protector, 10/100/1000BASE-TX, RS-422, RS-485, RS-423

In-line surge protection in a compact DIN-rail mount format.

SPD512A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Protect data lines with state-of-the-art avalanche diode and thyristor technology.
  • Maximize uptime by protecting data lines at the source.
  • Low shunt capacitance reduces signal loss.
  • Fit up to 16 compact in-line surge protectors in only 1U of rack space with our Rackmount DIN-Rail Shelf (SPDINRAK).

  • Description

    DIN-Rail Mount In-Line Surge Protector, 10/100/1000BASE-TX, RS-422, RS-485, RS-423


    Quick Facts

  • Protect data lines with state-of-the-art avalanche diode and thyristor technology.
  • Maximize uptime by protecting data lines at the source.
  • Low shunt capacitance reduces signal loss.
  • Fit up to 16 compact in-line surge protectors in only 1U of rack space with our Rackmount DIN-Rail Shelf (SPDINRAK).

  • Further Details



    Technical Specifications for DIN-Rail Mount In-Line Surge Protector, 10/100/1000BASE-TX, RS-422, RS-485, RS-423:

    Peak Pulse Current 100 Amps
    Response Time Less than 5 nanoseconds
    Shunt Capacitance (Maximum) <8pF
    Standard Clamp Voltage 7.5 Volts
    Connectors (2) BNC F; All others: (2) RJ-45

    NOTE: To determine the correct PoE surge protector for your application, contact our FREE Tech Support.

    These products work with:
  • Rackmount DIN-Rail Shelf for In-Line Surge Protectors (SPDINRAK).
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for DIN-Rail Mount In-Line Surge Protector, 10/100/1000BASE-TX, RS-422, RS-485, RS-423:


    Connect your DIN-Rail Mount In-Line Surge Protector, 10/100/1000BASE-TX, RS-422, RS-485, RS-423 with:

    Accessory: SPDINRAK

    19" Rackmount DIN-Rail Shelf for In-Line Surge Protectors
