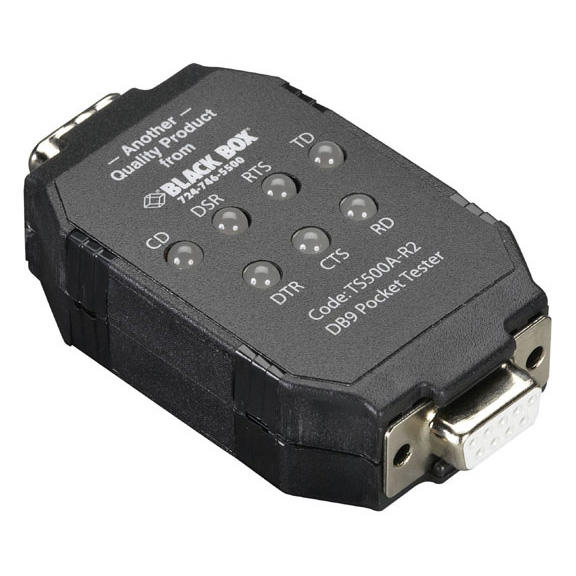

TS500A-R2

Photo may show similar product

Other views

DB9 PockeTester

Monitor DB9 data ports. Spot faults fast.

TS500A-R2

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Monitor seven RS-232 signals—DB9 Pins 1–4 and 6–8.
  • Monitor TD, RD, DTR, DSR, RTS, CTS, and DCD.
  • All nine pins are wired straight through.
  • Tiny size and low price make these testers a good resource to keep in your tool kit.


  • Description

    DB9 PockeTester


    Quick Facts

  • Monitor seven RS-232 signals—DB9 Pins 1–4 and 6–8.
  • Monitor TD, RD, DTR, DSR, RTS, CTS, and DCD.
  • All nine pins are wired straight through.
  • Tiny size and low price make these testers a good resource to keep in your tool kit.

  • Further Details

  • Draws power from the RS-232 interface—no AC power or batteries needed.
  • Large, colorful LEDs are easy to see.
  • Standard RS-232 DB9 interface means you don’t need any jumpers, switches, or special cables.
  • Works with any DB9 RS-232 interface.

    Attach the PockeTester to any RS-232 DB9 interface. A quick look at the LEDs tells you the status of each line: mark, space, or no signal.

    The PockeTester monitors the seven most important async data and control lines: TD, RD, DTR, DSR, RTS, CTS, DCD. All nine pins are wired straight through for accurate testing.

    Check system status instantly from anywhere in the room. The large red and green LEDs have a high color intensity and a wide viewing angle, making them easy to read. The black background of the molded case provides a good contrast to the LEDs for even better visibility. In fact, you can even infer data bias from the intensity of the color.

  • Technical Specifications for DB9 PockeTester:

    CE Approval Yes
    Connectors (1) DB9 F, (1) DB9 M
    Indicators — (7) Tri-state LEDs: TD, RD, DTR, DSR, RTS, CTS, DCD
    Power None required
    Size 2.7"H x 1.2"W x 0.8"D (6.9 x 3 x 2 cm)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
