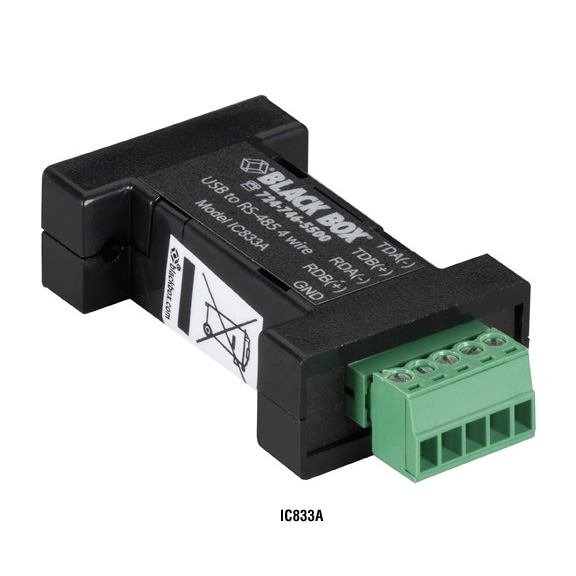

DB9 Mini Converter (USB to Serial), USB/RS-485 (4-wire, terminal block)

A small-package version of serial conversion.

IC833A

Extended Double Diamond™ Warranty Available (3 Additional Year)

Product Highlights

  • Use legacy serial devices with USB PCs and laptops.
  • Adds a COM port to your USB PC or laptop.
  • Supports USB 1.0, 1.1, and 2.0 (12 Mbps).


  • Further Details

  • Automatic configuration on Windows 98, ME, 2000, XP, and Vista systems.
  • Powered from the USB interface.
  • Includes 1-m (3.2-ft.) USB cable.

  • USB is the connectivity standard for today's PCs, replacing familiar serial ports. However, many commercial and industrial devices still use RS-232, RS-422, or RS-485 interfaces. To connect these devices to modern PCs, you need simple and reliable converters.

    The Black Box Mini USB-to-Serial Converter offer USB-to-serial conversion in a space saving package. Simply plug the converter into an available USB port on your computer or USB hub and install the drivers supplied on CD ROM. The serial device will show up as an additional COM port in the Windows Device Manager.

    RS-485 (two- and four-wire)
  • Support TDA, TDB, RDA, RDB, and GND.
  • Baud rates up to 921 Kbps.
  • Use on RS-485 2-wire or RS-422/485 4-wire networks.
  • Support Send Data Control (SDC).

  • RS-232
  • Full handshake support (TD, RD, RTS, CTS, DTR, DSR, DCD, RI, GND).
  • Baud rates up to 460 Kbps.


  • CE Yes
    Interface RS-232 or RS-485
    Connectors (1) USB Type B F, (1) terminal block
    Power 5 VDC from USB interface
    Size 0.6"H x 2.3"W x 1.3"D (1.6 x 5.8 x 3.2 cm)
    Weight < 0.5 lb. (< 0.5 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.

    Manuals

    • DB9 Mini Converter User Manual
      User Manual for the IC832A and IC833A (Version 2)

    Product Data Sheets

    Drivers

    • DB9 Mini Converter, USB to Serial, RS-232 (DB9) User Manual
      User Manual for the IC830A, IC831A, IC832A, IC833A, & IC834A (Version 1)

    Double Diamond Warranty
    Extended Double Diamond™ Warranty Available (3 Additional Year)
    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The DB9 Mini Converter (USB to Serial), USB/RS-485 (4-wire, terminal block) comes with a standard 5 Year warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    DB9 Mini Converter (USB to Serial), USB/RS-485 (2-wire, DB9) IC830A $115.10

    DB9 Mini Converter (USB to Serial), USB/RS-485 (4-wire, DB9) IC831A $115.10

    DB9 Mini Converter (USB to Serial), USB/RS-485 (2-wire, terminal block) IC832A $115.10

    DB9 Mini Converter (USB to Serial), RS-232 (DB9) IC834A $95.90
