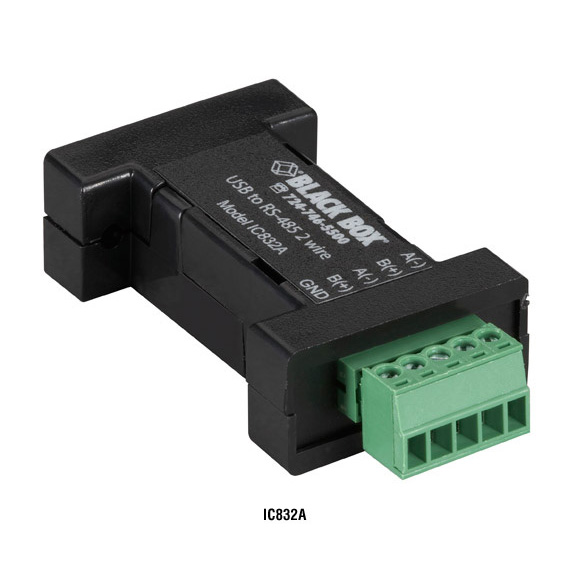

IC832A

Photo may show similar product

Other views

DB9 Mini Converter (USB to Serial), USB/RS-485 (2-wire, terminal block)

A small-package version of serial conversion.

IC832A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Use legacy serial devices with USB PCs and laptops.
  • Adds a COM port to your USB PC or laptop.
  • Supports USB 1.0, 1.1, and 2.0 (12 Mbps).

  • Description

    DB9 Mini Converter (USB to Serial), USB/RS-485 (2-wire, terminal block)


    Quick Facts

  • Use legacy serial devices with USB PCs and laptops.
  • Adds a COM port to your USB PC or laptop.
  • Supports USB 1.0, 1.1, and 2.0 (12 Mbps).

  • Further Details

  • Automatic configuration on Windows 98, ME, 2000, XP, and Vista systems.
  • Powered from the USB interface.
  • Includes 1-m (3.2-ft.) USB cable.

  • USB is the connectivity standard for today's PCs, replacing familiar serial ports. However, many commercial and industrial devices still use RS-232, RS-422, or RS-485 interfaces. To connect these devices to modern PCs, you need simple and reliable converters.

    The Black Box Mini USB-to-Serial Converter offers USB-to-serial conversion in a space saving package. Simply plug the converter into an available USB port on your computer or USB hub and install the drivers supplied on CD ROM. The serial device will show up as an additional COM port in the Windows Device Manager.

    RS-485 (two- and four-wire)
  • Support TDA, TDB, RDA, RDB, and GND.
  • Baud rates up to 921 Kbps.
  • Use on RS-485 2-wire or RS-422/485 4-wire networks.
  • Support Send Data Control (SDC).

  • RS-232
  • Full handshake support (TD, RD, RTS, CTS, DTR, DSR, DCD, RI, GND).
  • Baud rates up to 460 Kbps.


  • Technical Specifications for DB9 Mini Converter (USB to Serial), USB/RS-485 (2-wire, terminal block):

    CE Yes
    Interface RS-232 or RS-485
    Connectors (1) USB Type B F, (1) terminal block
    Power 5 VDC from USB interface
    Size 0.6"H x 2.3"W x 1.3"D (1.6 x 5.8 x 3.2 cm)
    Weight < 0.5 lb. (< 0.5 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for DB9 Mini Converter (USB to Serial), USB/RS-485 (2-wire, terminal block):

    Manuals

    • DB9 Mini Converter User Manual
      User Manual for the IC832A and IC833A (Version 2)

    Product Data Sheets

    Drivers

    • DB9 Mini Converter, USB to Serial, RS-232 (DB9) User Manual
      User Manual for the IC830A, IC831A, IC832A, IC833A, & IC834A (Version 1)
