Networking > Media Converters

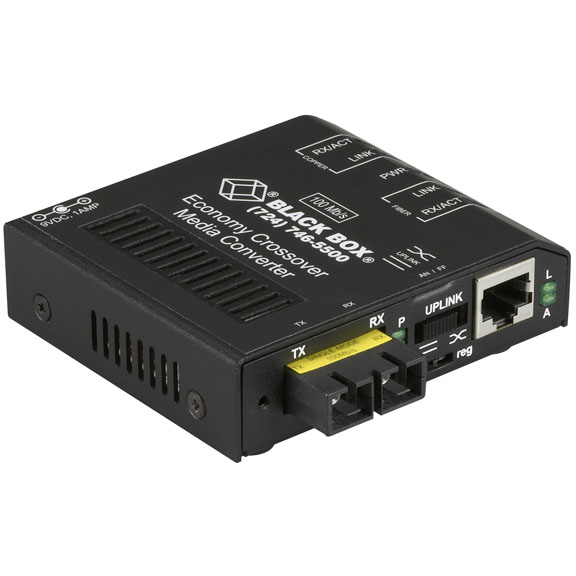

click photo to enlarge

LH1507A

Photo may show similar product

Other views

Crossover Media Converter, 100-Mbps, 100BASE-TX/Duplex Fiber, Single-Mode SC

Configurable UTP ports make Fast Ethernet media conversion even easier!

LH1507A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Converts 100BASE-TX/fiber.
  • A built-in uplink switch means you change the switch, not the cable, and make the right connection instantly.
  • Mount multiple units in optional Rackmount Trays.
  • Supports Link Pass-Through. A failure on either end of the link disables the link indicator on both ends.

  • Description

    Crossover Media Converter, 100-Mbps, 100BASE-TX/Duplex Fiber, Single-Mode SC


    Quick Facts

  • Converts 100BASE-TX/fiber.
  • A built-in uplink switch means you change the switch, not the cable, and make the right connection instantly.
  • Mount multiple units in optional Rackmount Trays.
  • Supports Link Pass-Through. A failure on either end of the link disables the link indicator on both ends.

  • Further Details

    This 100-Mbps Crossover Media Converter enables you to translate between twisted pair and fiber. A crossover feature is built in, so you don't need to worry about using external crossover cables.

    Just flip a switch to convert cable. The crossover feature is built-in, so the conversion takes place automatically—and you don't need to worry about the expense or hassle of using external crossover cables.

    For rackmounting, order the Rackmount Tray (LE1505-RACK) or the Powered Rackmount Tray (LH1505P-RACK). Each tray holds up to 16 media converters. The powered tray supplies power for up to eight media converters. You can also wallmount the converters with the included VELCRO® or metal brackets. DIN Rail Mounting Brackets are available, too.

    For this media converter with a universal power supply, contact Tech Support.

    This product works with:
  • Rackmount Tray (LE1505-RACK)
  • Powered Rackmount Tray (LH1505P-RACK)
  • DIN Rail Mounting Bracket (DIN-RAIL MC2)
  • Premium Ceramic Multimode 62.5-Micron Fiber Optic Patch Cable (EFN110-010M-SCSC)

  • Questions? Contact our FREE Tech Support.


    Technical Specifications for Crossover Media Converter, 100-Mbps, 100BASE-TX/Duplex Fiber, Single-Mode SC:

    Distance (Maximum) — 20 km (12.4 mi.)
    Network Standards — 100BASE-TX: IEEE 802.3u
    Operation — Autonegotiating half- or full-duplex
    CE Approval — Yes
    Indicators — (10) LEDs: (1) Power, (1) Link (copper port), (1) Link (fiber port), (2) RX/ACT (copper and fiber ports) plus redundant set on side of unit
    Power — 95–125 VAC, 60 Hz, external
    Size — 3.5"H x 3"W x 1"D (8.9 x 7.6 x 2.5 cm)
    Weight — 0.3 lb. (0.1 kg)
    This product works with:
  • Rackmount Tray (LE1505-RACK)
  • Powered Rackmount Tray (LH1505P-RACK)
  • DIN Rail Mounting Bracket (DIN-RAIL MC2)
  • Premium Ceramic Multimode 62.5-Micron Fiber Optic Patch Cable (EFN110-010M-SCSC)

  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
