Networking > Media Converters

click photo to enlarge

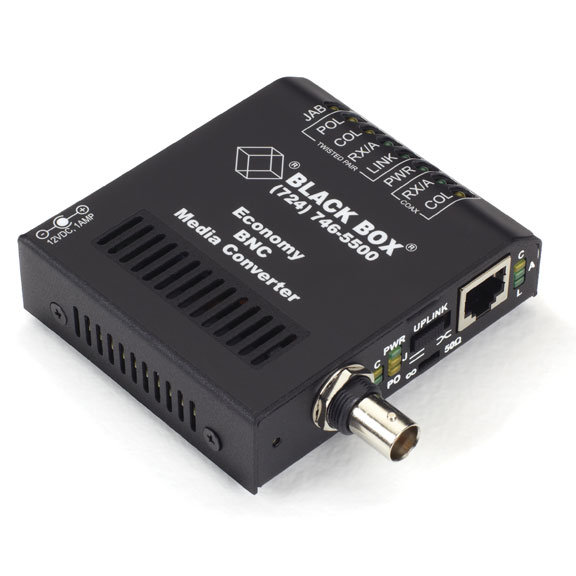

LE1502AE-R4

Photo may show similar product

Other views

Crossover Media Converter, 10-Mbps, 10BASE-T to ThinNet, with Universal Power Supply

Inexpensive media conversion with configurable UTP ports.

LE1502AE-R4

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Don’t repin cable—just flip a switch.
  • Use the built-in uplink switch to configure the UTP port: straight through or crossover!
  • Has an internal BNC termination.

  • Description

    Crossover Media Converter, 10-Mbps, 10BASE-T to ThinNet, with Universal Power Supply


    Quick Facts

  • Don’t repin cable—just flip a switch.
  • Use the built-in uplink switch to configure the UTP port: straight through or crossover!
  • Has an internal BNC termination.

  • Further Details

  • Compact size enables you to tuck it into small spaces.
  • Mount multiple units in the optional Rackmount Tray.


  • This Crossover Media Converter enables you to translate between twisted-pair and ThinNet.

    Just flip a switch to convert cable. The crossover feature is built-in, so the conversion takes place automatically—and you don’t need to worry about the expense or hassle of using external crossover cables.

    This model has an internal BNC termination switch and operates with collision detection and indication.

    The converter is small enough to fit in the palm of your hand, so it takes up very little space. For rackmounting, order the Rackmount Tray (LE1505-RACK) or the Powered Rackmount Tray (LH1505P-RACK). Each Rackmount Tray holds up to 16 media converters, and the powered model supplies power for up to 8 media converters.

    Or you can VELCRO® mount it or use metal brackets to wallmount it wherever you want—we include both of these items with the Crossover Media Converter.

    This product works with:
  • CAT5 100-MHz Solid-Conductor Cable, 4-Pair, Straight-Pinned (EYN737MS)
  • Rackmount Tray (LE1505-RACK)
  • Powered Rackmount Tray (LH1505P-RACK)
  • DIN Rail Mounting Bracket (DIN-RAIL MC2)
  • Questions? Contact our FREE Tech Support.


    Technical Specifications for Crossover Media Converter, 10-Mbps, 10BASE-T to ThinNet, with Universal Power Supply:

    Distance (Maximum) — 185 m (606.9 ft.)
    Network Standards — 10BASE-T: IEEE 802.3, 802.2
    Operation — Half- or full-duplex
    CE Approval — Yes
    Indicators — PWR, JAB; UTP: COL, RX, POL, LINK; BNC: COL, RX;
    Power — 100–240 VAC, 50-60 Hz, autosensing, external
    Size — 3.5"H x 3"W x 1"D (8.9 x 7.6 x 2.5 cm)
    Weight — 0.3 lb. (0.1 kg)

    This product works with:
  • CAT5 100-MHz Solid-Conductor Cable, 4-Pair, Straight-Pinned (EYN737MS)
  • Rackmount Tray (LE1505-RACK)
  • Powered Rackmount Tray (LH1505P-RACK)
  • DIN Rail Mounting Bracket (DIN-RAIL MC2)
  • Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Crossover Media Converter, 10-Mbps, 10BASE-T to ThinNet, with Universal Power Supply:

    Manuals

    • Crossover Media Converter, 10-Mbps, 10BASE-T to ThinNet, with 120-VAC Power Supply
      Installation and User Guide (8/5/2012)

    Product Data Sheets

    Black Box Explains


    Connect your Crossover Media Converter, 10-Mbps, 10BASE-T to ThinNet, with Universal Power Supply with:

    Accessory: DIN-RAIL MC2

    DIN Rail Mounting Bracket for (LBHxxxA, and LP004A) Switches

    DIN Rail Mounting Bracket for (LBHxxxA, and LP004A) Switches

    Accessory: EYN737MS

    CAT5 Solid-Conductor Patch Cable, PVC, Straight-Pinned, Beige, Custom Lengths

    CAT5 Solid-Conductor Patch Cable, PVC, Straight-Pinned, Beige, Custom Lengths

    Accessory: LE1505-RACK

    Rackmount Tray for LBHxxxA, LE15xxA, and LP004A Series with No Power Supply

    Rackmount Tray for LBHxxxA, LE15xxA, and LP004A Series with No Power Supply
