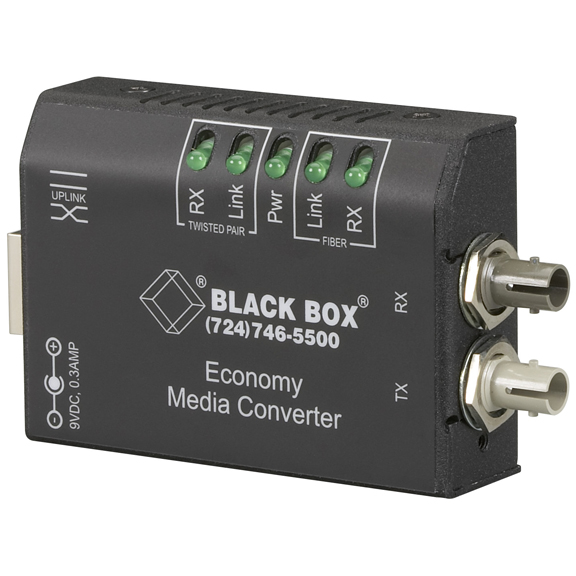

LE1506A

Photo may show similar product

Other views

Crossover Media Converter, 10-Mbps, 10BASE-T/Fiber, Multimode ST with Link Pass-Through

Inexpensive media conversion with configurable UTP ports.

LE1506A

Extended Double Diamond™ Warranty Available (3 Additional Year)

Product Highlights

  • Don't repin cable—just flip a switch.
  • Use the built-in uplink switch to configure the UTP port: straight through or crossover!
  • Supports Link Pass-Through. A failure on either end of the link disables the link indicator on both ends.


  • Further Details

  • Compact size enables you to tuck it into small spaces.
  • Mount multiple units in the optional Rackmount Tray.

    This Crossover Media Converter enables you to translate between twisted-pair and ThinNet or twisted pair and fiber.

    Just flip a switch to convert cable. The crossover feature is built-in, so the conversion takes place automatically—and you don't need to worry about the expense or hassle of using external crossover cables.

    The converter is small enough to fit in the palm of your hand, so it takes up very little space. For rackmounting, order the Rackmount Tray (LE1505-RACK) or the Powered Rackmount Tray (LH1505P-RACK). Each Rackmount Tray holds up to 16 media converters, and the powered model supplies power for up to 8 media converters.

    Or you can VELCRO® mount it or use metal brackets to wallmount it wherever you want—we include both of these items with the Crossover Media Converter.

    This product works with:
  • CAT5 100-MHz Solid-Conductor Cable, 4-Pair, Straight-Pinned (EYN737MS)
  • Rackmount Tray (LE1505-RACK)
  • Powered Rackmount Tray (LH1505P-RACK)
  • DIN Rail Mounting Bracket (DIN-RAIL MC2)
  • Questions? Contact our FREE Tech Support.

    Distance (Maximum) 2 km (1.2 mi.)
    Network Standards 10BASE-T: IEEE 802.3, 802.2
    Operation Half- or full-duplex
    CE Approval Yes
    Indicators PWR, JAB; UTP: COL, RX, POL, LINK; BNC: COL, RX
    Power 95–125 VAC, 60 Hz, external
    Size 3.5"H x 3"W x 1"D (8.9 x 7.6 x 2.5 cm)
    Weight 0.3 lb. (0.1 kg)
    This product works with:
  • CAT5 100-MHz Solid-Conductor Cable, 4-Pair, Straight-Pinned (EYN737MS)
  • Rackmount Tray (LE1505-RACK)
  • Powered Rackmount Tray (LH1505P-RACK)
  • DIN Rail Mounting Bracket (DIN-RAIL MC2)
  • Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.

    Accessory: EYN737MS

    CAT5 Solid-Conductor Patch Cable, PVC, Straight-Pinned, Beige, Custom Lengths

    CAT5 Solid-Conductor Patch Cable, PVC, Straight-Pinned, Beige, Custom Lengths

    Accessory: LE1505-RACK

    Rackmount Tray for LBHxxxA, LE15xxA, and LP004A Series with No Power Supply

    Rackmount Tray for LBHxxxA, LE15xxA, and LP004A Series with No Power Supply

    Accessory: DIN-RAIL MC2

    DIN Rail Mounting Bracket for (LBHxxxA, and LP004A) Switches

    DIN Rail Mounting Bracket for (LBHxxxA, and LP004A) Switches

    Double Diamond Warranty
    Extended Double Diamond™ Warranty Available (3 Additional Year)
    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The Crossover Media Converter, 10-Mbps, 10BASE-T/Fiber, Multimode ST with Link Pass-Through comes with a standard 3 Year warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    Crossover Media Converter, 10-Mbps, 10BASE-T to Multimode ST LE1505A $237.30



    Add to Cart

    Price: $285.80

    On Back Order

    Quantity

    Warranty

    Total

    Shipping Info

    Weight: 2 lbs.
    HxWxD: 3.3 x 5.5 x 10.7 in.
