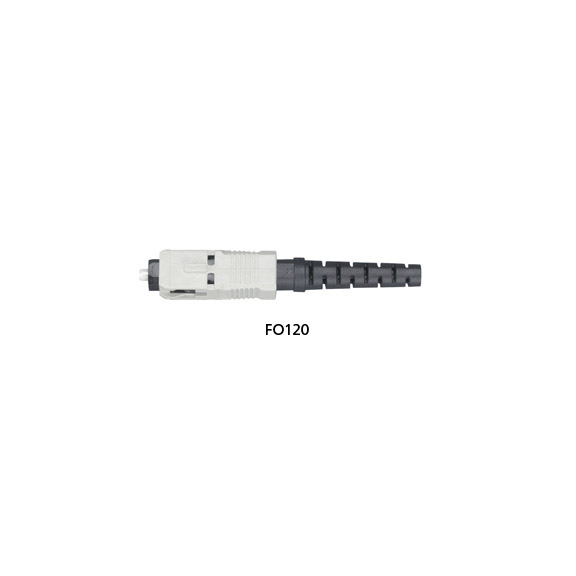

FO120

Photo may show similar product

Other views

Crimp Lock Fiber Optic Connector, Multimode, SC

The ideal choice for quick or emergency 62.5-micron multimode fiber connections.

FO120

Extended Double Diamond™ Warranty Available
(1 Year)

Product Highlights

  • Meets EIA/TIA-568 performance specifications.
  • No adhesive, setup, or electricity required.
  • No epoxy means no mess, no toxicology issues, and no waiting.
  • Reliable performance.

  • Description

    Crimp Lock Fiber Optic Connector, Multimode, SC


    Quick Facts

  • Meets EIA/TIA-568 performance specifications.
  • No adhesive, setup, or electricity required.
  • No epoxy means no mess, no toxicology issues, and no waiting.
  • Reliable performance.

  • Further Details

  • Preradiused PC zirconia ceramic ferrule ensures fiber contact and performance.
  • Press the locking arm to close the metal element securely around the fiber.
  • There is no fiber splice and second joint inside the connector, and no added attenuation at the connection.

  • This Crimp-Lock Connector is ideal for emergency restoration work or quick fiber connections made at the desk.

    For a sure connection, the fiber passes through the back end of the connector, through the conformable metal element, and beyond the end of the activation cap. Pressing the activation cap locking arm closes the metal element securely around the fiber. It’s that simple.

    Crimp-Lock Connectors help eliminate possible points of failure because there is no fiber splice or second joint inside the connector, and there is no added attenuation at the connection.

    Inside the connector, fiber movement is prevented two ways: The malleable metal element is designed to grip the fiber, and the plastic buffer retention insert grips the buffer without crushing it when the crimp ring is crimped.


    Technical Specifications for Crimp Lock Fiber Optic Connector, Multimode, SC:

    Attenuation — Mean: 0.13 dB;
    Maximum: 0.29 dB;
    Operating Temperature — +14° to +140°F (–10° to +60°C)
    Return Loss — Mean: 29 dB;
    Maximum: 27 dB


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Crimp Lock Fiber Optic Connector, Multimode, SC:


    Connect your Crimp Lock Fiber Optic Connector, Multimode, SC with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A warranty is included.

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most of our products come with a one- or two-year warranty. Some products—such as copper cables, manual switches, cabinets, and racks—are even guaranteed for life!

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product* for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! ?
    Tech Support Hotline 100% FREE! $$$

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    You can find this product in the following subcategory(s)


    Add to Cart

    Price: $22.95

    Quantity Available: 100

    Quantity

    Warranty

    Total

    Shipping Info

    In Stock - orders received before 5PM ET ship same day

    Weight: 0.031 lbs.
    HxWxD: 0.25 x 0.5 x 2 in.
