Cables > Fiber Patch Cables


click photo to enlarge

EFN4020-003M

Photo may show similar product

Other views

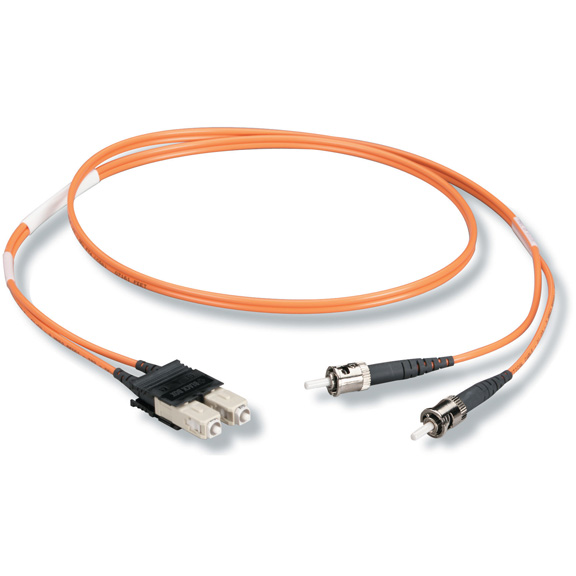

Composite Terminated Fiber Optic Cable, ST–SC, Duplex, Riser, 3-m (9.8-ft.)

For the budget conscious: fiber cable with composite connectors.

EFN4020-003M

LIFETIME DoubleDiamond™ Warranty (Standard)

Product Highlights

  • Composite connectors are constructed of durable polymer material.
  • Composite ferrules offer high precision and low light loss, typically 0.2 decibels.
  • Guaranteed for life!


  • Further Details

  • Ideal as a work-area, cross-connect, or equipment jumper cable.
  • Totally immune to electrical interference.
  • Multimode 62.5-µm/125-µm construction.
  • Near-unlimited bandwidth at high speeds over long distances.

    Now is the time to install fiber optic cable! You get almost unlimited bandwidth at high speeds—and over long distances.

    Run fiber to the desktop for increasingly common high-data-rate systems, such as FDDI, multimedia, or Asynchronous Transfer Mode (ATM)—any network application that requires the transfer of large, time-consuming files.

  • Attenuation 0.2 dB typical
    Bandwidth 160 MHz/km at 850 nm; 500 MHz at 1300 nm
    Bend Radius (Minimum) 5 cm
    Cable Size 0.12" x 0.24" (3 x 6.1 mm)
    Cladding Diameter 125 µm
    Core Diameter 62.5 µm
    Fiber Type Multimode (graded index)
    Insertion Loss 0.3 dB typical, 0.5 dB maximum
    Operating Temperature –4 to +158° F (–20 to +70° C)
    Reflectance <=–20 dB


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.

    Double Diamond Warranty
    LIFETIME DoubleDiamond™ Warranty (Standard)
    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The Composite Terminated Fiber Optic Cable, ST–SC, Duplex, Riser, 3-m (9.8-ft.) comes with a standard Lifetime warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    Composite Terminated Fiber Optic Cable, SC–SC, Duplex, Riser, 2-m (6.5-ft.) EFN4021-002M $79.80

    Composite Terminated Fiber Optic Cable, SC–SC, Duplex, Plenum, 10-m (32.8-ft.) EFP4022-010M $38.35

    You can find this product in the following subcategory(s)


    Add to Cart

    Price: $85.80

    On Back Order

    Quantity

    Warranty

    Total

    Shipping Info

    Weight: 0.156 lbs.
    HxWxD: 1 x 10 x 9 in.
