IC570A-R2

Photo may show similar product

Other views

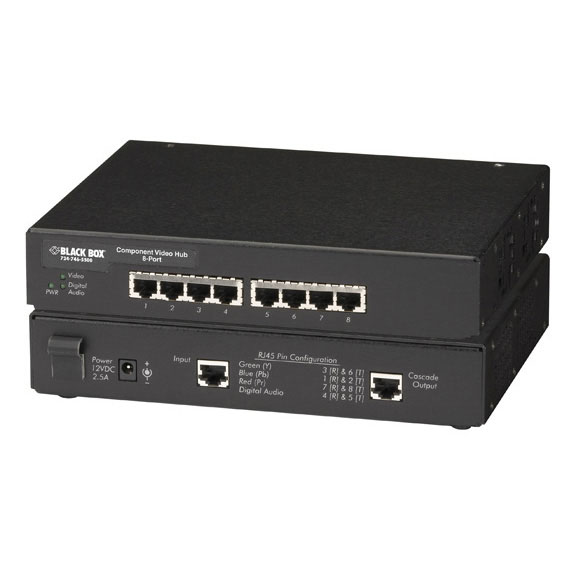

Component Video Hub, 8-Port

Send Component video and digital or analog audio to eight displays over CAT5.

IC570A-R2


Lifetime Warranty

Product Highlights

  • When used with compatible baluns, this hub enables you to distribute a high-resolution Component baseband video (Y-Pb-Pr or RGB) source, as well as one digital or analog audio source, to as many as eight locations.
  • Ideal for digital signage, retail point-of-sale displays, electronic billboards, classroom training, and other video-distribution applications.
  • Guaranteed for life!

  • Description

    Component Video Hub, 8-Port


    Quick Facts

  • When used with compatible baluns, this hub enables you to distribute a high-resolution Component baseband video (Y-Pb-Pr or RGB) source, as well as one digital or analog audio source, to as many as eight locations.
  • Ideal for digital signage, retail point-of-sale displays, electronic billboards, classroom training, and other video-distribution applications.
  • Guaranteed for life!

  • Further Details

  • Transmits at 480i/p up to 1000 feet (304.8 m) or at 720p/1080i/p up to 500 feet (152.4 m).
  • Installs anywhere in the line.
  • Fully UTP based with modular RJ-45 inputs and outputs. Use in the telecomm room in a structured cabling system.
  • Cascadable up to two levels at the RJ-45 interface.
  • Supports digital audio on the fourth twisted pair.
  • Ground loop isolation on every port ensures reliable performance.
  • Optimized to work with the Component Video/Digital Audio Balun (IC566A). Also compatible with Black Box’s IC440A, IC442A-R2, IC444A, and IC462A baluns.
  • Also available with 16 ports.


  • This product works with:
  • Component Video/Digital Audio Balun (IC566A)
  • Video-Only Balun (IC440A)
  • RGB Video Balun (IC442A-R2)
  • CCTV Video Balun (IC444A)
  • Audio Baluns (IC462A)
  • Questions? Contact our FREE Tech Support.


    Technical Specifications for Component Video Hub, 8-Port:

    Bandwidth (3 dB) — Video: DC to 77 MHz;
    Digital audio: DC to 52 MHz
    Common Mode Rejection — Input balanced/output balanced;
    Over the frequency range: Video: >40 dB;
    Digital audio: >31.5 dB
    Compatible Black Box Baluns — IC566A, IC440A, IC442A-R2, IC444A, IC462A
    Compatible UTP Cable — 24 AWG or lower solid, copper twisted-pair cable with a wire impedance of 100 ohms at 1 MHz, CAT3 or better
    Insertion Loss — Video: -0.8 dB at 4 MHz;
    Digital audio: -1.26 dB at 4 MHz
    Video Return Loss — -23 dB at 4 MHz
    CE Approval — Yes
    Connectors — Source input: (1) RJ-45S (rear panel);
    Looping output: (1) RJ-45S (rear panel);
    Distribution outputs: (8) RJ-45S (front panel)
    Indicators — LEDs: Power (green), Video Sync (green), Digital Audio Sync (green)
    Power — Input: 110 VAC, 60 Hz
    Size — 1.75"H x 9.2"W x 6.75"D (1.9 x 23.4 x 17.1 cm)
    Weight — 3.3 lb. (1.5 kg)
