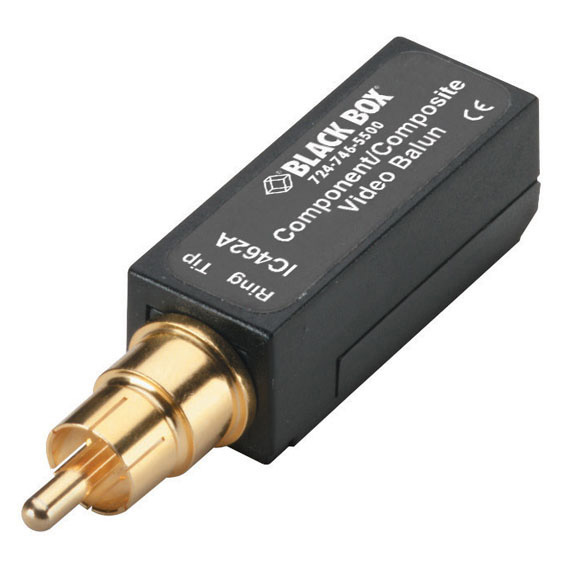

IC462A

Photo may show similar product

Other views

Component/Composite Video Balun

Save on cabling costs when connecting high-end video devices.

IC462A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Connect video devices that are spaced far apart by using inexpensive UTP cable instead of costly coax and/or Component cable.
  • Compact design for installing next to video equipment in tight spaces.
  • Guaranteed for life!


  • Description

    Component/Composite Video Balun


    Quick Facts

  • Connect video devices that are spaced far apart by using inexpensive UTP cable instead of costly coax and/or Component cable.
  • Compact design for installing next to video equipment in tight spaces.
  • Guaranteed for life!

  • Further Details

  • For high-resolution Component video (order three baluns per side to transmit all Y-PB-PR components), and up to 2200 feet (670.5 m) for single-signal Composite (NTSC, PAL, SECAM) video.
  • Ideal for equipment connections in home theaters, conference rooms, or training centers where UTP cable is already installed or where conduits don't allow for multiple bulky cable runs.
  • Cable strain relief for secure connections.
  • Audio Baluns also available (see "Related Products" in the previous window).
  • An easy and economical way to extend your high-resolution Component or single-signal Composite video equipment.


  • Technical Specifications for Component/Composite Video Balun:

    Bandwidth DC to 8 MHz
    Distance (Maximum) Over CAT5 UTP: Component: 1000 ft. (304.8 m); Composite: 2200 ft. (670.5 m)
    CE Approval Yes
    Connectors (2) screw terminals, (1) RCA jack
    Size 0.5"H x 1.25"W x 0.5"D (1.3 x 3.2 x 1.3 cm)

    NOTE: For Composite video, baluns must be used in pairs.

    NOTE: Three pairs are required for YPbPr connection.

    These products work with:
    • Audio Baluns (IC460A–IC461A)
    • CAT5 100-MHz Solid-Conductor Cable, 4-Pair, Straight-Pinned (EYN737MS)
