Video & Multimedia > Splitters

click photo to enlarge

AC1056A-4

Photo may show similar product

Other views

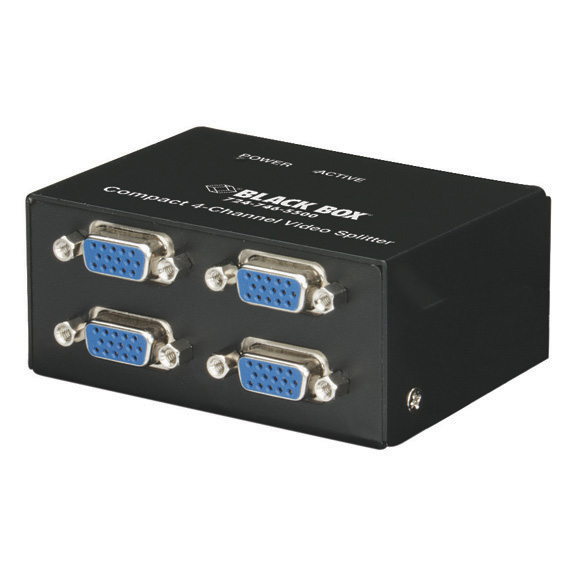

Compact VGA Video Splitter, 4-Channel

Link four monitors to one PC for a great presentation seen by many people at once.

AC1056A-4

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Send crisp, clear images from your PC to mulitple displays for trade shows, training, even public information systems.
  • Broadcast your PC monitor displays on four monitors up to 210 feet (64 m) away.

  • Description

    Compact VGA Video Splitter, 4-Channel


    Quick Facts

  • Send crisp, clear images from your PC to mulitple displays for trade shows, training, even public information systems.
  • Broadcast your PC monitor displays on four monitors up to 210 feet (64 m) away.

  • Further Details

  • Great for presentations, trade show or point of sale displays, or for displaying multimedia video to large audiences at sales or training meetings.
  • Or use to distribute on-line information to workstations on a factory floor while maintaining your CPU in a separate room.
  • Automatic power-save function for situations when the VGA signal is lost.
  • Quick setup. Just connect the VGA cables, power up your system, and you’re ready to start duplicating VGA images for multiple monitors.
  • Includes VGA cables for input and output connections.
  • Cascade units to increase VGA outputs to connect more monitors.
  • Provides clear, sharp images whether you’re using VGA, Super VGA (SVGA), or multisync monitors!
  • Features 350-MHz bandwidth.
  • Two- and eight-channel models also available.

  • What's included:
  • Splitter
  • (1) 6-ft. (1.8-m) HD15 male/HD15 male VGA input cable
  • (3) 10-ft. (3-m) HD15 male/HD15 female VGA output cables

  • Technical Specifications for Compact VGA Video Splitter, 4-Channel:

    Distance (Maximum) 210 ft. (64 m)
    Pixel Frequency 350 MHz
    Resolution (Maximum) 1920 x 1440 at 70 Hz
    CE Approval Yes
    Connectors Output: (4) HD15 F;
    Input: (1) HD15 F
    Power Input: 100–240 VAC, 50–60 Hz;
    Output: 5 VDC, 2 A
    Size 1.6"H x 3.3"W x 2.7"D (4.1 x 8.4 x 6.9 cm)
    Weight 6.2 lb. (2.8 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Compact VGA Video Splitter, 4-Channel:

    Manuals

    • Compact VGA Video Splitter
      (Version 2)


    Connect your Compact VGA Video Splitter, 4-Channel with:

    Accessory: EVNPS05-0003-FF

    Premium VGA Video Cable, PVC, 3-ft. (0.9-m)

    Premium VGA Video Extension Cable, Straight Hoods, Female/Female, 3-ft. (0.9-m)

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A warranty is included.

    Extended 1 Year Warranty Available


    Protect your purchase with an additional 1 Year Double Diamond™ warranty!
    Cost: $11.30

    Extended 3 Year Warranty Available


    Protect your purchase with an additional 3 Year Double Diamond™ warranty!
    Cost: $22.59

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most of our products come with a one- or two-year warranty. Some products—such as copper cables, manual switches, cabinets, and racks—are even guaranteed for life!

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product* for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! ?
    Tech Support Hotline 100% FREE! $$$

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    Compact VGA Video Splitter, 2-Channel AC1056A-2 $69.95

    Compact VGA Video Splitter, 8-Channel AC1056A-8 $189.95

    You can find this product in the following subcategory(s)


    Add to Cart

    Price: $99.95

    Quantity Available: 74

    Quantity

    Warranty

    Total

    Shipping Info

    In Stock - orders received before 5PM ET ship same day

    Weight: 6.219 lbs.
    HxWxD: 8.5 x 9.25 x 9 in.
