Networking > Terminal Servers

click photo to enlarge

LE995A-R5

Photo may show similar product

Other views

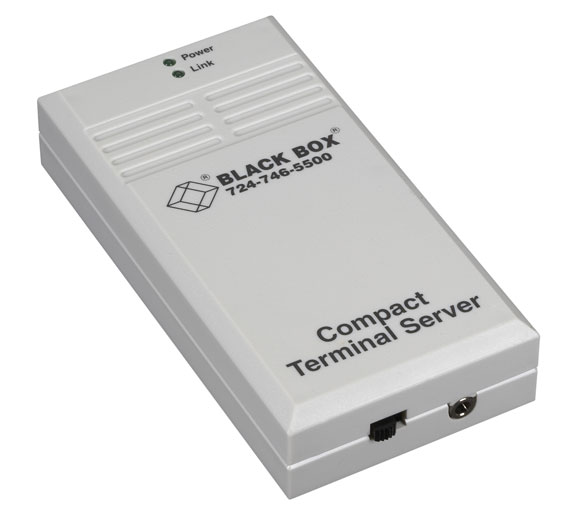

Compact Single-Port Terminal Server, AC Powered

Connect a remote serial device to your network.

LE995A-R5

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • This compact yet full-featured terminal server is the perfect way to connect a single remote serial device to your Ethernet network.
  • AC-powered.
  • Compact and lightweight.
  • Easy to install, configure, and use.

  • Description

    Compact Single-Port Terminal Server, AC Powered


    Quick Facts

  • This compact yet full-featured terminal server is the perfect way to connect a single remote serial device to your Ethernet network.
  • AC-powered.
  • Compact and lightweight.
  • Easy to install, configure, and use.

  • Further Details

  • No additional software required.
  • User-defined initialization commands for automatic connections on power-up.
  • Network management and control with SNMP and MIB II.
  • PPP and SLIP remote access.
  • Rlogin, Telnet, and Reverse Telnet remote-terminal applications.
  • Industry-standard TCP/IP protocols.
  • Speeds up to 115.2 kbps.
  • Also available in DC-powered version.


  • Enjoy the benefits of consistent, full-speed throughput instead of accepting the frequently lower performance of a shared terminal server! This compact yet full-featured terminal server is the perfect way to connect a single remote serial device to your Ethernet network. Designed for optimum network and terminal performance, the Compact Single-Port Terminal Server from Black Box provides true terminal baud rates.

    Because the port of the terminal server is dedicated to one serial device, you’ll always get maximum performance. At this price, you can easily add another serial device to your network without worrying about the expense.

    This small, lightweight terminal server is easy to install, configure, and use. It supports a range of industry-standard TCP/IP protocols including Rlogin, Telnet™, Reverse Telnet (raw sockets), PPP, SLIP, and LPD. And no additional software is required.

    This product works with:
    • RS-232 Cable, 25-Conductor, Male/Male (ECM25T, ECM25C)
    • CAT5 100-MHz Solid-Conductor Cable, 4-Pair, Straight-Pinned (EYN556MS, EYN737MS, EYN550MS, EYN790MS)
    Questions? Contact our FREE Tech Support.


    Technical Specifications for Compact Single-Port Terminal Server, AC Powered:

    Ethernet Coprocessor — SMC91C94
    Flow Control — Hardware or software
    Management — SNMP/MIB-II; Command-line interface
    Memory — RAM: 64 KB;
    NVRAM: 2 KB;
    EPROM: 256 KB
    Processor — Toshiba® 68HC000
    Speed — Ethernet: 10 Mbps;
    RS-232: 50 bps to 115.2 kbps
    Standards — IEEE 802.3 Ethernet; RS-232C
    Connectors — Network interface: (1) RJ-45 10BASE-T;
    Terminal interface: (1) RJ-45 RS-232C (accepts 4-, 6-, or 8-pin RJ-45 plugs)
    Indicators — (2) LEDs: Power, Link Integrity
    Power — Input: 115 VAC, 60 Hz, external wallmount; Output: 6 VDC, 200 mA, unregulated
    Size — 1.2"H x 2.6"W x 4.9"D (3 x 6.6 x 12.4 cm)
    Weight — 0.4 lb. (0.2 kg)
    This product works with:
    • RS-232 Cable, 25-Conductor, Male/Male (ECM25T, ECM25C)
    • CAT5 100-MHz Solid-Conductor Cable, 4-Pair, Straight-Pinned (EYN556MS, EYN737MS, EYN550MS, EYN790MS)
    Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
