Networking > Media Converters

click photo to enlarge

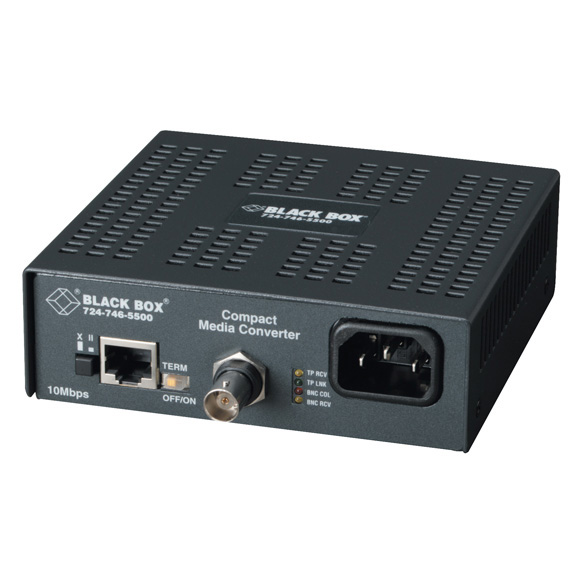

LMC009A-R5

Photo may show similar product

Other views

Compact Media Converter, 10BASE-T/10BASE2

No worries about where to put that bulky power supply!

LMC009A-R5

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Compact size means you can install it virtually anywhere. And the power supply is internal, so there's no bulky transformer.
  • This convenient media converter even includes a crossover switch for the UTP port and a termination switch for the BNC port.

  • Description

    Compact Media Converter, 10BASE-T/10BASE2


    Quick Facts

  • Compact size means you can install it virtually anywhere. And the power supply is internal, so there's no bulky transformer.
  • This convenient media converter even includes a crossover switch for the UTP port and a termination switch for the BNC port.

  • Further Details

  • Use it overseas, too—the power supply is autosensing 115/230 VAC.
  • Half-duplex operation.
  • Has two handy manual switches—crossover for the UTP port, termination for the BNC port.
  • Externally accessible port settings.
  • Four LEDs for easy diagnostics.
  • Supports IEEE 802.3 10BASE-T and 10BASE2 protocols and cabling standards.

  • This product works with:
    • ThinNet Cable (LCN300)
    • CAT5 100-MHz Patch Cable, 4-Pair, Straight-Pinned
    Questions? Contact our FREE Tech Support.


    Technical Specifications for Compact Media Converter, 10BASE-T/10BASE2:

    CE Approval — Yes
    Size — 1.5"H x 4.7"W x 4.4"D (3.8 x 11.9 x 11.2 cm)
    Weight — 2 lb. (0.9 kg)
    This product works with:
    • ThinNet Cable (LCN300)
    • CAT5 100-MHz Patch Cable, 4-Pair, Straight-Pinned
    Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Compact Media Converter, 10BASE-T/10BASE2:

    Manuals

    • Compact Media Converter, 10BASE-T/10BASE2 Manual
      Manual for LMC009A-R5 (Version 1)

    Product Data Sheets


    Connect your Compact Media Converter, 10BASE-T/10BASE2 with:

    Accessory: LCN300-0010

    ThinNet Cable, 10-ft. (3.0-m)

    ThinNet Cable, RG-58, 10BASE2, PVC (NEC® CL2), 10-ft. (3.0-m)

    Accessory: EVNSL01-0030

    CAT5 100-MHz Economy Patch Cable, 24 AWG, RJ-45, 4-Pair, PVC, T568B, Straight-Pinning, Blue, 30-ft. (9.1-m)

    CAT5 100-MHz Economy Patch Cable, 24 AWG, RJ-45, 4-Pair, PVC, T568B, Straight-Pinning, Blue, 30-ft. (9.1-m)
