Networking > Media Converters


click photo to enlarge

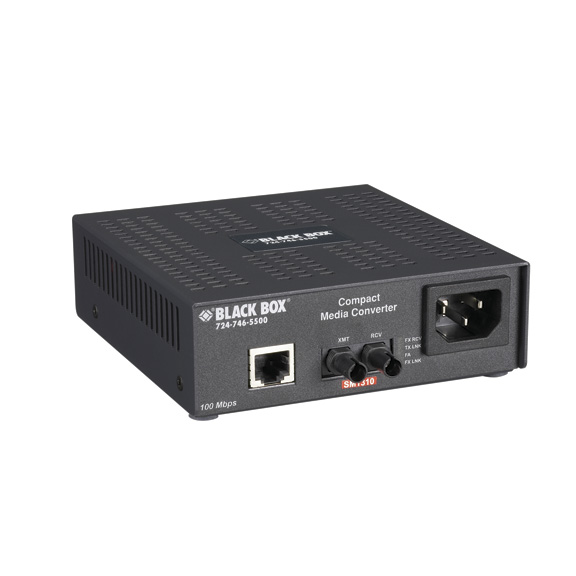

LHC005A-R4

Photo may show similar product

Other views

Compact Media Converter, 100BASE-TX/100BASE-LX, Single-Mode, 40 km (1310-nm), ST

Convert your 100-Mbps copper to fiber with these space-saving converters.

LHC005A-R4

Extended Double Diamond™ Warranty Available (3 Additional Year)

Product Highlights

  • Only 1U high, this converter is the ideal choice when space is at a premium.
  • Convert 100-Mbps copper UTP cable connections to duplex single-mode fiber connections.
  • This standalone unit fits on your desktop and in tight spaces.


  • Further Details

  • Automatic crossover/passthrough function on the UTP port. The converter figures out and adjusts internal termination for you!
  • Link fault detection features enable you to quickly isolate any breaks or problems on the copper or fiber segments.
  • When faults occur, diagnostic LEDs on each port alert you to location and type.
  • Internal autosensing power supply.
  • Select the Compact Media Converter based on the distance you need.

  • NOTE: Also available with SC connectors and in multimode versions.

    Approvals UL®
    Distance (Maximum) Full-duplex: 100BASE-TX link: 100 m (328 ft.);
    Fiber: 40 km (24.9 mi.)
    Fiber Type 1310-nm single-mode
    Operation Half- or full-duplex
    CE Approval Yes
    Indicators Fiber Receive, Twisted-Pair Link, FiberAlert, Fiber Link
    Power 95–240 VAC, 50–60 Hz, 0.1/0.5 A, internal autosensing
    Size 1.5"H x 4.7“W x 4.4"D (3.8 x 11.9 x 11.2 cm)
    Weight 2 lb. (0.9 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.

    Manuals

    • 100 Mbps Compact Media Converter
      Installation and User Guide (Dec-06)
    • 100 Mbps Compact Media Converter
      Installation and User Guide (Apr-06)

    Product Data Sheets

    Black Box Explains


    Double Diamond Warranty
    Extended Double Diamond™ Warranty Available (3 Additional Year)
    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The Compact Media Converter, 100BASE-TX/100BASE-LX, Single-Mode, 40 km (1310-nm), ST comes with a standard 6 Year warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    Compact Media Converter, 100BASE-TX/100BASE-FX, Multimode, 2 km (1300-nm), ST LHC001A-R4 $320.95

    Compact Media Converter, 100BASE-TX/100BASE-FX, Multimode, 2 km (1300-nm), SC LHC002A-R4 $320.95

    Compact Media Converter, 100BASE-TX/100BASE-LX, Single-Mode, 40 km (1310-nm), SC LHC006A-R4 $416.95

    Compact Media Converter, 100BASE-TX/100BASE-SX Multimode, 300 m (850-nm), ST LHC008A-R3 $273.95

    Compact Media Converter, 100BASE-TX/100BASE-SX Multimode, 300 m (850-nm), SC LHC009A-R3 $273.95

    Compact Media Converter, 100BASE-TX/100BASE-LX, Single-Mode, 80 km (1310-nm), ST LHC037A $442.95

    Compact Media Converter, 100BASE-TX/100BASE-LX, Single-Mode, 80 km (1310-nm), SC LHC038A $442.95



    Add to Cart

    Price: $416.95

    Quantity Available: 8

    Quantity

    Warranty

    Total

    Shipping Info

    In Stock - orders received before 5PM ET ship same day

    Weight: 2.156 lbs.
    HxWxD: 2.25 x 7.5 x 10.25 in.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.
