Networking > Media Converters

click photo to enlarge

LGC5142A-R2

Photo may show similar product

Other views

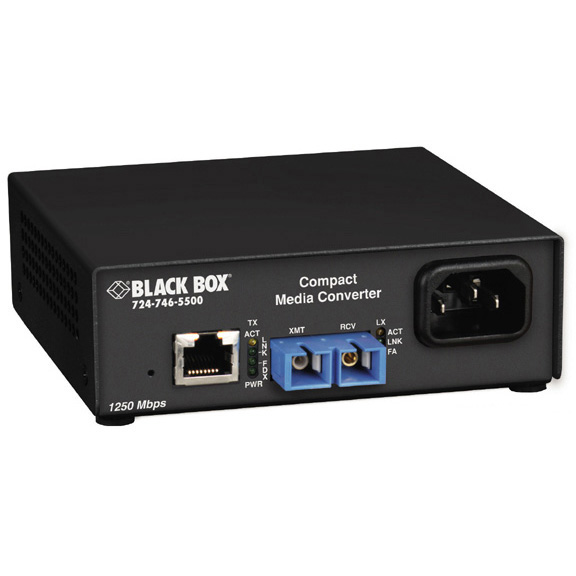

Compact Media Converter, 1000BASE-TX to 1000BASE-X, 40 km, Single-Strand, Single-Mode, 1550-nm TX/1310-nm RX, SC

The fiber optic media converter that supports Gigabit speeds.

LGC5142A-R2

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Copper-to-fiber conversion with support for speeds up to 1.25 Gbps.
  • Plug-and-play ease of installation.
  • LinkLoss™, FiberAlert™, and Link Fault Detection.

  • Description

    Compact Media Converter, 1000BASE-TX to 1000BASE-X, 40 km, Single-Strand, Single-Mode, 1550-nm TX/1310-nm RX, SC


    Quick Facts

  • Copper-to-fiber conversion with support for speeds up to 1.25 Gbps.
  • Plug-and-play ease of installation.
  • LinkLoss™, FiberAlert™, and Link Fault Detection.

  • Further Details

  • Small, rugged chassis installs where space is limited.
  • Automatic crossover/passthrough on UTP side.
  • Universal power supply.

    Use our Layer 1 Gigabit Media Converters to link 1000BASE-TX twisted-pair segments to 1000BASE-LX fiber optic segments in a Gigabit Ethernet network.

    The single-strand Compact Media Converter must be used in a matched pair. LGC5142A-R2 pairs with LGC5141A-R2. Questions? Contact our FREE Tech Support.

    This product works with:
  • Ceramic Terminated Multimode Fiber Optic Cable, SC–SC (EFN110)
  • Single-Mode Duplex Fiber Optic Cable, SC–SC (EFN310)
  • GigaBase® 350 CAT5e, 350-MHz Patch Cable, 4-Pair (EVNSL85, etc.)
  • Questions? Contact our FREE Tech Support.


    Technical Specifications for Compact Media Converter, 1000BASE-TX to 1000BASE-X, 40 km, Single-Strand, Single-Mode, 1550-nm TX/1310-nm RX, SC :

    Standards — IEEE 802.3ab 1000BASE-T, IEEE 802.3z 1000BASE-SX/1000BASE-LX
    Distance (Maximum) — 40 km (24.8 mi.)
    CE Approval Yes
    Connectors — (1) SC
    Indicators — LEDs: (1) Power, (1) FX Receive, (1) TX Link, (1) Fiber Alert, (1) FX Link
    Power — 100/240 ± 10% VAC, 50/60 Hz, internal, autosensing
    This product works with:
  • Ceramic Terminated Multimode Fiber Optic Cable, SC–SC (EFN110)
  • Single-Mode Duplex Fiber Optic Cable, SC–SC (EFN310)
  • GigaBase® 350 CAT5e, 350-MHz Patch Cable, 4-Pair (EVNSL85, etc.)
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Compact Media Converter, 1000BASE-TX to 1000BASE-X, 40 km, Single-Strand, Single-Mode, 1550-nm TX/1310-nm RX, SC :


    Connect your Compact Media Converter, 1000BASE-TX to 1000BASE-X, 40 km, Single-Strand, Single-Mode, 1550-nm TX/1310-nm RX, SC with:

    Accessory: EFN310-003M-SCSC

    SC–SC, PVC, 3-m

    Single-Mode, 9.0-Micron Duplex Fiber Optic Cable, SC–SC, PVC, 3-m

    Accessory: EFN110-003M-SCSC

    SC–SC, Duplex, Riser, 3-m (9.8-ft.)

    Premium Ceramic, Multimode, 62-5-Micron Fiber Optic Patch Cables, SC–SC, Duplex, Riser, 3-m (9.8-ft.)

    Accessory: EVNSL85-0010

    GigaBase 350 CAT5e Patch Cable, Snagless Boots, Beige, 10-ft. (3.0-m)

    GigaBase 350 CAT5e Patch Cable, Snagless Boots, Beige, 10-ft. (3.0-m)
