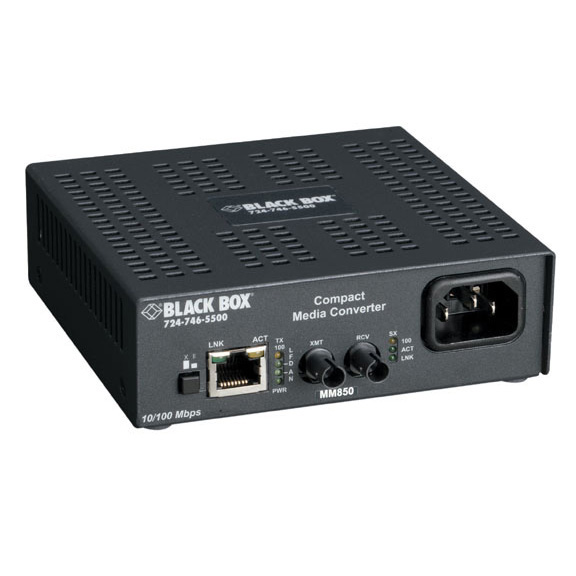

LMC7001A-R4

Photo may show similar product

Other views

Compact Media Converter, 10/100BASE-TX to 100BASE-SX Autosensing, ST

Plan ahead: Convert 10BASE-T to fiber now, 100BASE-TX to fiber later.

LMC7001A-R4

Extended Double Diamond™ Warranty Available (3 Additional Year)

Product Highlights

  • 10-/100-Mbps autosensing on the copper port. That means you can convert either 10BASE-T to 10BASE-FL or or 100BASE-TX to 100BASE-SX with the same unit!
  • Universal 100-/240-VAC internal power supply. No need to mess with bulky AC/DC transformers.
  • Choose ST or SC connectors.


  • Further Details

  • Supports half- and full-duplex operation.
  • Link-Fault Detection for easy troubleshooting.
  • Front-panel LEDs monitor activity.
  • Three modes of operation.
  • Compact size for space-effective installation in virtually any location.

  • Connect 10-Mbps copper devices to your fiber-based cabling infrastructure, then upgrade to Fast Ethernet later.

    100BASE-SC uses the same wavelength as 10BASE-FL, allowing it to be backwards compatible. If the copper port is running 10BASE-T the fiber port will run 10BASE-FL. If the copper port runs 100BASE-TX the fiber will run 100BASE-SX.

    The Black Box® 10-/100-Mbps Autosensing Media Converter enables you to implement a 10-Mbps fiber network and migrate to 100 Mbps with a single unit. It's ideal for futureproofing your fiber-to-desktop applications. When you upgrade a workstation to 100 Mbps, for example, all you have to do is change the network interface card. No other replacements are required.

    This compact, 1U-high converter includes a 100-/240-VAC internal power supply and is available in multimode and single-mode versions with ST® or SC connectors. Choose multimode for shorter distances (up to 2 km [1.2 mi.]) and short-wave transmissions over 850-nm fiber in accordance with the 100BASE-FX standard.

    Our 10-/100-Mbps Autosensing Media Converter includes a Link-Fault Detection feature, which makes it much easier to detect faults. If a fault occurs, front-panel LEDs help you to isolate cable breaks. The converter also has a push button by the twisted-pair port for selecting a crossover workstation connection or a passthrough repeater/hub/switch connection.

    The media converter has three modes of operation:
  • PNP/Transparent, or autonegotiating, in which the converter configures automatically for 10 or 100 Mbps and half- or full-duplex.
  • Force-10, in which the unit acts as a regular 10BASE-T/10BASE-FL converter.
  • Force-100, in which the unit functions as a 100BASE-TX/100BASE-FX converter.

    The default operation mode is PNP/Transparent. Also, you must operate the media converter in this mode to take advantage of the Link-Fault Detection feature.

    This product works with:
  • CAT5 100-MHz Solid-Conductor Cable, 4-Pair, Straight-Pinned (EYN737MS)
  • Premium Ceramic, Multimode, 62.5-Micron Fiber Optic Patch Cable (EFN110)
    Questions? Contact our FREE Tech Support.

  • Fiber Cable Requirements Multimode duplex, 850 nm
    Full-Duplex Distance (Maximum) 2 km (1.2 mi.)
    Standards IEEE 802.3: 10BASE-T, 10BASE-FL; IEEE 802.3u: 100BASE-TX, 100BASE-SX
    CE Approval Yes
    Connectors LMC7001A-R4,(1) pair of ST, (1) RJ-45
    Indicators Twisted-pair and fiber ports: Link: On when link is established and all cables are connected; Act: Blinks when data is detected; 100: On when 100-Mbps data is detected;
    Twisted-pair ports also have: AN: On when PNP/Transparent mode is enabled; LFD: On when Link-Fault Detection is available (only in PNP/Transparent mode); PWR: On when unit has power
    Power 100/240 VAC (±10%), 50/60 Hz, 0.1/0.05 A
    Size 1.75"H (1U) x 4.7"W x 4.4"D (4.4 x 11.9 x 11.2 cm)
    Weight 1.3 lb. (0.6 kg)
    This product works with:
  • CAT5 100-MHz Solid-Conductor Cable, 4-Pair, Straight-Pinned (EYN737MS)
  • Premium Ceramic, Multimode, 62.5-Micron Fiber Optic Patch Cable (EFN110)
    Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.
