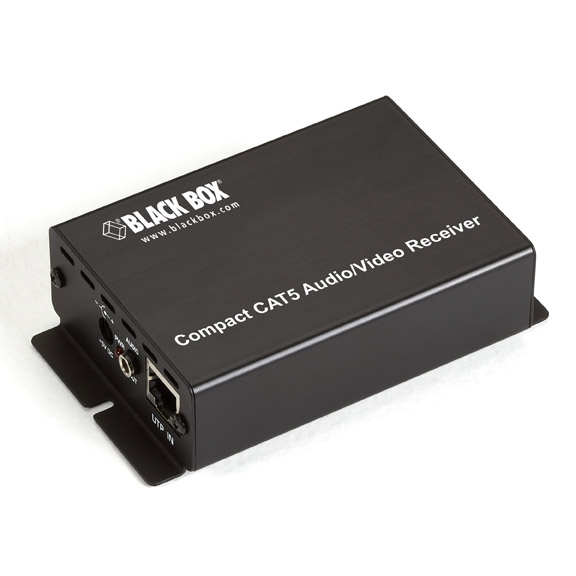

Compact CAT5 Audio/Video Receiver

Use one receiver for each remote station.

AC155A-R3

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Works with Compact CAT5 Audio/Video Splitters.
  • Order this receiver for each remote station. (You'll also need a splitter [AC154A-2 or AC154A-8] for the CPU end.)
  • Plug-and-play.
  • There's no software to install, and there are no switches to set.
  • Uses CAT5 cable (shielded CAT5 is recommended), so you may even be able to use it on the cabling you already have installed!


  • Description

    Compact CAT5 Audio/Video Receiver


    Quick Facts

  • Works with Compact CAT5 Audio/Video Splitters.
  • Order this receiver for each remote station. (You'll also need a splitter [AC154A-2 or AC154A-8] for the CPU end.)
  • Plug-and-play.
  • There's no software to install, and there are no switches to set.
  • Uses CAT5 cable (shielded CAT5 is recommended), so you may even be able to use it on the cabling you already have installed!

  • Further Details


    This product works with:
  • Compact CAT5 Audio/Video Splitters (AC154A-2, AC154A-8)
  • CAT5 Shielded Twisted Pair with Snagless Boots, Solid, 4-Pair, Plenum, (EVNSL71)
  • CAT5 Shielded Solid, 100-MHz Bulk Cables, 4-Pair (EVMSL70A, etc.)
  • Premium VGA Video Extension Cable, HD15, PVC, Straight Hoods, Male/Male (EVNPS05-MM)
    Questions? Contact our FREE Tech Support.


  • Technical Specifications for Compact CAT5 Audio/Video Receiver:

    Distance (Maximum) 750 ft. (228.6 m) over standard CAT5 cable
    Resolution (Maximum) 1280 x 1024 at refresh rates of 60-85 Hz
    CE Approval Yes
    Connectors (1) RJ-45, (1) HD15 F out, (1) 3.5-mm mini stereo jack
    Power 115 VAC/60 Hz, external; 230 VAC/50 Hz version on request
    Size 1.2"H x 4.2"W x 2.5"D (3 x 10.7 x 6.4 cm)
    Weight 0.6 lb. (0.3 kg)
    This product works with:
  • Compact CAT5 Audio/Video Splitters (AC154A-2, AC154A-8)
  • CAT5 Shielded Twisted Pair with Snagless Boots, Solid, 4-Pair, Plenum, (EVNSL71)
  • CAT5 Shielded Solid, 100-MHz Bulk Cables, 4-Pair (EVMSL70A, etc.)
  • Premium VGA Video Extension Cable, HD15, PVC, Straight Hoods, Male/Male (EVNPS05-MM)
    Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for Compact CAT5 Audio/Video Receiver:

    Manuals

    • Compact CAT5 Audio/Video Receiver Manual
      Manual for the AC155A-R3 and AC155AE-R3

    Product Data Sheets

    Application Diagrams


    Connect your Compact CAT5 Audio/Video Receiver with:

    Accessory: AC154A-2

    Compact CAT5 Audio/Video Splitter, 2-Channel

    Compact CAT5 Audio/Video Splitter, 2-Channel

    Accessory: EVNPS05-0003-FF

    Premium VGA Video Cable, PVC, 3-ft. (0.9-m)

    Premium VGA Video Extension Cable, Straight Hoods, Female/Female, 3-ft. (0.9-m)

    Accessory: EVNSL60

    CAT5 Shielded Twisted-Pair Cable (STP) with Snagless Boots, T568B, 4-Pair, RJ-45, Stranded, PVC, CMR, Riser, Gray, Custom Lengths

    CAT5 Shielded Twisted-Pair Cable (STP) with Snagless Boots, T568B, 4-Pair, RJ-45, Stranded, PVC, CMR, Riser, Gray, Custom Lengths
