SW179A

Photo may show similar product

Other views

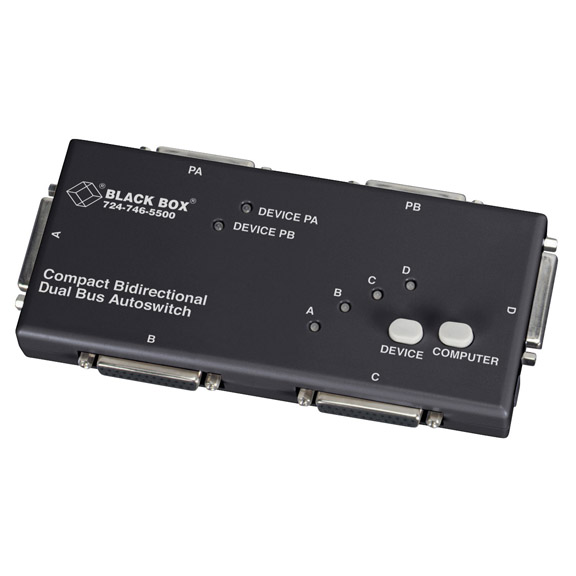

Compact Bidirectional Dual Bus AutoSwitch, 4-to-2

Give four users simultaneous access to two devices.

SW179A

Extended Double Diamond™ Warranty Available (3 Additional Year)

Product Highlights

  • Connect four users to two parallel devices.
  • Fully compatible with IEEE 1284, ECP/EPP, Centronics®, Byte, and Nibble modes.
  • Supports printers; scanners; Zip™, tape, and CD-ROM drives; digital cameras; and more.


  • Further Details

  • Automatically senses Bi-Tronics or Centronics printers.
  • Plug-and-play! Software included.
  • Operates in autolink or manual mode.
  • Built-in microprocessor provides real-time communication.
  • Data transfer rate up to 2 MBps.

  • The Bidirectional Dual Bus AutoSwitch, 4-to-2, from Black Box enables you to connect four computers to two IEEE 1284 Bi-Tronics printers or other parallel devices. The dual bus architecture features two independent channels for simultaneous access to parallel devices and file transfer. This switch works with DeskJet printers and multifunction machines, and supports Windows 3.1/95/98, Windows NT®, Windows 2000, and Windows Me.

    This product works with:
  • Optional Power Supply (PS121-R2)
  • Enhanced Parallel Port Cables (EQN200–EQN202)
    Questions? Contact our FREE Tech Support.

  • Distance From the interface: Up to 15 ft. (4.6 m);
    From the optional power supply: 15–50 ft. (4.6–15.2 m)
    Operating Systems Supported DOS, Windows 3.x/95/98/Me, Windows NT, and Windows 2000
    Transfer Rate (Maximum) 2 MBps
    CE Approval Yes
    Connectors (6) DB25 F
    Power From the interface or the optional power supply
    Size 1"H x 7.5"W x 3.6"D (2.5 x 19.1 x 9.1 cm)
    Weight 0.5 lb. (0.2 kg)
    This product works with:
  • Optional Power Supply (PS121-R2)
  • Enhanced Parallel Port Cables (EQN200–EQN202)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.

  • Accessory: EQN200-0010

    Enhanced Parallel Port Cable, DB25 Male/DB25 Male, 10-ft. (3.0-m)

    Enhanced Parallel Port Cable, DB25 Male/DB25 Male, 10-ft. (3.0-m)
