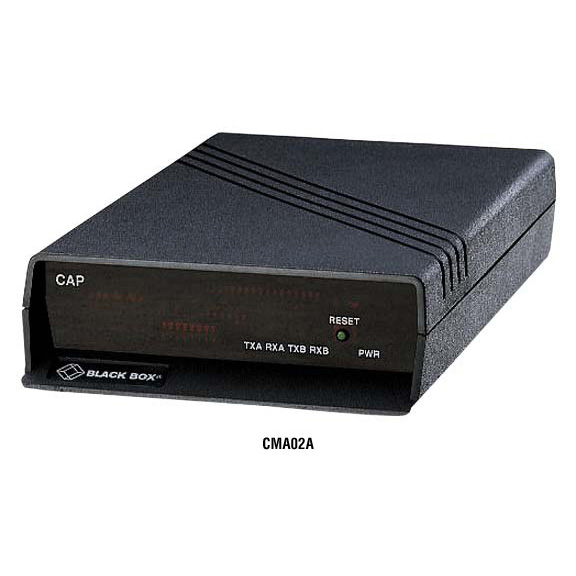

Communications Adapter Plus (CAP)

Overcome any async data incompatibility!


Extended Double Diamond™ Warranty Available (3 Additional Year)

Product Highlights

  • Supports word structure, character set, data rate, and transmission-mode conversions.
  • Supports hardware or software buffer flow control.

  • Further Details

    With the Communications Adapter Plus (CAP), you can make your two mismatched async serial devices communicate by translating between two mutually unintelligible protocols.

    Configure the CAP's two RS-232 ports individually via DIP switches for the greatest conversion flexibility you'll find anywhere.

    The CAP converts word structure (number of data bits, parity, and stop bits), character sets (ASCII, EBCDIC, Baudot, transcode, and ticker tape), and flow control (DTR/CTS, X-ON/X-OFF, ENQ/ACK) bidirectionally between half- and/or full-duplex modes and speeds from 45.5 bps to 38.4 kbps. The flow-control buffer is 32 KB, enabling even slow machines to talk to fast ones.

    Controls Front-panel Reset
    Flow Control Hardware, X-ON/X-OFF, ENQ/ACK, DTR/CTS
    Memory 8 KB EPROM, 32 KB RAM
    Processor Z-80 CPU
    Protocol Async only
    Speed 45.5 bps to 38.4 kbps
    CE Approval CMA02A
    Interface RS-232, configured as DTE
    Connectors (2) DB9 F
    Power 115 VAC, 60 Hz, 95 mA, 11 watts
    Size 1.8"H x 5.5"W x 8.5"D (4.6 x 14 x 21.6 cm)
    Weight 1 lb. (0.5 kg)
    NOTE: 230-VAC, 50-Hz power supply available. For details, contact our FREE Tech Support.

    These products work with:
  • 12-Card Rack for CAP (RM010-CAP)
  • 9-Pin to AT® Cable (EHM025-0010)
  • 9-Pin to Modem Cable (EHM024-0010)
  • DB9 Extension Cable with EMI/RFI Hoods (EDN12H)
  • AT Adapter (Serial) DB9 Male to DB25 Female (FA521A-R3)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.
