Cooling Solutions > High-Density Liquid Cooling


click photo to enlarge

CFCMS20KW230

Photo may show similar product

Other views

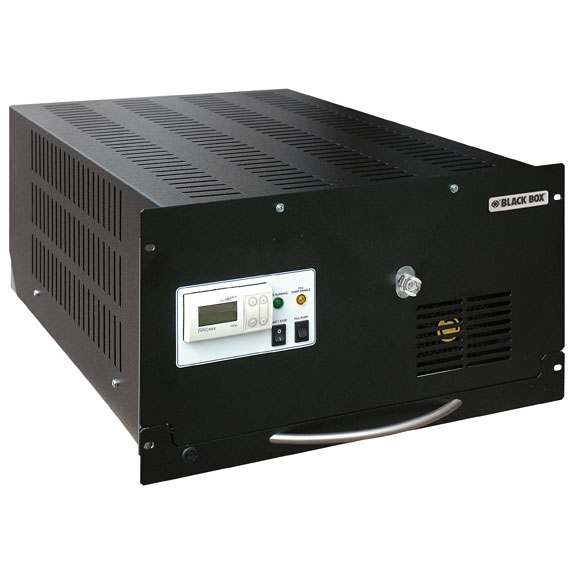

Cold Front Coolant Management System, 230 Volts, 50 Hz

Intelligently circulates liquid for the Cold Front cooling solution.

CFCMS20KW230

1 YEAR DoubleDiamond™ Warranty (Standard)

Product Highlights

  • Part of the Cold Front data center cooling solution.
  • Intelligently moves liquid through Heat-Transfer Doors.
  • Use with Heat-Transfer Doors to neutralize enclosure heat at the source.
  • The Cold Front system requires no reconfiguration of your enclosure or your data center.
  • Requires professional installation. For details and quotes, call 888-433-5049.


  • Further Details

  • Supports five times the computing power of air-cooled facilities.
  • Saves on energy bills. Reduces energy consumption of indoor cooling units by 50% or more!
  • Neutralizes heat at the source, returning cooled air into the data center and providing up to 20 kW of cooling.
  • Eliminates the need for hot-aisle/cold-aisle configurations—place your computing equipment where you want it.

  • Nothing cools like chilled water. Now you can harness the cooling power of liquid in your data center with Cold Front. Cold Front is the perfect solution for tightly packed server rooms or high-density enclosures. It works to sensibly cool a data center enclosure and lowers the total cost of ownership because it reduces both energy and space requirements.

    The average operating cost of data centers has grown three times faster than capital investment in new IT equipment. Factors for uncontrolled costs include cooling, equipment capital expense, inefficient designs, high installation costs, rising energy bills, and ongoing maintenance. So, how can you add value while meeting your cooling challenges?

    In typical data center installations, the infrastructure required to support perimeter or in-row cooling must be built in on Day One. Because the Cold Front solution can be installed quickly and easily and requires no pressurized raised floors, air plenums, exhaust chimneys, etc., you can build as you grow. Cold Front enables you to add units as you add computing, so you don't pay for infrastructure that you don't need.

    The Cold Front cooling solution uses Heat-Transfer Doors in a closed-loop circulatory system with a Coolant Management System that monitors the temperature and pressure conditions, increasing and decreasing flow as conditions change in the data center. This approach offers data centers consistent and scalable cooling to meet their changing demands.

    Coolant Management System
    The advanced Coolant Management System (CMS) works with enclosure-mounted Heat-Transfer Doors (CFD42UBF24, etc.) to keep data center equipment running cool and lower your overall energy consumption.

    On a primary loop, it attaches to your chilled water system or a dedicated chiller. On its secondary loop, the system connects to the Heat-Transfer Doors, providing up to 20 kW of cooling capacity.

    The system maintains the isolated secondary loop supply temperature above the dew point of the data center, preventing condensation and ensuring 100% sensible cooling.

    The system does this by monitoring the temperature and pressure conditions and increases and decreases in flow as conditions change in your data center. Heat removed by connected Heat-Transfer Doors is then ejected to the chilled water supply by using a stainless steel plate heat exchanger.

    What's more, the system's controller provides intelligent monitoring, interfacing with building management systems and Web management tools for high reliability. The versatile Coolant Management System features redundant variable speed pumps, actuators, and control valves to maximize system availability.

    This model is a 6U-high rackmount system that supports up to 20 kW of cooling capacity and provides a cost-effective way to support one or two Heat-Transfer Doors. Larger 260 kW models are also available.
    Call for more information.
    Cold Front must be professionally installed. For details and pricing, call a Black Box Cold Front expert at 888-433-5049.



    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.

    Accessory: CFD42UBF24

    Cold Front Heat-Transfer Door, 42U, 24" Wide, Bottom Feed

    Cold Front Heat-Transfer Door, 42U, 24" Wide, Bottom Feed

    Accessory: CFD47UBF24

    Cold Front Heat-Transfer Door, 47U, 24" Wide, Bottom Feed

    Cold Front Heat-Transfer Door, 47U, 24" Wide, Bottom Feed

    Accessory: CFD42UTF24

    Cold Front-Heat Transfer Door, 42U, 24" Wide, Top Feed

    Cold Front-Heat Transfer Door, 42U, 24" Wide, Top Feed

    Accessory: CFD47UTF24

    Cold Front Heat-Transfer Door, 47U, 24" Wide, Top Feed

    Cold Front Heat-Transfer Door, 47U, 24" Wide, Top Feed

    Accessory: CFD42UTF29

    Cold Front Heat-Transfer Door, 42U, 29" Wide, Top Feed

    Cold Front Heat-Transfer Door, 42U, 29" Wide, Top Feed

    Accessory: CFD47UTF29

    Cold Front Heat-Transfer Door, 47U, 29" Wide, Top Feed

    Cold Front Heat-Transfer Door, 47U, 29" Wide, Top Feed

    Accessory: CFD42UBF29

    Cold Front Heat-Transfer Door, 42U, 29" Wide, Bottom Feed

    Cold Front Heat-Transfer Door, 42U, 29" Wide, Bottom Feed

    Accessory: CFD47UBF29

    Cold Front Heat-Transfer Door, 47U, 29" Wide, Bottom Feed

    Cold Front Heat-Transfer Door, 47U, 29" Wide, Bottom Feed

    Double Diamond Warranty
    1 YEAR DoubleDiamond™ Warranty (Standard)
    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The Cold Front Coolant Management System, 230 Volts, 50 Hz comes with a standard 1 Year warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    You can find this product in the following subcategory(s)


    Call for Pricing

    On Back Order

    To customize your order, please call

    1-800-316-7107.


    We answer in 30 seconds.

    Please Note: Once ordered, this product cannot be cancelled or returned for credit.

    Shipping Info

    Weight: 136 lbs.
    HxWxD: 35 x 19 x 18.5 in.
