Cabinets & Racks > Wallmount & Specialty Cabinets


click photo to enlarge

RMW5100AF

Photo may show similar product

Other views

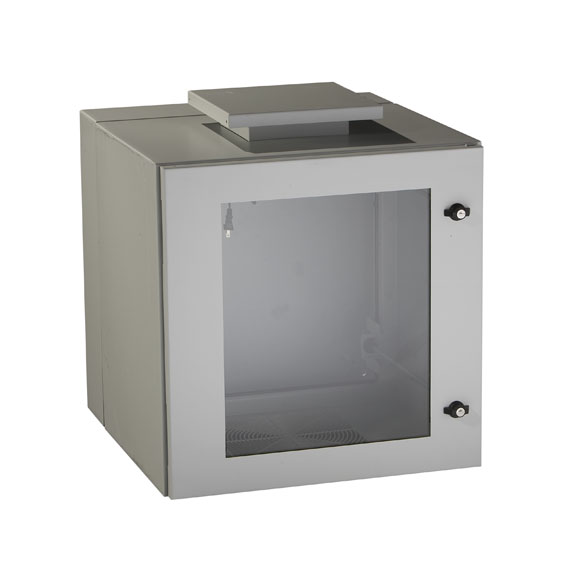

ClimateCab NEMA 12 Wallmount Cabinet with Fan, Beige, Double-Hinged

This secure wallmount cabinet features a built-in fan for ventilation.

RMW5100AF

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Top mounted 6-inch fan provides airflow to help dissipate heat generated by your equipment.
  • NEMA 12 rated for protection against falling dirt, circulating dust, lint, and debris, and dripping or splashing liquids in indoor environments.
  • Includes one set of standard 19" rails with 12-24 tapped mounting holes.


  • Description

    ClimateCab NEMA 12 Wallmount Cabinet with Fan, Beige, Double-Hinged


    Quick Facts

  • Top mounted 6-inch fan provides airflow to help dissipate heat generated by your equipment.
  • NEMA 12 rated for protection against falling dirt, circulating dust, lint, and debris, and dripping or splashing liquids in indoor environments.
  • Includes one set of standard 19" rails with 12-24 tapped mounting holes.

  • Further Details

  • Air filters on the bottom of the unit can be easily removed for cleaning without opening the cabinet.
  • Scratch-resistant safety glass window for easy viewing of indicators.
  • Shroud protects the cabinet and its fan from falling debris or dripping water.
  • Fully-welded body and door construction.
  • Seamless door gasket keeps out dust and contaminants.
  • Door lock with two keys.
  • Plenum rated.
  • Robust 12-gauge frame and 14-gauge sides and doors.
  • Go green — Save energy and money by cooling only the cabinet rather than a whole room or IT center.

  • When you need to install rackmount equipment in areas where you need protection from the elements, but temperature control is not an issue, the ClimateCab NEMA 12 Wallmount Cabinet is your answer. It's sealed against dripping water and dust.

    On this double-hinged model, the cabinet swings away from a rear door, enabling access to the rear of your equipment. Also available is a single-hinged model (RMW5120AF) in which only the front door opens.


    Technical Specifications for ClimateCab NEMA 12 Wallmount Cabinet with Fan, Beige, Double-Hinged:

    Construction Body: Welded 14-gauge steel;
    Front Door: 14-gauge steel with safety glass window;
    Back Door: 14-gauge steel
    Rack Units 12U
    Size 24"H x 24"W x 24"D (61 x 61 x 61 cm)
    Power 115-VAC, 50-60 Hz, standard NEMA 15 A plug internal to the cabinet (5-15P)
    Weight Capacity 100 lb. (45.4 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ClimateCab NEMA 12 Wallmount Cabinet with Fan, Beige, Double-Hinged:


    Connect your ClimateCab NEMA 12 Wallmount Cabinet with Fan, Beige, Double-Hinged with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A warranty is included.

    Extended 1 Year Warranty Available


    Protect your purchase with an additional 1 Year Double Diamond™ warranty!
    Cost: $110.00

    Extended 3 Year Warranty Available


    Protect your purchase with an additional 3 Year Double Diamond™ warranty!
    Cost: $219.99

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most of our products come with a one- or two-year warranty. Some products—such as copper cables, manual switches, cabinets, and racks—are even guaranteed for life!

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product* for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! ?
    Tech Support Hotline 100% FREE! $$$

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    ClimateCab NEMA 12 Wallmount Cabinet with Fan, Beige, Single-Hinged RMW5120AF $999.95

    You can find this product in the following subcategory(s)


    Add to Cart

    Price: $1,099.95

    Quantity Available: 9

    Quantity

    Warranty

    Total

    Shipping Info

    In Stock - orders received before 5PM ET ship same day

    Weight: 110 lbs.
    HxWxD: 30.5 x 28.75 x 30 in.
