Cabinets & Racks > Full Size IT Cabinets

click photo to enlarge

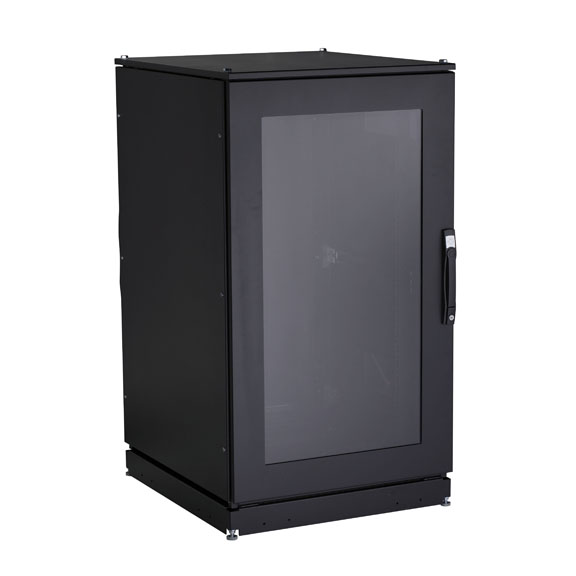

RM5005A

Photo may show similar product

Other views

ClimateCab NEMA 12 Server Cabinet with M6 Rails, 24U, 51"H x 28"W x 31.5"D

Climate-controlled protection enables you to install servers without additional cooling or costly infrastructure.

RM5005A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Save by cooling only the cabinet, not the entire room!
  • This ClimateCab NEMA 12 Server Cabinet has M6 rails with square holes for cage nuts.
  • Holds up to 1500 pounds (680 kg).
  • NEMA 12 rated for protection against falling dirt, circulating dust, lint, and debris, and dripping or splashing liquids in indoor environments.
  • Guaranteed for life!

  • Description

    ClimateCab NEMA 12 Server Cabinet with M6 Rails, 24U, 51"H x 28"W x 31.5"D


    Quick Facts

  • Save by cooling only the cabinet, not the entire room!
  • This ClimateCab NEMA 12 Server Cabinet has M6 rails with square holes for cage nuts.
  • Holds up to 1500 pounds (680 kg).
  • NEMA 12 rated for protection against falling dirt, circulating dust, lint, and debris, and dripping or splashing liquids in indoor environments.
  • Guaranteed for life!

  • Further Details

  • An AC unit (sold separately) mounts on the side of the ClimateCab cabinet. Installation takes about five minutes.
  • Fully-welded 12-gauge steel frame holds up to 1500 pounds (680 kg).
  • Three-point locking handles on front and rear doors.
  • Features standard 19" rails with M6 mounting holes.
  • Includes casters and levelers.
  • Rack angles are adjustable front to rear.
  • Fully gasketed openings, including a gland plate in the base, help to protect your devices from dust and other contaminants.
  • Safety glass window in front door.

  • The ClimateCab NEMA 12 Server Cabinet is your answer when you need to house servers but don’t have a cooling infrastructure in place. In smaller installations, you can save thousands by using a ClimateCab cabinet instead of installing a complete data center with a custom cooling system and raised floors. This 24U version of our full-sized ClimateCab is ideal when you have only a few servers to house.

    The ClimateCab is ideal for indoor use when you need to keep your servers outside a climate-controlled data center. It’s sealed against dripping water and dust, too. Sealed cable entries prevent air exchange. Add a 6000- or 8000-BTU ClimateCab Air-Conditioning Unit (sold separately) to keep your equipment comfortably cool. Just install your equipment, plug in the AC unit, and you have a complete, self-contained, self-supporting data center!

    The ClimateCab Air-Conditioning Unit mounts in the side of the cabinet in minutes with six screws and can easily be installed by one person. Mounting hardware, gaskets, and instructions are included.


    Technical Specifications for ClimateCab NEMA 12 Server Cabinet with M6 Rails, 24U, 51"H x 28"W x 31.5"D :

    Capacity — 1500 lb. (680 kg)
    Construction — Frame: Welded 12-gauge steel with integral struts;
    Front Door: 14-gauge steel with safety glass window;
    Back Door: 14-gauge steel;
    Sides: 14-gauge steel
    Rack Units — 24U
    Size — 51"H x 28"W x 31.5"D (129.5 x 71.1 x 80 cm)
    This product works with:
  • ClimateCab 6000 BTU Air-Conditioning Unit
  • ClimateCab 8500 BTU Air-Conditioning Unit
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
