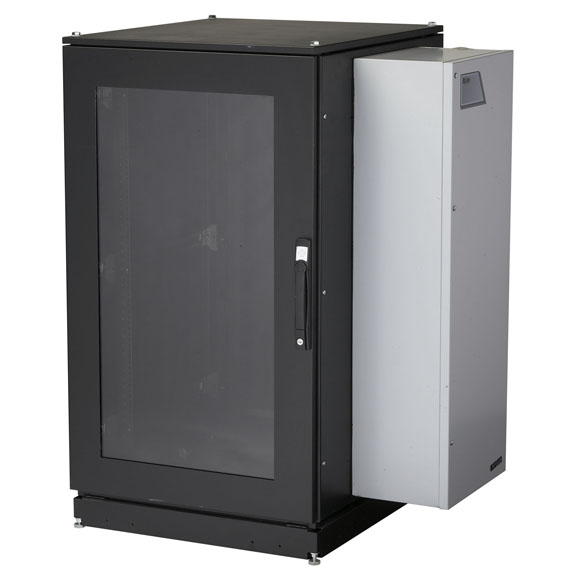

ClimateCab NEMA 12 Server Cabinet Kit with M6 Rails and 8000-BTU AC Unit, 24U, 51"H x 28"W x 31.5"D

Climate-controlled protection eliminates the need for additional cooling or costly infrastructure.

CCN24U8000M6

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Save by cooling only the cabinet, not the entire room!
  • Includes a 24U ClimateCab NEMA 12 Server Cabinet with M6 Rails (RM5005A) plus an 8000-BTU Air Conditioning Unit (RMAC8000).
  • Holds up to 1500 pounds (680 kg).
  • NEMA 12 rated for protection against falling dirt, circulating dust, lint, and debris, and dripping or splashing liquids in indoor environments.


    • Description

    ClimateCab NEMA 12 Server Cabinet Kit with M6 Rails and 8000-BTU AC Unit, 24U, 51"H x 28"W x 31.5"D


    Quick Facts

  • Save by cooling only the cabinet, not the entire room!
  • Includes a 24U ClimateCab NEMA 12 Server Cabinet with M6 Rails (RM5005A) plus an 8000-BTU Air Conditioning Unit (RMAC8000).
  • Holds up to 1500 pounds (680 kg).
  • NEMA 12 rated for protection against falling dirt, circulating dust, lint, and debris, and dripping or splashing liquids in indoor environments.

    • Further Details

  • Included AC unit mounts on the side of the ClimateCab cabinet. Installation takes about five minutes.
  • Fully welded 12-gauge steel frame holds up to 1500 pounds (680 kg).
  • Three-point locking handles on front and rear doors.
  • Features standard 19" rails with 12-24 tapped holes.
  • Includes casters and levelers.
  • Rack angles are adjustable front to rear.
  • Fully gasketed openings, including a gland plate in the base, help to protect your devices from dust and other contaminants.
  • Safety glass window in front door.

    • The ClimateCab NEMA 12 Server Cabinet is your answer when you need to house servers or other equipment but don’t have a cooling infrastructure in place. In smaller installations, you can save thousands by using a ClimateCab cabinet instead of installing a complete data center with a custom cooling system and raised floors.

    ClimateCab is sealed against dripping water and dust, too. Sealed cable entries prevent air exchange. The 8000-BTU ClimateCab Air Conditioning Unit (included) keeps your equipment comfortably cool. The ClimateCab is ideal for indoor use when you need to keep your servers outside a climate-controlled data center. Just install your equipment, plug in the AC unit, and you have a complete, self-contained, self-supporting data center!

    The ClimateCab 8000-BTU Air-Conditioning Unit helps to control the temperature inside your ClimateCab by removing the heat buildup created by hot network devices. This unit uses closed-loop cooling in which the clean air inside the cabinet is kept separate from the ambient air in order to protect delicate components from humidity, dust, and other contaminants.

    The ClimateCab Air-Conditioning Unit mounts in the side of the cabinet in minutes with six screws and can easily be installed by one person.

    What’s included
  • ClimateCab NEMA 12 Server Cabinet with M6 Rails (RM5005A)
  • Air conditioning unit (RMAC8000)
  • Mounting hardware
  • Gaskets
  • Instructions


    • Technical Specifications for ClimateCab NEMA 12 Server Cabinet Kit with M6 Rails and 8000-BTU AC Unit, 24U, 51"H x 28"W x 31.5"D:

    Capacity — 1500 lb. (680 kg)
    Construction — Frame: Welded 12-gauge steel with integral struts;
    Front Door: 14-gauge steel with safety glass window;
    Back Door: 14-gauge steel;
    Sides: 14-gauge steel
    CE Approval — Yes
    RoHS — Yes
    Rack Units — 24U
    Power — 115 VAC, 50—60 Hz
    Size — 51"H x 28"W x 31.5"D (129.5 x 71.1 x 80 cm)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
