Cabinets & Racks > Cabinet Accessories

click photo to enlarge

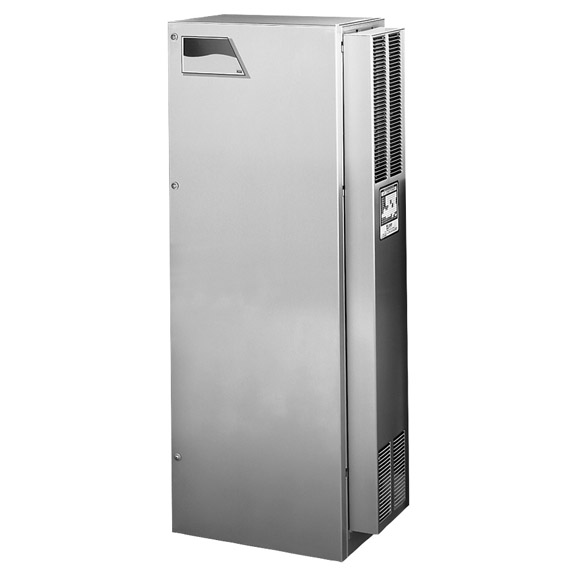

RMAC8000

Photo may show similar product

Other views

ClimateCab Air Conditioning Unit, 8000 BTU

Control heat and humidity in your ClimateCab Cabinet.

RMAC8000


One year Warranty

Product Highlights

  • Supplies 8000 BTUs of cooling to our 24U or 42U ClimateCab Data Cabinet or our ClimateCab Server Cabinet.
  • Cabinet air is kept separate from ambient air, virtually eliminating condensation and protecting delicate components from outside contaminants.
  • Uses R134A ozone-friendly, environmentally safe refrigerant.

  • Description

    ClimateCab Air Conditioning Unit, 8000 BTU


    Quick Facts

  • Supplies 8000 BTUs of cooling to our 24U or 42U ClimateCab Data Cabinet or our ClimateCab Server Cabinet.
  • Cabinet air is kept separate from ambient air, virtually eliminating condensation and protecting delicate components from outside contaminants.
  • Uses R134A ozone-friendly, environmentally safe refrigerant.

  • Further Details

  • Built by McLean, the largest custom manufacturer of cabinet AC units.
  • Constructed of high-grade 16-gauge stainless steel for protection in harsh environments.
  • Front cover hinges open for easy access to components.
  • Easy one-person installation.
  • Includes mounting hardware, gaskets, mounting template, and instructions.

  • An Air Conditioning Unit helps to control the temperature inside your ClimateCab by removing the heat buildup created by hot network devices. These units use closed-loop cooling in which the clean air inside the cabinet is kept separate from the ambient air. This protects delicate components from humidity, dust, and other contaminants.

    ClimateCab Air Conditioning Units come in two sizes to accommodate larger or smaller heat loads. If you need help choosing an Air Conditioning Unit to suit your requirements, contact our FREE Tech Support.

    The Air Conditioning Unit mounts in the side of the cabinet in minutes with six screws. Installation can be easily accomplished by one person. Mounting hardware, gaskets, and instructions are included.

    What’s included:
  • AC Unit with removable filter, 8000 BTU
  • (8) Mounting Bolts
  • (8) Steel washers
  • Gasket kit
  • Warranty card
  • User’s manual


  • Technical Specifications for ClimateCab Air Conditioning Unit, 8000 BTU:

    Construction — Painted mild steel exterior
    Environmental — Refrigerant: 134A, 12 oz. (341 g);
    Min./Max. Temp.: 50 to 131° F (10 to 55° C);
    BTU/Hr. @ 131° F/131° F* – 8500; amps @ 131° F/131° F – 16;
    BTU/Hr. @ 95° F/95° F* – 7500; amps @ 95° F/95° F – 12.9;
    Max. ambient temp.: – 131° F (55° C);
    dB rating= 71 DB
    Finish — Light gray polyester powder coating
    CE Approval — Yes
    RoHS — Yes
    Power — 115 VAC, 50/60 Hz
    Size — 43.3"H x 15.6"W x 10.3"D (110 x 40.1 x 26.2 cm)
    Weight — 135 lb. (61.2 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ClimateCab Air Conditioning Unit, 8000 BTU:


    Connect your ClimateCab Air Conditioning Unit, 8000 BTU with:

    Accessory: RM5000A

    ClimateCab NEMA 12 Server Cabinet with M6 Rails

    ClimateCab NEMA 12 Server Cabinet with M6 Rails

    Accessory: RM5005A

    ClimateCab NEMA 12 Server Cabinet with M6 Rails, 24U, 51"H x 28"W x 31.5"D

    ClimateCab NEMA 12 Server Cabinet with M6 Rails, 24U, 51"H x 28"W x 31.5"D
