Networking > Wireless

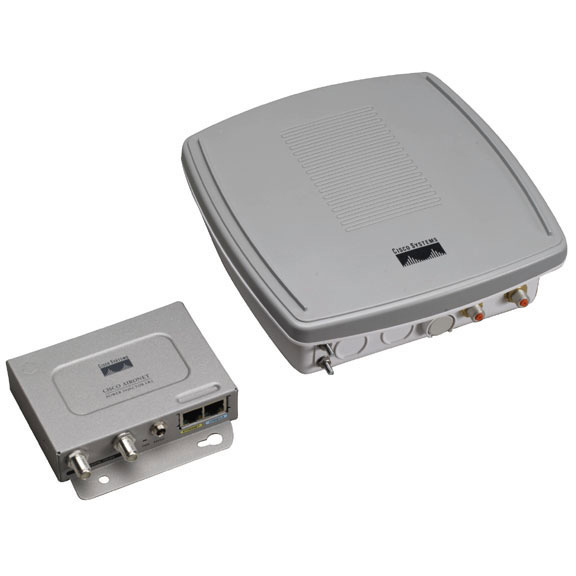

click photo to enlarge

AIR-BR1310G-A-K9

Photo may show similar product

Other views

Cisco Aironet 1300 Series Outdoor Access Point/Bridges

These three-in-one access point/bridges offer high-speed, cost-effective wireless connectivity.

AIR-BR1310G-A-K9


DEFAULT Warranty

Product Highlights

  • Operate three ways: as an access point, a wireless bridge, and a workgroup bridge.
  • Provide 2.4-GHz operation between multiple fixed or mobile networks.
  • Use in point-to-point and multipoint networks.


    • Description

    Cisco Aironet 1300 Series Outdoor Access Point/Bridge, 1310 with 13-dBi Integrated Patch Antenna


    Quick Facts

  • Operate three ways: as an access point, a wireless bridge, and a workgroup bridge.
  • Provide 2.4-GHz operation between multiple fixed or mobile networks.
  • Use in point-to-point and multipoint networks.

    • Further Details

  • Support both 802.11g and 802.11b devices.
  • Send data at a speedy 54 Mbps.
  • Designed for indoor and outdoor use, especially in harsh environments.

    The flexible wireless solution.
    Cisco Aironet 1300 Series Access Point/Bridges give you a multitude of networking possibilities. They provide high-speed, cost-effective 2.4-GHz building-to-building wireless connectivity in point-to-point networks or in multipoint bridging configurations.

    Standard operation.
    The 1300 Series is 802.11g compliant and backward compatible with 802.11b equipment, which means you can upgrade part of your network to 802.11g and still use your existing 802.11b equipment. It doesn’t require a license either.

    Configure three ways.
    Configure your system three ways: access point, wireless bridge, or workgroup bridge.

    As an access point, use it to support remote workgroup bridges and local wireless devices.

    In wireless bridge configurations, you can connect two remote networks, or connect a main LAN network to multiple remote, temporary, or mobile networks.

    When used as a workgroup bridge, it provides a wireless connection for remote wired devices to an access point or a bridge.

    Neither rain, nor sleet, nor snow...
    This system is built for use indoors and outdoors. It’s particularly well-suited to harsh environments because it withstands humidity, extended temperature ranges, and extreme weather conditions. It does not require an Ingress Protection (IP) or NEMA enclosure.

    Simplified management.
    Easily integrate the 1300 Series with your wired network via the Cisco Structured Wireless Area Network (SWAN). Manage it through Cisco IOS® software, SNMP, or a Web-based browser.

    Top security.
    The Cisco Wireless Security Suite provides robust wireless security services that closely parallel the security available in a wired LAN. It also provides advanced features such as Fast Secure Layer 2 Roaming, QoS, and VLANs.

    A multitude of uses.
    Ideal for building wide-area and metropolitan networks. Use it in:
    • Campus networks for businesses, education, and health care.
    • Mobile networks for public transportation, public safety, and governments.
    • Outdoor public access in hotels, airports, city blocks, and town centers.
    • Temporary networks such as short-term office leases, temporary buildings, tent sales, etc.

    Choose from two models.
    The model with the integrated antenna (AIR-BR1310G-A-K9) features a radio and high-gain patch antenna that supports point-to-point links or nonroot nodes of point-to-point networks.

    The model with RP-TNC Type Connector (AIR-BR1310G-A-K9-R) is for use with omnidirectional, sector, or high-gain dish antennas.

    The roofmount kit (AIR-ACCRMK1300=) can be used for mounting either access point/bridge outdoors. The wallmount kit (AIR-ACCWAMK1300=) is for indoor use only. Both kits are sold separately.


    • Technical Specifications for Cisco Aironet 1300 Series Outdoor Access Point/Bridges:

    Antenna — Integrated: 13-dBi patch array;
    External: 5.2- and 12-dBi omnidirectional; 9-dBi patch; 10- and 13.5-dBi yagi; 14-dBi sector; 21-dBi dish
    Environment — Operating Temperature: -22 to +131° F (-30 to +55° C);
    Storage Temperature: -40 to +185° F (-40 to +85° C);
    Humidity: 0 to 90% condensing;
    Vibration: SAE J1455;
    Environmental Testing Compliance: NEMA 4 enclosure rating compliant
    Frequency — 2.4–2.497 GHz
    Modulation — IEEE 802.11b: Direct Sequence Spread Spectrum (DSSS), Complementary Code Keying (CCK);
    IEEE 802.11g: Orthogonal Frequency Division Multiplex (OFDM)
    Nonoverlapping Channels — 3
    Radio Output Power — 100, 50, 30, 20, 5, or 1 mW at 1, 2, 5.5, and 11 Mbps;
    30, 20, 10, 5, or 1 mW at 6, 9, 12, 18, 24, 48, and 54 Mbps
    Radio Type Approvals — FCC Parts 15.247, 15.205, 15.209;
    FCC Bulletin: OET-65C;
    Canada: RSS-102, RSS-210;
    Japan: ARIB-STD-33B, -66;
    Europe: EN300.328
    Range — Access Point/Bridge Antenna Configuration: Point-to-point with integrated 13-dBi antenna: 14 mi. (22.5 km) at 1 Mbps, 11.1 mi. (17.9 km) at 5.5 Mbps, 9.2 mi. (14.8 km) at 11 Mbps; Point-to-multipoint with 5.2-dBi omnidirectional or 13-dBi integrated antennas: 9.4 mi. (15.1 km) at 1 Mbps, 5.7 mi. (9.2 km) at 5.5 Mbps, 3.6 mi. (5.8 km) at 11 Mbps;
    Bridge Antenna Configuration: Point-to-point with 13-dBi integrated antenna: 4.3 mi. (6.9 km) at 6 Mbps, 2.4 mi. (3.9 km) at 18 Mbps, 1.1 mi. (1.8 km) at 36 Mbps, 0.6 mi. (1.0 km) at 54 Mbps; Point-to-multipoint with 5.2-dBi omnidirectional or 13-dBi integrated antennas: 1.6 mi. (2.6 km) at 6 Mbps, 0.9 mi. (1.4 km) at 18 Mbps, 0.4 mi. (0.6 km) at 36 Mbps, 0.2 mi (0.3 km) at 54 Mbps
    Speed — IEEE 802.11g-compliant radio: 100, 50, 30, 20, 5, or 1 mW at 1, 2, 5.5, and 11 Mbps; 30, 20, 10, 5, or 1 mW at 6, 9, 12, 18, 24, 48, and 54 Mbps
    Subcarrier Modulation — CCK (5.5 and 11 Mbps); BPSK (1, 6, and 9 Mbps);
    QPSK (2, 12, and 18 Mbps;
    16-QAM (24 and 36 Mbps);
    64-QAM (48 and 54 Mbps)
    CE Approval — Yes
    Connectors — Power Injector dual-coax ports: (2) F-Type; Antenna: (2) reverse TNC
    Indicators — (4) LEDs: Radio traffic, Ethernet traffic, Status, and Installation and Alignment Mode
    Power — Input Voltage: 48 VDC nominal, 53 VDC maximum;
    Consumption: 13 W typical
    Size — Access Point/Bridges: 8"H x 8.1"W x 3.1"D (20.3 x 20.6 x 7.8 cm)
    Weight — 2.5 lb. (1.3 kg)
    Warranty — 1 year
    These products work with:
    • Cisco Aironet Power Injectors for 1300 Series Outdoor Access Point/Bridge (AIR-PWR INJ-BLR2=)
    • Cisco Aironet 1300 Series Mounting Kits (AIR-ACCRMK1300=, AIR-ACCWAMK1300=)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Cisco Aironet 1300 Series Outdoor Access Point/Bridges:


    Connect your Cisco Aironet 1300 Series Outdoor Access Point/Bridges with:
