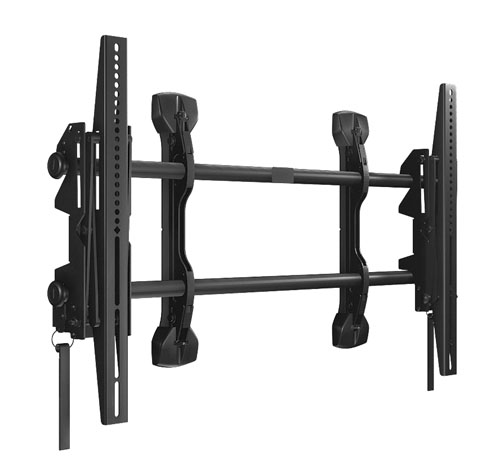

Chief FUSION Wall Mount, Pull-Out, for 37"–63" Displays

A pull-out 37"–63" display mount for easy access—and featuring post-installation leveling and aligning.

LSMVU

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • For mounting and easily moving and accessing a range of larger flat-panel screens (37"–63").
  • Great for maintaining and troubleshooting one screen—including single-screen recessed panel—or multiple panels in a video wall configuration.
  • Quick to install. Designed to eliminate barriers like inconvenient stud location and unlevel rooms.


  • Description

    Chief FUSION Wall Mount, Pull-Out, for 37"–63" Displays


    Quick Facts

  • For mounting and easily moving and accessing a range of larger flat-panel screens (37"–63").
  • Great for maintaining and troubleshooting one screen—including single-screen recessed panel—or multiple panels in a video wall configuration.
  • Quick to install. Designed to eliminate barriers like inconvenient stud location and unlevel rooms.

  • Further Details

  • Supports use with a 2 x 2 video wall matrix or larger.
  • Features centerless shift for post-installation lateral centering—slide screens apart or together for easy maintenance and perfect alignment.
  • Enables you to fine-tune plumb adjustment so screens are perfectly vertical. Compensate for walls that aren't perfectly flat!
  • Also has built-in cable stand for easy under-screen access.
  • Audible click tells you when your screen safely engages with the mount.
  • Integrated security for your expensive displays. Just add a padlock.
  • Includes a custom hardware kit.

    Save time and simplify the hanging of LCDs and other displays in your digital signage, videoconferencing, boardroom, and monitoring applications. With its pull-out screen, the mount is great for getting behind screens in hard-to-reach installations—even on the centermost screen of a video wall matrix.

    Designed to meet the challenges of installers, this Chief® FUSION Wall Mount offers:
  • Centerless™ post-installation lateral shift, left or right.
  • ControlZone™ height and roll adjustment—This industry-first feature enables post-installation fine-tuning of height and leveling for a seamless installation.
  • Plumb adjustment —With the simple turn of a bolt, you can adjust screen away from or toward the wall.
  • ClickConnect™ tool-less latching—When the screen safely engages with the mount, you hear an audible click Use the built-in cable stand to gain easy access under the screen.


  • Technical Specifications for Chief FUSION Wall Mount, Pull-Out, for 37"–63" Displays:

    Extension (Maximum) 7" (17.8 cm) or 10.7" (27.2 cm) total from the wall
    Depth 3.7" (9.4 cm)
    Mounting Pattern (Maximum) Height: 19.8" (50.5 cm);
    Width: 29.9" (76 cm)
    Weight Capacity 150 lb. (68 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Chief FUSION Wall Mount, Pull-Out, for 37"–63" Displays:


    Connect your Chief FUSION Wall Mount, Pull-Out, for 37"–63" Displays with:
