Digital Signage > A/V Furniture

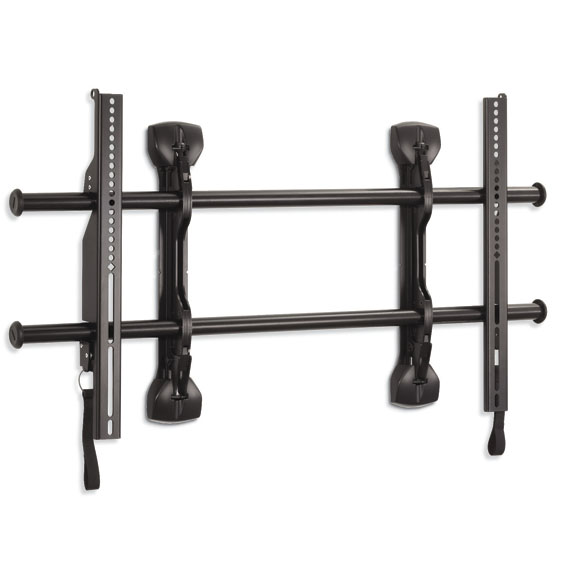

click photo to enlarge

LSMU

Photo may show similar product

Other views

Chief FUSION Wall Mount, Fixed Micro-Adjustable, for 37"–63" Displays

A 37"–63" fixed display mount featuring precise, post-installation adjustment and leveling.

LSMU


One year Warranty

Product Highlights

  • Low-profile, universal wall mounting for a range of flat-panel screen sizes (37"–63").
  • Features centerless shift for post-installation lateral centering.
  • Quick to install. Designed to eliminate barriers like inconvenient stud location and unlevel rooms.

  • Description

    Chief FUSION Wall Mount, Fixed Micro-Adjustable, for 37"–63" Displays


    Quick Facts

  • Low-profile, universal wall mounting for a range of flat-panel screen sizes (37"–63").
  • Features centerless shift for post-installation lateral centering.
  • Quick to install. Designed to eliminate barriers like inconvenient stud location and unlevel rooms.

  • Further Details

  • Audible click tells you when your screen safely engages with the mount.
  • Also has built-in cable stand for easy under-screen access.
  • Offers multiple installation options, including, including 16", 20", and 24" centers.
  • Integrated security for your expensive displays. Just add a padlock.
  • Includes a custom hardware kit.

    Save time and simplify the hanging of LCDs and other displays in your digital signage, videoconferencing, boardroom, and monitoring applications.

    Designed to meet the challenges of installers—particularly those who need to quickly adjust a screen and the mount itself after installation—this Chief® FUSION Wall Mount offers:
  • Centerless™ lateral shift—Get up to 17.5" (44.5 cm) of post-installation lateral shift (8.75" [22.2 cm] left/right of uprights).
  • ControlZone™ height and roll adjustment—This industry-first feature enables post-installation fine-tuning of height and leveling with the simple insertion of an Allen key into the ports at the top of the wall plate uprights. Your adjustments are applied to the entire configuration, not just to the screen.
  • ClickConnect™ tool-less latching—When the screen safely engages with the mount, you hear an audible click. Use the built-in cable stand to gain easy access under the screen.


  • Technical Specifications for Chief FUSION Wall Mount, Fixed Micro-Adjustable, for 37"–63" Displays:

    Depth from Wall — 1.96" (5 cm)
    Height Adjustment — +/- 0.5" (1.27 cm)
    Lateral Shift (Maximum) — 17.5" (44.5 cm)
    Mounting Pattern (Maximum) — Height: 19.9" (50.6 cm);
    Width: 34.6" (87.9 cm)
    Stud Mounting — 16", 20", 24"
    Size — 16.5"H x 34.44"W x 1.96"D (41.9 x 87.5 x 5 cm)
    Weight Capacity — 200 lb (90.7 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Chief FUSION Wall Mount, Fixed Micro-Adjustable, for 37"–63" Displays:


    Connect your Chief FUSION Wall Mount, Fixed Micro-Adjustable, for 37"–63" Displays with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A One year warranty is included.

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    The most complete product warranty exclusively from Black Box

    The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most products come with a one- or two-year warranty. Some products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life! Standard Warranty features are as follows:

    Worry-Free Purchases

    If your new Black Box® brand products are accidentally damaged, you're covered with this no-questions asked warranty. FREE

    Coverage

    Double Diamond™ is the standard warranty that comes with your new Black Box® brand product. Most products come with a one- or two-year warranty.

    Lifetime Guarantees

    Many products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life.

    Fast Service

    During the warranty period, Black Box® Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Extra Coverage

    Extend your warranty or protect a previously purchased Black Box® brand product* for an additional year for only 10% of the current retail price! And when you do, we give you the second year of extended coverage free! FREE Tech Support Hotline. No cost. No contracts. No kidding!

    No-Risk 45-Day Return Policy

    If it's not right, send it back.
    (Excludes custom built products)

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! Forget It.
    Tech Support Hotline 100% FREE! $$$
