Infrastructure Hardware > Jacks & Wallplates

click photo to enlarge

FM364

Photo may show similar product

Other views

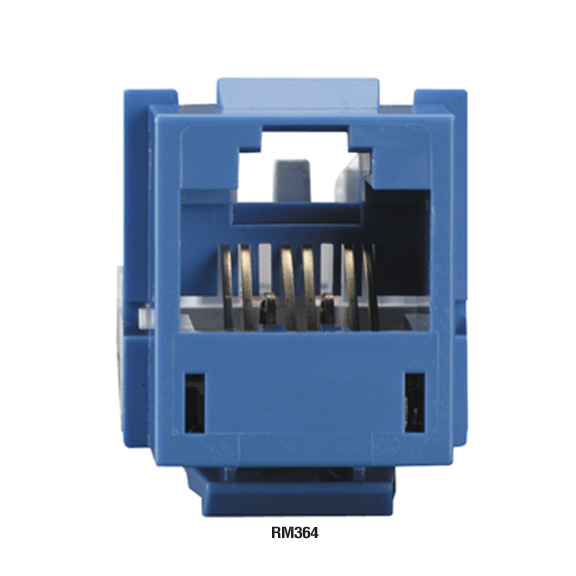

Category 3 Jacks, Blue

Jacks for CAT3 systems.

FM364


Lifetime Warranty

Product Highlights

  • Meet CAT3 standards.
  • Feature universal wiring.
  • The standard keystone design enables mounting in our GigaStation and GigaStation+ Wallplates.
  • Make easy, tool-less terminations. Use the termination retention stuffer cap. Or use a 110 tool if you prefer.
  • Angled, staggered IDC 110 contacts and printed circuit board design provide optimum performance.
  • Guaranteed for life!

  • Description

    Category 3 Jacks, Blue


    Quick Facts

  • Meet CAT3 standards.
  • Feature universal wiring.
  • The standard keystone design enables mounting in our GigaStation and GigaStation+ Wallplates.
  • Make easy, tool-less terminations. Use the termination retention stuffer cap. Or use a 110 tool if you prefer.
  • Angled, staggered IDC 110 contacts and printed circuit board design provide optimum performance.
  • Guaranteed for life!

  • Further Details

  • The termination retention stuffer cap provides strain relief while enabling you to easily check terminations. It also serves as a 110 termination platform.
  • An innovative, dual-plane nose contact design improves performance.
  • A Hinged Dust Cover (FM931) protects your termination from dust and other environmental hazards.

    Get ready to make the best—and easiest—terminations ever! Our jacks feature an innovative design with multiple, patent-pending features. You’ll get better performing, stronger terminations in less time and with less confusion than ever.

    Towers of power.
    Reduce installation time and increase performance with these jacks. Each termination tower is separated and paired for easy wire lacing and increased pair separation. The top of each tower is peaked to make pair splitting easier. The towers are also set at a 30° angle, decreasing the angle of wire insertion. This 30° offset increases transmission performance and reduces wire lacing time.

    Making contact.
    Hidden beneath the towers is a unique nose and IDC contact design. We coupled that with state-of-the-art printed circuit-board technology. The result is enhanced compensation, which improves overall performance.

    Double duty.
    The one-piece termination retention stuffer cap serves multiple purposes. When terminating with a 110 punchdown tool, the cap acts as a termination platform. Or if you prefer to do tool-less termination, use the cap as an aid. Once you finish the termination, snap the cap into place for strain relief.

  • Technical Specifications for Category 3 Jacks, Blue:

    IDC Contacts — 100 micro-inch tin-lead 60/40 plated over phosphorus bronze
    Nose Contacts — Beryllium copper with a minimum 50 micro-inch gold plating over nickel
    Standards — Category 3


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Category 3 Jacks, Blue:


    Connect your Category 3 Jacks, Blue with:

    Accessory: FM920

    GigaBase™ CAT5e Jack, Universal Wiring, Single-Pack, Blue

    GigaBase™ CAT5e Jack, Universal Wiring, Single-Pack, Blue

    Accessory: FM630

    GigaTrue CAT6 Jacks, Blue

    GigaTrue CAT6 Jacks, Universal Wiring, Single-Pack, Blue

    Accessory: WP456

    GigaStation Wallplate, 1-Port, Single-Gang, Office White

    GigaStation Wallplate, 1-Port, Single-Gang, Office White

    Accessory: WP553

    GigaStation+ Modular Wallplate, Single-Gang, Black

    GigaStation+ Modular Wallplate, Single-Gang, Black
