Testers & Tools > Testers

click photo to enlarge

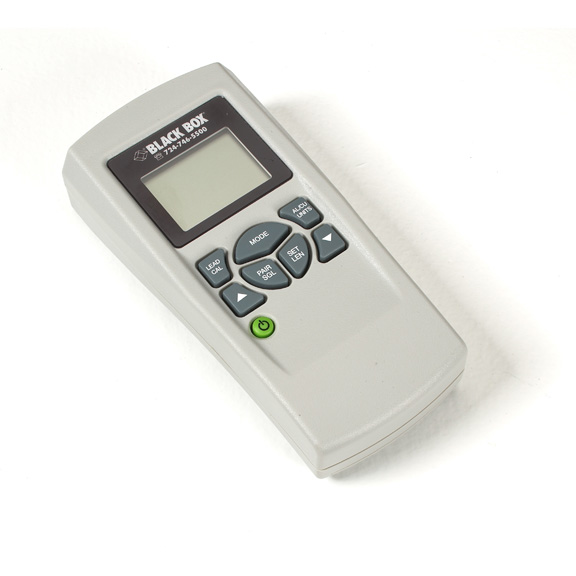

CLM5000

Photo may show similar product

Other views

Cable Length Meter

Measure cable length, troubleshoot shorts, and trace wires.

CLM5000

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Troubleshoots both new and existing lines.
  • Measures distance to opens or shorts.
  • Provides audible indicator for shorted wires.
  • Use with single- or dual-conductor 8–30 AWG network, coax, and telco industrial cable (not CATx).

  • Description

    Cable Length Meter


    Quick Facts

  • Troubleshoots both new and existing lines.
  • Measures distance to opens or shorts.
  • Provides audible indicator for shorted wires.
  • Use with single- or dual-conductor 8–30 AWG network, coax, and telco industrial cable (not CATx).

  • Further Details

  • Large LCD for easier reading in sunlight.
  • Measures copper or aluminum wires 8 to 30 AWG.
  • High voltage protection.
  • 12 preset and 12 programmable wire gauge settings.
  • Four selectable tones in tone generation mode.
  • Manage cable inventory by measuring length on spools.
  • Operation modes: AWG/mm, telco, network, coax, tone generator, ohms.
  • 9-V battery operation.

  • The Cable Length Meter is an easy-to-use, versatile, compact tester for industrial type or pair cable. Use it for measuring cable length or as a tone generator. The meter troubleshoots new or existing lines by measuring distance to shorts or opens, and shorts between lines. It also traces wires by generating up to four trace tones. It works on virtually any single- or two-conductor cable (not CATx) and enables users to find and repair existing cable problems or verify new installations quickly.

    The Cable Length Meter includes 12 preset and 12 user programmable wire gauge settings and offers four selectable tones when in tone generation mode. It also helps technicians keep track of cable inventory both in the field and warehouse by measuring length on spools.


    Technical Specifications for Cable Length Meter:

    Cable Types — Single- or dual-conductor, 8 to 30 AWG network, coax, and telco cables (Does not work with CATx.)
    Environmental — Operating Temperature: 32 to 122° F (0 to 50° C)
    Humidity: 10 to 90%, noncondensing
    Operation Modes — AWG/mm, telco, network, coax, tone generator, ohms
    CE Approval — Yes
    Power — (1) 9-V battery
    Size — 1.3”H x 3”W x 6”D (3.3" x 7.6" x 15.2 cm)
    Weight — 0.72 lb. (0.33 kg) with battery and test leads


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Cable Length Meter:

    Manuals

    • Cable Length Meter Manual
      Manual for the CLM5000.


    Connect your Cable Length Meter with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A One year warranty is included.

    Extended Two years for one Warranty Available


    Protect your purchase with an additional Two years for oneDouble Diamond™ warranty!
    Cost: $21.00

    Extended Three years for two Warranty Available


    Protect your purchase with an additional Three years for twoDouble Diamond™ warranty!
    Cost: $41.99

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    The most complete product warranty exclusively from Black Box

    The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most products come with a one- or two-year warranty. Some products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life! Standard Warranty features are as follows:

    Worry-Free Purchases

    If your new Black Box® brand products are accidentally damaged, you're covered with this no-questions asked warranty. FREE

    Coverage

    Double Diamond™ is the standard warranty that comes with your new Black Box® brand product. Most products come with a one- or two-year warranty.

    Lifetime Guarantees

    Many products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life.

    Fast Service

    During the warranty period, Black Box® Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Extra Coverage

    Extend your warranty or protect a previously purchased Black Box® brand product* for an additional year for only 10% of the current retail price! And when you do, we give you the second year of extended coverage free! FREE Tech Support Hotline. No cost. No contracts. No kidding!

    No-Risk 45-Day Return Policy

    If it's not right, send it back.
    (Excludes custom built products)

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! Forget It.
    Tech Support Hotline 100% FREE! $$$
    Product SKU Price Quantity
    Cable Length Meter CLM5000 $209.95

    LanTest Pro GB Cable Tester Kit TS4000A $299.95

    LAN Solution GB Network Tester Kit TS5000A $799.95
