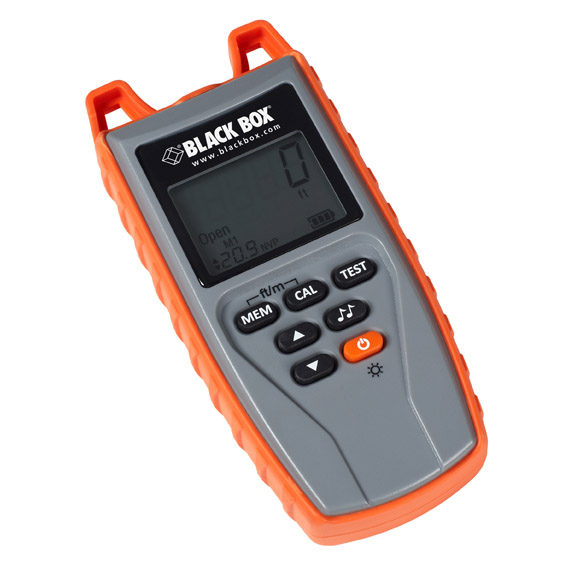

CLM-FF

Photo may show similar product

Other views

Cable Length Meter with Fault Finding

Measure and find faults in data, power, and communications/video cable.

CLM-FF

Extended Double Diamond™ Warranty Available (3 Additional Year)

Product Highlights

  • Determines cable length with 1% accuracy, identifies cable faults, and can be calibrated to the Nominal Velocity of Propagation (NVP) for any cable.
  • Holds up to two different NVP values for multiple cable tests.
  • Tests length, opens, or shorts present on voice, data, and video cables up to 3000 feet long.
  • Spread Spectrum Time Domain Reflectometry (SSTDR) works in all wire environments and is immune to voltage, current, or data disruptions.


  • Further Details

  • Produces four different tones for locating cables.
  • Able to measure cables with voltage.
  • Stores up to two NVP values.
  • Features an extra-large, backlit LCD screen with icons that clearly display test results.
  • Tests any copper cable including data, voice, video, lamp wire, and Romex®.
  • Discovers NVP value for cables with known lengths.
  • Performs automatic pre-test voltage checks.
  • Conserves power and supports long battery life with Auto-off feature and battery life indicator.


  • Common Cable Length Ranges Coaxial cable: 0-2000 feet
    Data cable: 0-1500 feet
    Electrical cable: 0-1000 feet
    Input Protection To 400 volts peak 50/60 Hz AC or DC (60V peak AC or DC). Measurement continues while warning is displayed
    Maximum Length 3000 feet on cables with low attenuation
    Measurement Method Spread spectrum time-domain reflectometry (SSTDR)
    NVP (VOP) Range 20.0 to 99.9%
    NVP Accuracy Range ±1% with known NVP and consistent cable parameters
    Operating Environment Operating temperature: +32 to +122° F (0 to +50° C)
    Storage temperature: -4 to +140° F (-20 to +60° C)
    Humidity: 10 to 90%, noncondensing
    Altitude: 10,000 ft. (3050 m) maximum
    Tone Generation (4) selectable tone cadences centered on 1 kHz; constant output amplitude of 3 Vp-p
    Voltage Warning At maximum of Safety Extra Low Voltage limits (60V peak AC or DC)
    CE Approval Yes
    Power (4) AA alkaline batteries;
    Standby: 4 years
    Active: 15 hours average
    Size 6.8"H x 3.15"W x 1.3"D (17.3 x 8 x 3.3 cm)
    Weight 12 oz. (340 g) with battery


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.

    Manuals

    • Cable Length Meter, with Fault Finding, User Manual
      User Manual for the CLM-FF (Version 1)
