Industrial > Modems, CSU/DSUs, Muxes

click photo to enlarge

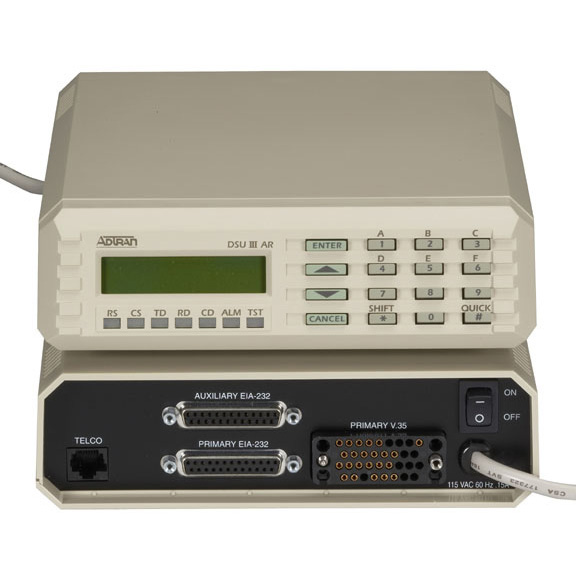

MT132V-R2

Photo may show similar product

Other views

CSU/DSU MS

Easy management and reliability make this CSU/DSU a customer favorite.

MT132V-R2


One year Warranty

Product Highlights

  • Service rate of 2400 bps to 64 kbps.
  • Secondary async channel—75 to 2400 bps.
  • DTE-to-loop rate adaptation.
  • Auto-answers incoming calls.
  • Automatic or manual dialing.
  • Local or remote configuration.

  • Description

    CSU/DSU MS


    Quick Facts

  • Service rate of 2400 bps to 64 kbps.
  • Secondary async channel—75 to 2400 bps.
  • DTE-to-loop rate adaptation.
  • Auto-answers incoming calls.
  • Automatic or manual dialing.
  • Local or remote configuration.

  • Further Details

    The CSU/DSU MS is a flexible, all-rate CSU/DSU for switched or dedicated DDS service. It supports sync and async data rates on the primary channel, and a secondary async channel (such as 4-wire Switched 56) “piggybacks” data over the main sync line.

    Dial on DTR automatically from a bank of stored numbers or manually from the front keypad. The CSU/DSU MS also features an AT command dial port and V.25 bis dialing.

    With local or remote configuration, you can respond to changes when you’re not on-site. Configure the local unit via a front-panel display or through AT or V.25 bis commands. Configure the remote unit the same way from the local unit.


    Technical Specifications for CSU/DSU MS:

    Diagnostics — DTE, DTE/LOOP, DTE with test pattern, loop only, test pattern
    Speed — Up to 64 kbps sync, up to 57.6 kbps async
    Interface — RS-232, V.35
    Connectors — (2) DB25 F, (1) M/34 F, (1) RJ-48C
    Indicators — RTS, CTS, TD, RD, CD, ALRM, TEST
    Power — 115 VAC, 60 Hz, 8 watts
    Size — 2.3"H x 8.8"W x 10.3"D (5.8 x 22.4 x 26.2 cm)
    Weight — 3 lb. (1.4 kg)
    This product works with:
  • V.35 Interface Cable, Male/Male (EYN450-MM)
  • T1 Cable, Straight-Pinned, RJ-48/RJ-48 (ETNMSR01)
  • Extended-Distance Data Cable, 16-Conductor (8 Pairs) (EDN16C)
  • 8-Port Multimux (MX552A)
  • DDS Surge Protector, RJ-45 (SP527A)
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for CSU/DSU MS:

    Product Data Sheets


    Connect your CSU/DSU MS with:

    Accessory: ETNMSR01-0005

    T1 Cable, RJ-48C/RJ-48C, 5-ft. (1.5-m)

    T1 Cable, RJ-48C/RJ-48C, 5-ft. (1.5-m)

    Accessory: EYNT450-0010-MM

    V.35 Interface Cable (34-Conductor), Straight-Pinned, PVC, Male/Male, 10-ft. (3.0-m)

    V.35 Interface Cable (34-Conductor), Straight-Pinned, PVC, Male/Male, 10-ft. (3.0-m)
