Datacom > Modems & CSUs

click photo to enlarge

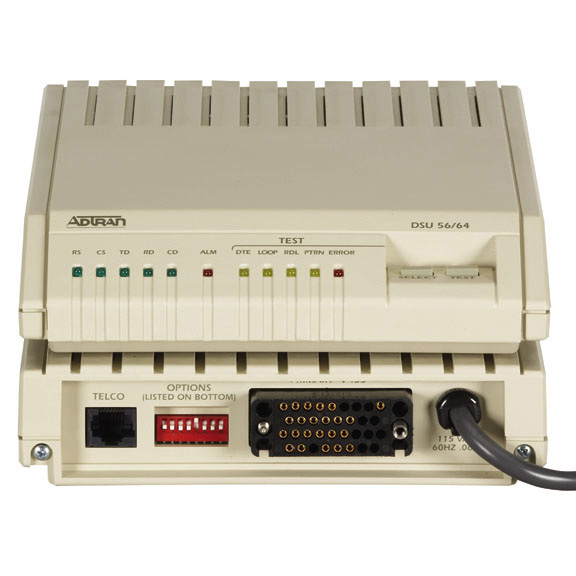

MT146V

Photo may show similar product

Other views

CSU/DSU 56/64 kbps

Your cost-effective DDS line terminator.

MT146V


One year Warranty

Product Highlights

  • Features a V.35 DCE interface.
  • Operates synchronously at 56 or 64 kbps.
  • Works in point-to-point or multipoint applications.
  • Offers high performance at an economical price.

  • Description

    CSU/DSU 56/64 kbps


    Quick Facts

  • Features a V.35 DCE interface.
  • Operates synchronously at 56 or 64 kbps.
  • Works in point-to-point or multipoint applications.
  • Offers high performance at an economical price.

  • Further Details

  • Simple to set up and configure via an eight-position DIP switch.
  • Built-in test capabilities make troubleshooting your line easy.
  • Use as either a ddesktop or wallmount unit.
  • Verify operation and functions with 11 LEDs.

  • The CSU/DSU 56/64 kbps is your cost-effective solution for terminating 56- or 64-kbps DDS services in single point-to-point or multipoint applications.

    The CSU/DSU 56/64 kbps features a synchronous V.35 DCE interface, which operates at the same rate as the service.

    You can configure and set up the CSU/DSU 56/64 kbps via an eight-position DIP switch. And with its built-in test capabilities, you can troubleshoot your line easily. Use this CSU/DSU as either a desktop or wallmount unit.


    Technical Specifications for CSU/DSU 56/64 kbps:

    Diagnostics — Network Test Center Activated: CSU loopback on sealing current reversal in local loop, DSU loopback;
    User Activated: Self-test, Local loopback, V.54 activated remote loopback with 2047 test pattern or DTE data/data from external test set
    Speed — 56/64 kbps
    Interface — Loop interface: 4-wire, full-duplex;
    DTE interface: V.35, full- or half-duplex
    Connectors — (1) RJ-45; (1) M/34 F
    Indicators — (11) LEDs: RS, CS, TD, RD, CD, ALM, DTE, LOOP, RDL, PTRN, ERROR; (2) TEST buttons
    Power — 115 VAC, 60 Hz, 2 watts
    Size — 1.6"H x 6.5"W x 8.3"D (4.1 x 16.5 x 21.1 cm)
    Weight — 1.5 lb. (0.7 kg)

    This product works with:
    • V.35 Interface Cable, Male/Male (EYN450-MM)
    • T1 Cable, Straight-Pinned, RJ-48/RJ-48 (ETNMSR01)
    • DDS Surge Protector, RJ-45 (SP527A)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for CSU/DSU 56/64 kbps:


    Connect your CSU/DSU 56/64 kbps with:

    Accessory: ETNMSR01-0005

    T1 Cable, RJ-48C/RJ-48C, 5-ft. (1.5-m)

    T1 Cable, RJ-48C/RJ-48C, 5-ft. (1.5-m)

    Accessory: EYNT450-0010-MM

    V.35 Interface Cable (34-Conductor), Straight-Pinned, PVC, Male/Male, 10-ft. (3.0-m)

    V.35 Interface Cable (34-Conductor), Straight-Pinned, PVC, Male/Male, 10-ft. (3.0-m)
