IC444A

Photo may show similar product

Other views

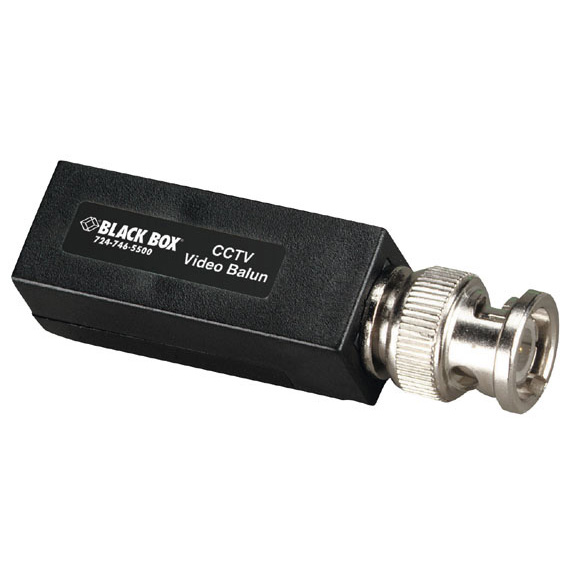

CCTV Video Balun

Save on cabling costs—use UTP cable to extend CCTV video.

IC444A

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • Transmits CCTV video signals via a single UTP cable wired to a terminal strip.
  • Guaranteed for life!

  • Description

    CCTV Video Balun


    Quick Facts

  • Transmits CCTV video signals via a single UTP cable wired to a terminal strip.
  • Guaranteed for life!

  • Further Details

  • Run color video up to 2200 feet (670.5 m) or black-and-white up to 2500 feet (762 m).
  • Eliminates bulky and expensive coax cable, so you can connect CCTV security equipment to UTP cable already installed in a building.
  • Compact enough to fit alongside a security camera, a video multiplexor, or other video device in a tight area.
  • Weather-resistant unit features BNC and screw terminal connections, a polarity identification label, and cable strain relief.


  • Why install a lot of new coax wiring when you want to add a security camera to your application? With this convenient video balun, you can use your existing UTP cabling instead!

    NOTE: Must be used in pairs.

    This product works with:
  • Video CCTV–A/V Hub (IC445A)
  • CAT5 100-MHz Solid-Conductor Cable, 4-Pair, Straight-Pinned (EYN737MS)
  • Active CCTV Receiver Balun (IC453A)
  • Questions? Looking for a compatible balun? Contact our FREE Tech Support.


    Technical Specifications for CCTV Video Balun:

    Bandwidth DC to 8 MHz
    Cable Requirements CAT3 or higher UTP: Solid copper, 24 gauge or lower;
    Impedance: 100 ohms; also works with standard audio with RCA connectors, and 75-ohm coax
    Distance (Maximum) CAT5 UTP: Color: 2200 feet (670.5 m);
    Black-and-white: 2500 ft. (762 m)
    Systems Supported NTSC, PAL, SECAM
    CE Approval Yes
    Connectors (1) BNC M, (1) screw terminal
    Power From the interface
    Size 1.3"H x 0.5"W x 0.5"D (3.3 x 1.3 x 1.3 cm)
    NOTE: Must be used in pairs.

    This product works with:
  • Video CCTV–A/V Hub (IC445A)
  • CAT5 100-MHz Solid-Conductor Cable, 4-Pair, Straight-Pinned (EYN737MS)
  • Active CCTV Receiver Balun (IC453A)
  • Questions? Looking for a compatible balun? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
