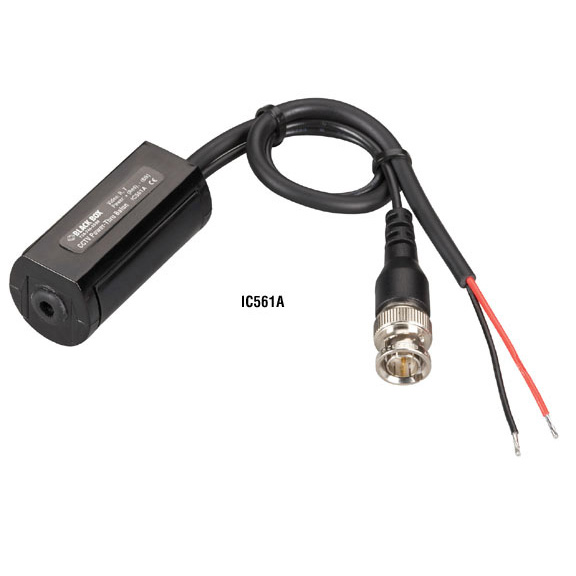

IC561A

Photo may show similar product

Other views

CCTV Power-Through Baluns, with Screw Terminal Connectors

Extend CCTV video and remote power over UTP cable.

IC561A

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • Replace your bulky coax video cables with easy, lightweight CAT5 cabling.
  • Enable you to send video plus remote power.
  • Guaranteed for life!


  • Description

    CCTV Power-Through Balun with Screw Terminal Connectors


    Quick Facts

  • Replace your bulky coax video cables with easy, lightweight CAT5 cabling.
  • Enable you to send video plus remote power.
  • Guaranteed for life!

  • Further Details

  • Support NTSC, PAL, and SECAM video.
  • For color video over CAT5, the baluns support 2200-foot (670.5-m) distances.

  • Available with RJ-45 (IC560A) or screw terminal (IC561A) connectors, these baluns transmit video plus power over a single 4-pair CAT3 or CAT5 cable. They support baseband, NTSC, PAL, or SECAM video at up to 2500 feet (762 m), plus they support 24-VAC power at up to 518 feet (157.8 m) when using 5 VA.

    The baluns work with the CCTV Passive Hubs (IC562A–IC563A).


    Technical Specifications for CCTV Power-Through Baluns, with Screw Terminal Connectors:

    Distance (Maximum) Color video: CAT3: 1200 ft. (365.7 m), CAT5: 2200 ft. (670.5 m);
    Black-and-white video: CAT3: 1500 ft. (457.2 m), CAT5: 2500 ft. (762 m);
    Power: 24 VAC via (3) twisted pairs (based on a 10% voltage drop at the camera): 5 VA: 518 ft. (157.8 m), 10 VA: 259 ft. (78.9 m), 20 VA: 130 ft. (39.6), 30 VA: 86 ft. (26.2 m)
    Connectors IC560A: (1) RJ-45, (1) BNC M, (1) 2-wire 18 AWG lead;
    IC561A: (1) 2-pole screw terminal, (1) BNC M, (1) 2-wire 18 AWG lead
    Size 1.87"L x 1" diameter (4.7 x 2.54 cm) plus 8" (20.3-cm) video lead and 10" (25.4-cm) power lead
    These products work with:
  • CCTV Passive Hubs (IC562A–IC563A)
  • CCTV Mini-Coax Video Baluns (IC451A)
  • CCTV Passthrough Balun (IC452A)
  • CAT5 Unshielded 100-MHz Solid Bulk Cable, 4-Pair (EYN842A, etc.)
  • Questions? Need assistance ordering a compatible balun? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for CCTV Power-Through Baluns, with Screw Terminal Connectors:

    Product Data Sheets


    Connect your CCTV Power-Through Baluns, with Screw Terminal Connectors with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty
