Digital Signage & Multimedia > Video Infrastructure

click photo to enlarge

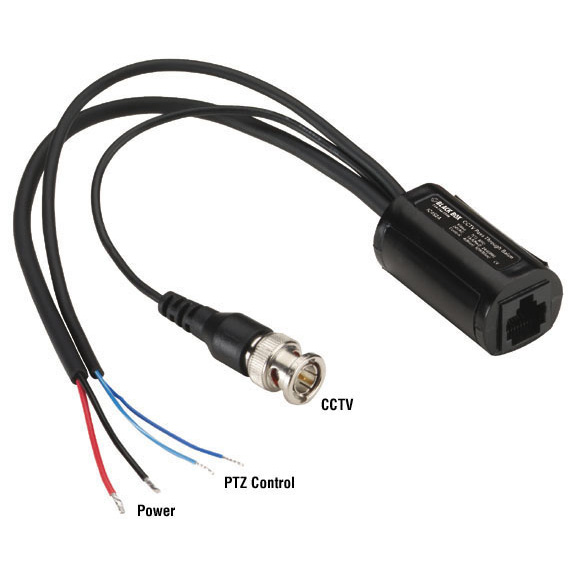

IC452A

Photo may show similar product

Other views

CCTV Passthrough Video Balun

Transmits power and PTZ control signals over CAT5 cable.

IC452A


One year Warranty

Product Highlights

  • Eliminates the need to use coax cable for CCTV.
  • Uses UTP cabling that may already be installed in your building to connect most baseband audio/video equipment, including security cameras, monitors, and VCRs.
  • Guaranteed for life!

  • Description

    CCTV Passthrough Video Balun


    Quick Facts

  • Eliminates the need to use coax cable for CCTV.
  • Uses UTP cabling that may already be installed in your building to connect most baseband audio/video equipment, including security cameras, monitors, and VCRs.
  • Guaranteed for life!

  • Further Details

  • Suppports extended distances via twisted pair—up to 2500 feet!
  • Fits in camera domes and back boxes.

  • In addition to CCTV signals, this balun transmits remote low-voltage power and/or 2-wire pan/tilt/zoom (PTZ) control signals for RS-232 or RS-422 devices. It has an RJ-45 connector, a BNC male connector on a mini-coax lead, a 2-wire 18 AWG lead for power, and a 2-wire 24 AWG lead for PTZ control.


    Technical Specifications for CCTV Passthrough Video Balun:

    Cable Requirements — CAT3 or higher UTP: Solid copper, 24 gauge or lower;
    Impedance: 100 ohms;
    also works with standard audio with RCA connectors, and 75-ohm coax
    Distance (Maximum) — Over CAT5 UTP: Color: 2200 ft. (670.5 m);
    Black-and-white: 2500 ft. (762 m)
    Systems Supported — NTSC, PAL, SECAM
    CE Approval — Yes
    Connectors — (1) RJ-45, (1) BNC M on 8" (20.3-cm) mini-coax lead; (1) 10" (25.4-cm) 2-wire 18 AWG lead (power); (1) 2-wire 24 AWG twisted-pair lead (PTZ control)
    Power — From the interface
    Size — 1"W x 1.9"L (2.5 x 4.8 cm)
    NOTE: The IC452A may be used in pairs or installed at a camera and connected to a cross-connect device with another type of CCTV balun at the remote end. For assistance ordering a compatible balun, contact our FREE Tech Support.

    These products work with:
  • CCTV Mini-Coax Video Balun (IC451A)
  • CCTV Passive Hubs (IC562A–IC563A)
  • CAT5 100-MHz Solid-Conductor Cable, 4-Pair, Straight-Pinned (EYN556MS, EYN550MS, etc.)
  • Questions? Contact our FREE Tech Support

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for CCTV Passthrough Video Balun:

    Product Data Sheets


    Connect your CCTV Passthrough Video Balun with:

    Accessory: IC562A

    CCTV Passive Hubs, with (16) BNC Coax Connectors

    CCTV Passive Hub with (16) BNC Coax Connectors

    Accessory: EYN556MS-0010

    CAT5e Solid-Conductor Patch Cable, PVC, Straight-Pinned, Beige, 10-ft. (3.0-m)

    CAT5e Solid-Conductor Patch Cable, PVC, Straight-Pinned, Beige, 10-ft. (3.0-m)
