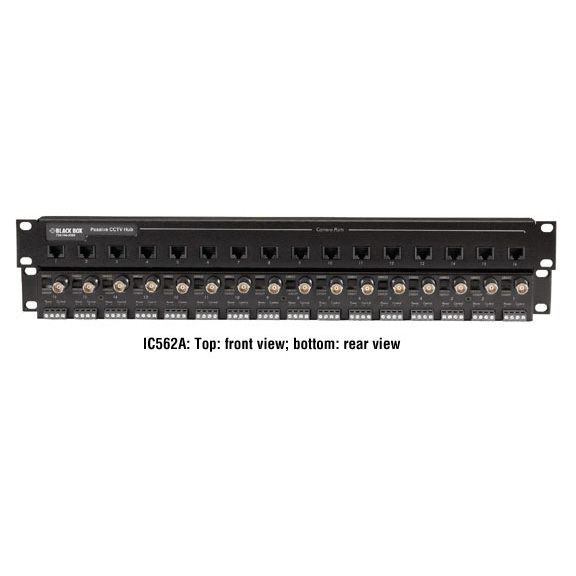

IC562A

Photo may show similar product

Other views

CCTV Passive Hubs, with (16) BNC Coax Connectors

Use twisted-pair instead of coax cable for CCTV transmissions.

IC562A

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • Replace your bulky coax video cables with easy, lightweight CAT5 cabling.
  • Guaranteed for life!


  • Description

    CCTV Passive Hub with (16) BNC Coax Connectors


    Quick Facts

  • Replace your bulky coax video cables with easy, lightweight CAT5 cabling.
  • Guaranteed for life!

  • Further Details

  • Send video and remote power, plus the hubs transmit 2-wire PTZ control, too!
  • Support NTSC, PAL, and SECAM video.
  • For color video over CAT5, the passive hubs support 2500-foot (762-m) extensions.

  • CCTV Passive Hubs centralize and manage your video connections as well as power and PTZ control. They're ideal for managing security cameras in large installations.

    Because the hubs send video, remote power, and PTZ control over a single 4-pair CAT5 cable, they provide significant savings in wiring costs. What's more, the 1U hubs can be mounted in any standard 19" rack, saving you even more work space.

    Supporting NTSC, PAL, and SECAM video standards, the hubs have RJ-45 connectors on the front and either coax (IC562A) or 2-pole screw terminal twisted-pair (IC563A) connectors on the rear. You can set ports individually for power-through or pass-through mode.

    The hubs work with the CCTV Power-Through Baluns (IC560A–IC561A), as well as our CCTV Baluns (IC451A–IC452A).


    Technical Specifications for CCTV Passive Hubs, with (16) BNC Coax Connectors:

    Distance (Maximum) Composite video: 2500 ft. (762 m),
    Power: 350 ft. (106.6 m),
    PTZ: 4000 ft. (1.2 km)
    Connectors IC562A: (16) RJ-45, (16) BNC F, (16) 2-pole screw terminals for power; (16) 2-pole screw terminals for control;
    IC563A: (16) RJ-45, (16) 2-pole screw terminals for twisted pair, (16) 2-pole screw terminals for power; (16) 2-pole screw terminals for control
    Size 1.75"H x 19"W x 1.5"D (4.4 x 48.3 x 3.8 cm)
    These products work with:
  • CCTV Power-Through Baluns (IC560A–IC561A)
  • CCTV Mini-Coax Video Balun (IC451A)
  • CCTV Passthrough Balun (IC452A)
  • CAT5 Unshielded 100-MHz Solid Bulk Cable, 4-Pair (EYN842A, etc.)
  • Questions? Need assistance ordering a compatible balun? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for CCTV Passive Hubs, with (16) BNC Coax Connectors:

    Product Data Sheets


    Connect your CCTV Passive Hubs, with (16) BNC Coax Connectors with:

    Accessory: EYN717A

    CAT5 Unshielded Solid, 100-MHz Bulk Cable, 24 AWG, 2-Pair, PVC, Gray, Custom Lengths

    CAT5 Unshielded Solid, 100-MHz Bulk Cable, 24 AWG, 2-Pair, PVC, Gray, Custom Lengths

    Accessory: IC452A

    CCTV Passthrough Video Balun

    CCTV Passthrough Video Balun

    Accessory: IC560A

    CCTV Power-Through Balun with RJ-45 Connectors

    CCTV Power-Through Balun with RJ-45 Connectors
