Testers & Tools > Tools


click photo to enlarge

FT570A

Photo may show similar product

Other views

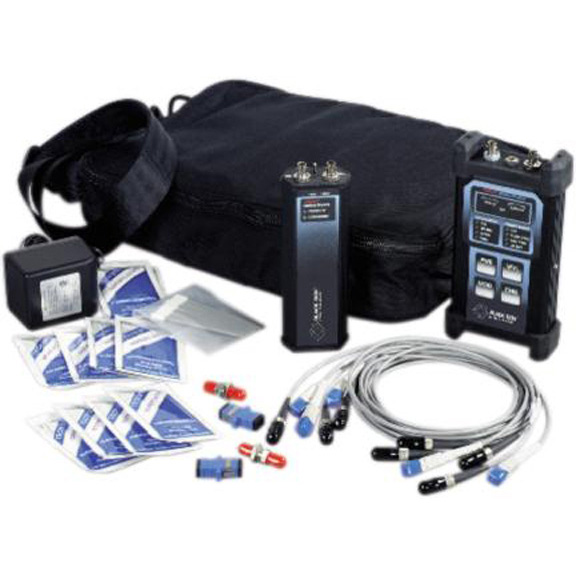

CCMQJ (Certified Commercial Measurement Quality Jumpers) Kit

Everything you need for CCMQJ fiber testing.

FT570A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • The Kit includes three jumper cables for ST®/ST, SC/SC, and ST/SC testing.
  • It also includes everything else you need for CCMQJ testing, such as the light source, power meter, and more.


  • Description

    CCMQJ (Certified Commercial Measurement Quality Jumpers) Kit


    Quick Facts

  • The Kit includes three jumper cables for ST®/ST, SC/SC, and ST/SC testing.
  • It also includes everything else you need for CCMQJ testing, such as the light source, power meter, and more.

  • Further Details

    When testing fiber optic cable after installation, the quality of test jumpers will influence the reliablity of the optical-loss tests.

    One way to ensure accurate and consistent optical-loss testing is to “reference“ or measure the amount of optical power generated by the light source that reaches the power meter before testing the installed cable. Along with referencing, the use of CCMQJ (Certified Commercial Measurement Quality Jumpers) is recommended.

    CCMQJ is a reference cable or jumper of an identified quality. It will not pass substandard links or fail good links. CCMQJ jumper cables have been extensively tested and verified to ensure the effect of the jumper on the test is minimized.

    For example, a 62.5/125 multimode fiber optic cable must meet CCMQJ loss standards of: Low: 0.01 dB, High: 0.35 dB, Standard Deviation: 0.05 dB.

    The jumper cable connectors in the CCMQJ Kit feature zirconia pre-radiused, domed-surface ferrules. This meets the commerical standards as set in ANSI EIA/TIA-492AAAA.


    What’s in the CCMQJ Kit:


    Technical Specifications for CCMQJ (Certified Commercial Measurement Quality Jumpers) Kit:



    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for CCMQJ (Certified Commercial Measurement Quality Jumpers) Kit:

    Product Data Sheets


    Connect your CCMQJ (Certified Commercial Measurement Quality Jumpers) Kit with:
