Datacom > Modems & CSUs

click photo to enlarge

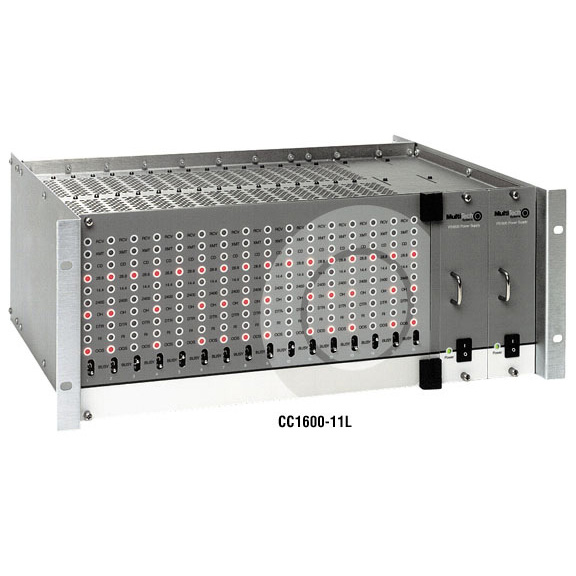

CC1600-11L

Photo may show similar product

Other views

CC1600 Series Rackmount 16-Card Modem Rack

Scalable rack holds up to 16 hot-swappable modem cards.

CC1600-11L


Two year Warranty

Product Highlights

  • Efficiently consolidate modems in central computer rooms.
  • This rack chassis holds 16 hot-swappable V.92/56K Modem Cards (MT5600BR-V92).

  • Description

    CC1600 Series Rackmount Modem System, 16-Card Modem Rack, 115-VAC


    Quick Facts

  • Efficiently consolidate modems in central computer rooms.
  • This rack chassis holds 16 hot-swappable V.92/56K Modem Cards (MT5600BR-V92).

  • Further Details

  • Start small and add modems as your business expands.
  • Download data at 56 kbps and upload at 48 kbps.
  • Send faxes at 14.4 kbps.
  • Use with dialup lines and 2- and 4-wire leased lines.
  • Can be used with 4-wire leased lines with a dialup backup.
  • Ideal if you need dial-in remote access, dial-in/dial-out data communications, and dial-out faxing.
  • V.44 compression improves data throughput.
  • Supports asynchronous and synchronous data.
  • Remote configuration enables centralized management.
  • Features passthrough and fixed callback security.
  • Includes Caller ID.

  • Give your telecommuters and road warriors access to your central LAN and the Internet with the CC1600 Series Rackmount Modem System consisting of the 16-Card Modem Rack (CC1600-11L) and the V.92/56K Modem Card (MT5600BR-V92, sold separately).

    The V.92 Modem Cards download data at a top speed of 56 kbps, and send faxes at 14.4 kbps. Depending on your application, you can connect some modems to 4-wire leased lines and set others up as dial backups.

    Surf the Internet.
    Use the CC1600 System to provide dial-out Internet access to your LAN users. There’s no need to install a separate modem and phone line at every desk.

    Send faxes.
    The system is also an ideal companion for dedicated fax servers. You get reliable send and receive fax capabilities in one compact rackmount chassis.

    Expandable.
    The system gives you a scalable way to connect all the modems in your central computer room. You can start with only a few cards. Then as your business expands, you can add more cards for a total of 16. The system offers you reliability that will serve you well for years.

    You can even hot-swap modem cards if needed without interrupting services to the other cards in the system.

    Protect your data.
    The modem system offers you two types of password security: fixed and passthrough. In the fixed configuration, a user dials in, enters a password, and the modem calls the user back. With a passthrough setup, the caller enters a password but bypasses the callback process.


    Technical Specifications for CC1600 Series Rackmount 16-Card Modem Rack:

    Fan — (1)
    Connectors — (16) DB25 F, (16) RJ-11, (1) 3-prong grounding receptacle
    Power — 90–245 VAC, 70W fully loaded; 5 VDC, ±15 VDC regulated
    Size — 7" (4U) x 19"W x 15"D (17.8 x 48.3 x 38.1 cm)
    Weight — 21 lb. (9.5 kg) including (1) power supply

    NOTE: Although these faxmodems are capable of 56-kbps downloads, FCC regulations limit download speeds to 53 kbps. For the V.92/56K Modem Card (MT5600BR-V92), see Related Products.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for CC1600 Series Rackmount 16-Card Modem Rack:


    Connect your CC1600 Series Rackmount 16-Card Modem Rack with:

    Accessory: MT5600BR-V92

    CC1600 Series V.92/56K Modem Card

    CC1600 Series Rackmount Modem System, V.92/56K Modem Card
