Industrial > Extenders

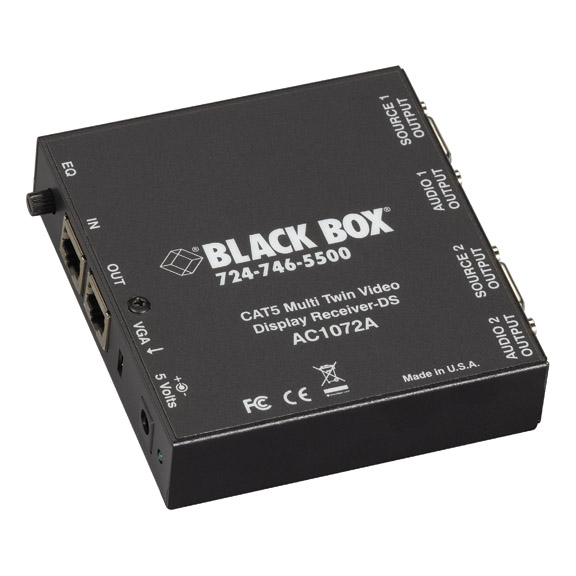

click photo to enlarge

AC1072A

Photo may show similar product

Other views

CATx Multi VGA and Analog Audio Receiver, Dual-Port (Twin Video), Daisychainable, 500 ft.

Link two screens 500 feet away over CATx cable—and daisychain for more displays.

AC1072A


Lifetime Warranty

Product Highlights

  • Keep everyone in the loop with this multimedia distribution system that uses your already-installed CAT5 cable.
  • Provides dual audio and video outputs—perfect for applications with paired displays—and it’s daisychainable, so you can address a series of 4 to 24 back-to-back displays.


    • Description

    CATx Multi VGA and Analog Audio Receiver, Dual-Port (Twin Video), Daisychainable, 500 ft.


    Quick Facts

  • Keep everyone in the loop with this multimedia distribution system that uses your already-installed CAT5 cable.
  • Provides dual audio and video outputs—perfect for applications with paired displays—and it’s daisychainable, so you can address a series of 4 to 24 back-to-back displays.

    • Further Details

  • The receiver works with our CATx Multi VGA and Analog Audio Transmitters (Single-Port and Quad-Hub).
  • Perfect for trade shows, classrooms, information systems, and anywhere you need to distribute video and audio to two screens or displays.
  • Distribute the audio signal to either embedded or separate powered speakers.
  • No software needed; operating system independent.
  • Rackmountable with optional brackets.
  • Use the Multi receivers with our separately available single-port and quad-hub transmitter to build any combination of hub and daisychain topologies.


    • The CATx Multi Video System enables you to send a variety of media over CATx cable to any number of locations far away. System components are inexpensive, and they use ordinary CAT5 cable—which is likely installed at your site already.

    With the system, it’s easy to communicate your message consistently from one content device to video displays or monitors in lobbies, conference rooms, and other areas!

    CATx Multi Transmitters and Receivers share VGA video and analog audio, and support video resolution up to 2048 x 1536 at 70 Hz.

    The receiver featured here is our dual-port (twin video), daisychainable model that supports distances up to 500 feet (152.4 m). It works with our CATx Multi VGA and Analog Audio Transmitters (Single-Port and Quad-Hub). We also offer a non-daisychainable version, as well as receiver models that support greater distances and single-video output, and feature skew compensation.

    No software is needed, and the components are operating system independent. Plus, they’re all plug-and-play and can be rackmounted with the optional brackets for even greater convenience.

    In addition to these CATx Multi components for VGA video and analog audio, we offer systems for:
  • VGA video and RS-232 data extensions.
  • VGA video, stereo audio, and RS-232 data extensions.
  • Component video and SPDIF stereo audio data extensions.
  • VGA video, stereo audio, and pollable RS-232 data extensions.
    However, keep in mind, you cannot mix transmitters and receivers between the different systems.

    Also, for larger systems, see our optionally available CAT5 Multi 1 x 9 Video Distribution Amp (AC1050A). It distributes Composite, Component, and computer video—plus audio and serial signals—to nine displays and takes up only 1U of space. When daisychained, it can support thousands of screens.

    Plus, you can order a CAT5 Multi 16 x 16 Matrix Switch (AC1051A). With it, you can switch signals over CAT5 cable to any number of 16 possible RJ-45 outputs.

    NOTE: To send video and audio greater than 2000 feet (609.6 m), contact our FREE Tech Support.

    NOTE: The UTP cabling used with the CATx Multi System must be pinned according to the TIA-EIA T568B wiring specification. The system’s units are not designed to operate through an Ethernet network.

    This product works with:
  • CATx Multi VGA and Analog Audio Transmitter, Single-Port (AC1000A-R3)
  • CATx Multi VGA and Analog Audio Transmitter, Quad-Port (AC1003A)
    You may also need:
  • Rackmount Brackets for (1) CATx Multi Single-Port Transmitter or Receiver (AC1008)
  • Rackmount Brackets for (4) CATx Multi Single-Port Transmitters or Receivers (AC1009)
  • Rackmount Brackets for (8) CATx Multi Single-Port Transmitters or Receivers (AC1010)
    To connect S-Video, Component, or Composite video to a VGA port on a Multi unit, order:
  • S-Video to HD15 Cable (AC1067A)
  • RCA (3) to HD15 Cable (AC1068A)
    For larger systems, consider:
  • CAT5 Multi 1 x 9 Video Distribution Amp (AC1050A)
  • CAT5 Multi 16 x 16 Matrix Switch (AC1051A)
    Other receivers available:
  • CATx Multi VGA and Analog Audio Receiver, Dual-Port (Twin Video), Non-Daisychainable, 500 ft. (AC1071A)
  • CATx Multi VGA and Analog Audio Receiver, Single-Port, Non-Daisychainable, 500 ft. (AC1001A-R3)
  • CATx Multi VGA and Analog Audio Receiver, Single-Port, Daisychainable, 600 ft. (AC1002A-R3)
  • CATx Multi VGA and Analog Audio Receiver, Single-Port, Daisychainable, 600 ft. with Skew Compensation (AC1211A)
  • CATx Multi VGA and Analog Audio Receiver, Single-Port, Daisychainable, 1200 ft. with Skew Compensation (AC1013A-R2)
  • CATx Multi VGA and Analog Audio Receiver, Single-Port, Daisychainable, 2000 ft. with Skew Compensation (AC1014A-R2)
    Questions? Contact our FREE Tech Support.


    • Technical Specifications for CATx Multi VGA and Analog Audio Receiver, Dual-Port (Twin Video), Daisychainable, 500 ft. :

    Distance and Resolution (Maximum) — 2048 x 1536 at 70 Hz
    Connectors — (2) 3.5-mm F, (2) RJ-45, (2) HD15 F
    Power — 100–240 VAC, 50–60 Hz, autosensing, external
    Size — 1.2"H x 4.1"W x 4.3"D (3 x 10.4 x 10.9 cm)
    This product works with:
  • CATx Multi VGA and Analog Audio Transmitter, Single-Port (AC1000A-R3)
  • CATx Multi VGA and Analog Audio Transmitter, Quad-Port (AC1003A)
    You may also need:
  • Rackmount Brackets for (1) CATx Multi Single-Port Transmitter or Receiver (AC1008)
  • Rackmount Brackets for (4) CATx Multi Single-Port Transmitters or Receivers (AC1009)
  • Rackmount Brackets for (8) CATx Multi Single-Port Transmitters or Receivers (AC1010)
    To connect S-Video, Component, or Composite video to a VGA port on a Multi unit, order:
  • S-Video to HD15 Cable (AC1067A)
  • RCA (3) to HD15 Cable (AC1068A)
    For larger systems, consider:
  • CAT5 Multi 1 x 9 Video Distribution Amp (AC1050A)
  • CAT5 Multi 16 x 16 Matrix Switch (AC1051A)
    Other receivers available:
  • CATx Multi VGA and Analog Audio Receiver, Dual-Port (Twin Video), Non-Daisychainable, 500 ft. (AC1071A)
  • CATx Multi VGA and Analog Audio Receiver, Single-Port, Non-Daisychainable, 500 ft. (AC1001A-R3)
  • CATx Multi VGA and Analog Audio Receiver, Single-Port, Daisychainable, 600 ft. (AC1002A-R3)
  • CATx Multi VGA and Analog Audio Receiver, Single-Port, Daisychainable, 600 ft. with Skew Compensation (AC1211A)
  • CATx Multi VGA and Analog Audio Receiver, Single-Port, Daisychainable, 1200 ft. with Skew Compensation (AC1013A-R2)
  • CATx Multi VGA and Analog Audio Receiver, Single-Port, Daisychainable, 2000 ft. with Skew Compensation (AC1014A-R2)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    • Resources for CATx Multi VGA and Analog Audio Receiver, Dual-Port (Twin Video), Daisychainable, 500 ft. :

    Product Data Sheets


    Connect your CATx Multi VGA and Analog Audio Receiver, Dual-Port (Twin Video), Daisychainable, 500 ft. with:
