Video & Multimedia > Extenders

click photo to enlarge

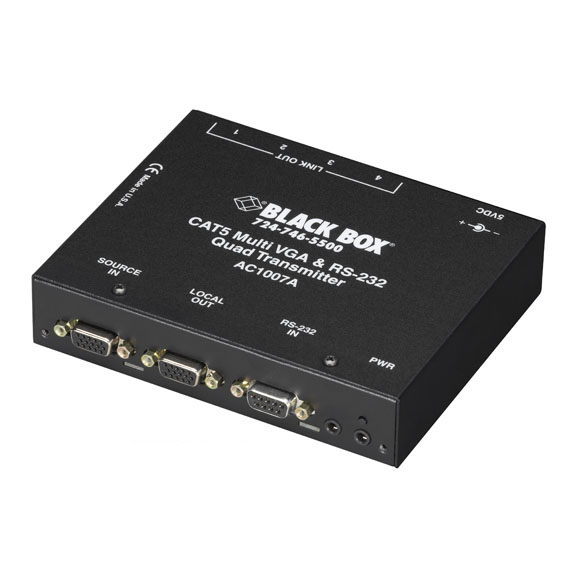

AC1007A

Photo may show similar product

Other views

CATx Multi VGA/RS-232 Data Transmitter, Quad-Hub

Use this transmitter with four CATx Multi VGA/RS-232 Data Receivers.

AC1007A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Keep everyone in the loop with this multimedia distribution system that uses your already-installed CAT5 cable.
  • Build any combination of hub and daisychain topologies with the CAT5 Multi VGA/RS-232 Data System.
  • The transmitter has four RJ-45 ports and works with our CATx Multi VGA/RS-232 Data Receivers.

  • Description

    CATx Multi VGA/RS-232 Data Transmitter, Quad-Hub


    Quick Facts

  • Keep everyone in the loop with this multimedia distribution system that uses your already-installed CAT5 cable.
  • Build any combination of hub and daisychain topologies with the CAT5 Multi VGA/RS-232 Data System.
  • The transmitter has four RJ-45 ports and works with our CATx Multi VGA/RS-232 Data Receivers.

  • Further Details

  • Perfect for trade shows, classrooms, information systems, kiosks, and more.
  • Transmits VGA video along with serial data for control of touch screens and other control-data applications.
  • No software needed; operating system independent.
  • Rackmountable with optional brackets.
  • Combine with various receivers (order separately) to build any combination of hub and daisychain topologies.
  • Single-port version also available.

    The CATx Multi Video System enables you to send a variety of media over CATx cable to any number of locations far away. System components are inexpensive, and they use ordinary CAT5 cable—which is likely installed at your site already.

    With the system, it’s easy to communicate your message consistently from one content device to video displays or monitors in lobbies, conference rooms, and other areas!

    CATx Multi Transmitters and Receivers share VGA video and RS-232 data, and support video resolution up to 2048 x 1536 at 70 Hz.

    The transmitter featured here is the quad-hub transmitter with four RJ-45 ports, which is used to distribute the same signal to multiple display devices. A single-port transmitter is also available. Both versions work with various CATx Multi VGA/RS-232 Data Receivers (see below).

    No software is needed, and the components are operating system independent. Plus, they’re all plug-and-play and can be rackmounted with the optional brackets for even greater convenience.

    In addition to these CATx Multi extenders for VGA video and RS-232 data control, we offer systems for:
  • VGA video and analog audio extensions.
  • VGA video, stereo audio, and RS-232 data extensions.
  • Component video and SPDIF stereo audio data extensions.
  • VGA video, stereo audio, and pollable RS-232 data extensions.
    However, keep in mind, you cannot mix transmitters and receivers between the different systems.

    Also, for larger systems, see our optionally available CAT5 Multi 1 x 9 Video Distribution Amp (AC1050A). It distributes Composite, Component, and computer video—plus audio and serial signals—to nine displays and takes up only 1U of space. When daisychained, it can support thousands of screens.

    Plus, you can order a CAT5 Multi 16 x 16 Matrix Switch (AC1051A). With it, you can switch signals over CAT5 cable to any number of 16 possible RJ-45 outputs.

    NOTE: To send video and serial data greater than 1200 feet (365.8 m), contact our FREE Tech Support.

    NOTE: The UTP cabling used with the CATx Multi System must be pinned according to the TIA-EIA T568B wiring specification. The system’s units are not designed to operate through an Ethernet network.

    This product works with:
  • CATx Multi VGA/RS-232 Data Receiver, Duplex, Single-Port, Non-Daisychainable, 600-ft. (AC1005A-R3)
  • CATx Multi VGA/RS-232 Data Receiver, Duplex, Single-Port, Non-Daisychainable, 600-ft. with Skew Compensation (AC1213A)
  • CATx Multi VGA/RS-232 Data Receiver, Duplex, Single-Port, Daisychainable, 1200-ft. with Skew Compensation (AC1015A-R2)
  • CATx Multi VGA/RS-232 Data Receiver, Simplex, Single-Port, Daisychainable, 600-ft. (AC1006A-R2)
  • CATx Multi VGA/RS-232 Data Receiver, Simplex, Single-Port, Daisychainable, 600-ft. with Skew Compensation (AC1212A)
    You may also need:
  • Rackmount Brackets for (3) Quad-Hub Transmitters (AC1011)
  • Rackmount Brackets for (6) Quad-Hub Transmitters (AC1012)
    To connect S-Video, Component, or Composite video to a VGA port on a Multi unit, order:
  • S-Video to HD15 Cable (AC1067A)
  • RCA (3) to HD15 Cable (AC1068A)
    For larger systems, consider:
  • CAT5 Multi 1 x 9 Video Distribution Amp (AC1050A)
  • CAT5 Multi 16 x 16 Matrix Switch (AC1051A)
    Questions? Contact our FREE Tech Support.

  • Technical Specifications for CATx Multi VGA/RS-232 Data Transmitter, Quad-Hub:

    Distance and Resolution (Maximum) — 2048 x 1536 at 70 Hz
    Connectors — (1) DB9 F, (4) RJ-45, (2) HD15 F
    Power — 100–240 VAC, 50–60 Hz, autosensing, external
    Size — 1.2"H x 5.6"W x 4.5"D (3.1 x 14.2 x 11.4 cm)
    This product works with:
  • CATx Multi VGA/RS-232 Data Receiver, Duplex, Single-Port, Non-Daisychainable, 600-ft. (AC1005A-R3)
  • CATx Multi VGA/RS-232 Data Receiver, Duplex, Single-Port, Non-Daisychainable, 600-ft. with Skew Compensation (AC1213A)
  • CATx Multi VGA/RS-232 Data Receiver, Duplex, Single-Port, Daisychainable, 1200-ft. with Skew Compensation (AC1015A-R2)
  • CATx Multi VGA/RS-232 Data Receiver, Simplex, Single-Port, Daisychainable, 600-ft. (AC1006A-R2)
  • CATx Multi VGA/RS-232 Data Receiver, Simplex, Single-Port, Daisychainable, 600-ft. with Skew Compensation (AC1212A)
    You may also need:
  • Rackmount Brackets for (3) Quad-Hub Transmitters (AC1011)
  • Rackmount Brackets for (6) Quad-Hub Transmitters (AC1012)
    To connect S-Video, Component, or Composite video to a VGA port on a Multi unit, order:
  • S-Video to HD15 Cable (AC1067A)
  • RCA (3) to HD15 Cable (AC1068A)
    For larger systems, consider:
  • CAT5 Multi 1 x 9 Video Distribution Amp (AC1050A)
  • CAT5 Multi 16 x 16 Matrix Switch (AC1051A)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
