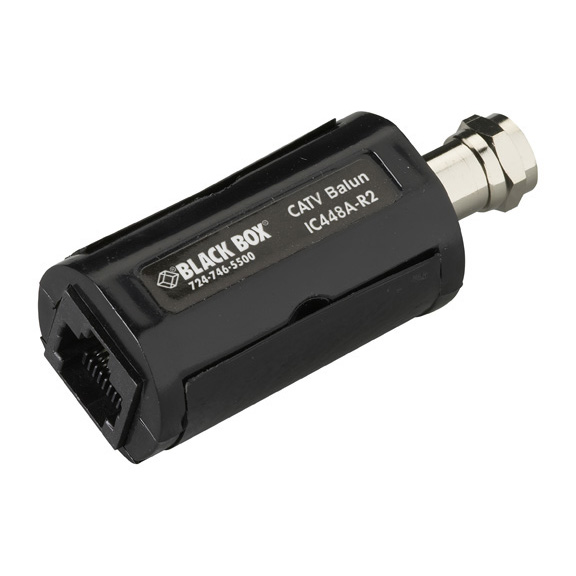

IC448A-R2

Photo may show similar product

Other views

CATV Balun

Integrate CATV equipment into your CAT5 structured cabling system.

IC448A-R2

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • Uses the CAT5 cable already installed in your building to make CATV connections.
  • Works with CATV, VHF, and FM systems.
  • Built-in F-type connector minimizes signal loss and eliminates the need for jumper cables by connecting directly to most equipment.
  • Guaranteed for life!

  • Description

    CATV Balun


    Quick Facts

  • Uses the CAT5 cable already installed in your building to make CATV connections.
  • Works with CATV, VHF, and FM systems.
  • Built-in F-type connector minimizes signal loss and eliminates the need for jumper cables by connecting directly to most equipment.
  • Guaranteed for life!

  • Further Details

  • Rates for both commercial and residential applications.
  • Low return loss eliminates ghosting.
  • Makes moves, adds, and changes quicker.
  • Provides a versatile cable solution for broadband video systems in schools, hospitals, hotels, convention centers, and more.
  • Connects cable TV lines, cable modems, satellite receivers, VCRs, and other broadband video equipment.


  • Technical Specifications for CATV Balun:

    Bandwidth 5 MHz to 900 MHz
    Cable Requirements UTP: Solid copper, 24 AWG or lower;
    Impedance: 75 ohms at 1 MHz (RG-6)
    Channels Supported CATV: 2-142;
    VHF: 2-13;
    FM broadcast band
    Common Mode Rejection -20 dB or higher at 5 MHz-900 MHz
    Distance (Maximum) 330 ft. (100 m) via CAT5 UTP, depending on frequency;
    CATV Channel 2: 330 ft. (100 m);
    May require tilt amplifiers at higher frequencies
    Insertion Loss < 10 dB: 5-10 MHz;
    < 4 dB: 600-725 MHz;
    < 3 dB: 10-600 MHz, 725-900 MHz
    Pinning RJ-45 connector: Pins 7 & 8 reverse polarity sensitive
    Return Loss > 10 dB: 15-370 MHz, 770-900 MHz
    >7 dB: 370-770 MHz
    Transmission Transparent to the user
    CE Approval Yes
    Connectors (1) RJ-45; (1) F-type M
    Size 2.5"H x 1"W (6.4 x 2.5 cm)
    NOTE: Must be used in pairs.

    This product works with:
  • CAT5 100-MHz Solid-Conductor Cable, 4-Pair, Straight-Pinned (EYN737MS)
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
