Cables > Copper Bulk Cables

click photo to enlarge

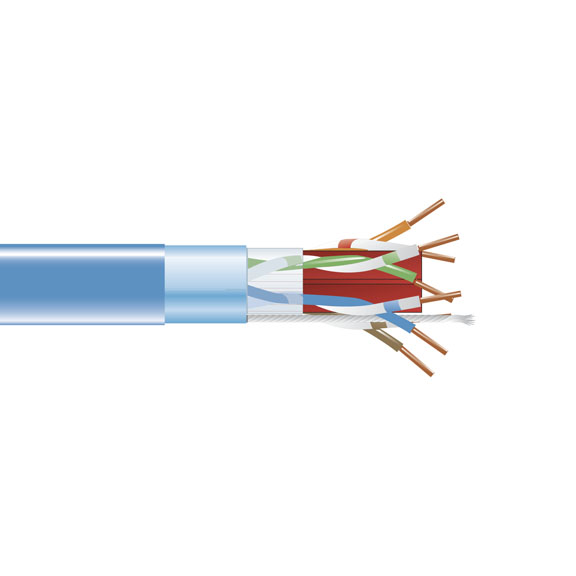

EYN771A-RL-1000

Photo may show similar product

Other views

CAT6a 650-MHz F/UTP Bulk Cable, 23 AWG, Solid, 4-Pair, Plenum CMP, Blue, 1000-ft. (304.8-m)

Delivers channel performance beyond CAT6a standards.

EYN771A-RL-1000


Lifetime Warranty

Product Highlights

  • Use with Black Box® CAT6a components for a 10GBASE-T channel.
  • Tested up to 650 MHz.
  • Foil shield construction virtually eliminates alien crosstalk.
  • Guaranteed for life!


    • Description

    CAT6a 650-MHz F/UTP Bulk Cable, 23 AWG, Solid, 4-Pair, Plenum CMP, Blue, 1000-ft. (304.8-m)


    Quick Facts

  • Use with Black Box® CAT6a components for a 10GBASE-T channel.
  • Tested up to 650 MHz.
  • Foil shield construction virtually eliminates alien crosstalk.
  • Guaranteed for life!

    • Further Details

  • A center isolation member maintains pair separation for optimal NEXT performance.
  • Supports IEEE 802.3 and 10GBASE-T, and TIA 568-C.2. ETL tested.
  • Construction: Internal separator, FEP insulation, dielectric tape, drain wire, aluminum/Mylar® tape.
  • Smaller outside diameter than normal; CAT6a UTP.

    • NOTE: Also available in PVC.


    Technical Specifications for CAT6a 650-MHz F/UTP Bulk Cable, 23 AWG, Solid, 4-Pair, Plenum CMP, Blue, 1000-ft. (304.8-m):

    ACRF — 37.8 dB at 100 MHz; 29.8 dB at 250 MHz; 26.9 dB at 350 MHz; 20.8 dB at 500 MHz; 21.5 dB at 650 MHz (previously referred to as equal level far end crosstalk (ELFEXT)
    Bend Radius —1.29" (33 mm)
    Conductors —4-pair, 23 AWG, solid copper
    Construction —Internal separator, FEP insulation, dielectric tape, drain wire, aluminum/Mylar tape
    Insertion Loss (dB/100 m) — 18.6 at 100 MHz; 43.8 at 500 MHz; 50.6 at 650 MHz
    Insulation —Fluoropolymer (FEP)
    Jacket — Low-smoke, flame-retardant PVC
    NEXT — 45.3 dB at 100 MHz; 39.3 dB at 250 MHz; 37.1 dB at 350 MHz; 34.8 dB at 500 MHz; 33.1 dB at 650 MHz
    Outside Diameter — 0.283" (7.3 mm)
    PS-AACRF — 48.2 dB at 100 MHz; 40.2 dB at 250 MHz; 37.3 dB at 350 MHz; 34.2 dB at 500 MHz; 31.9 dB at 650 MHz
    PS-ACRF — 34.8 dB at 100 MHz; 18.5 dB at 650 MHz
    PS-ANEXT — 42.5 dB at 100 MHz; 66.5 dB at 250 MHz; 64.3 dB at 350 MHz; 62.0 dB at 500 MHz; 60.3 dB at 650 MHz
    PS-NEXT — 43.3 dB at 100 MHz; 37.3 dB at 250 MHz; 35.1 dB at 350 MHz; 32.8 dB at 500 MHz; 31.1 dB at 650 MHz
    Return Loss (dB/100 m) — 21.1 at 100 MHz; 16.5 at 500 MHz; 15.7 at 650 MHz
    RoHS — Yes
    Standards — IEEE 802.an; TIA 568-C.2; UL®, ETL Tested
    Weight — Not on reel: 48.3 lb. (21.9 kg)
    NOTE: Also available in PVC.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
