Cables > Copper Patch Cables


click photo to enlarge

EVNSL741-0015

Photo may show similar product

Other views

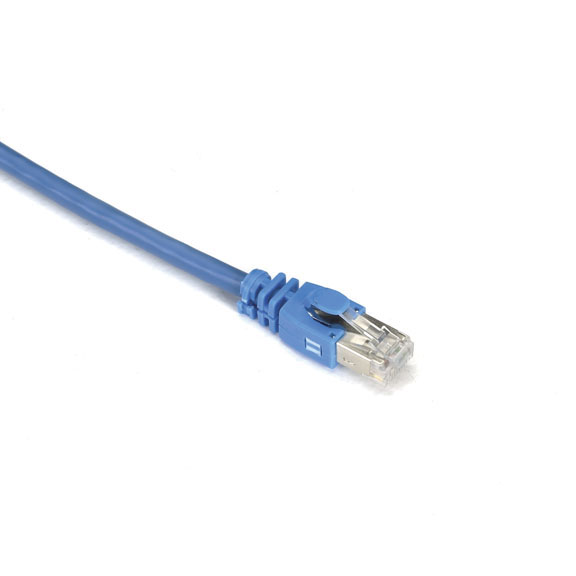

CAT6a 600-Mhz Shielded Stranded Patch Cable (S/FTP), PVC, Blue, 15-ft. (4.5-m)

Shielded CAT6a cable designed for 10GBASE-T applications.

EVNSL741-0015

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • Meets or exceeds all augmented CAT6 performance requirements.
  • Tested to 600 MHz.
  • Guaranteed for life!


  • Description

    CAT6a 600-MHz Shielded Stranded Patch Cable (S/FTP), PVC, Blue, 15-ft. (4.5-m)


    Quick Facts

  • Meets or exceeds all augmented CAT6 performance requirements.
  • Tested to 600 MHz.
  • Guaranteed for life!

  • Further Details

  • Fully shielded construction virtually eliminates alien crosstalk.
  • Supports high-end applications such as 10GBASE-T.
  • Cable construction: 26 AWG stranded conductor, straight-pinned, 4-pair, T568B, snagless hoods.
  • Shielding: PE foam insulation, aluminum/Mylar® tape, tinned-copper braid, PVC jacket.


  • Technical Specifications for CAT6a 600-Mhz Shielded Stranded Patch Cable (S/FTP), PVC, Blue, 15-ft. (4.5-m) :

    Attenuation 28.5 dB/100 m at 100 MHz; 46.5 dB/100 m at 250 MHz; 51.3 dB/100 m at 300 MHz; 75.1 dB/100 m at 600 MHz
    Delay Skew 25 ns
    Diameter (Outside) .22" (0.57 cm)
    ELFEXT (Minimum) 54 dB at 100 MHz; 46 dB at 250 MHz; 44 dB at 300 MHz; 38 dB at 600 MHz
    Impedance 100 ± 22 ohms at 100 MHz; 100 ± 25 ohms @ 200-600 MHz
    Insulation Foamed PE
    Mutual Capacitance 4.6 f/100 m at 1 kHz
    NEXT (Minimum) 72 dB at 100 MHz; 66 dB at 250 MHz; 65 dB at 300 MHz; 61 dB at 600 MHz
    Propagation Delay 537.6 ns @ 100 MHz; 536.28 ns @ 250 MHz; 535.47 ns @ 600 MHz
    PS-ELFEXT (Minimum) 51 dB at 100 MHz; 43 dB at 250 MHz; 41 dB at 300 MHz; 35 dB at 600 MHz
    PS-NEXT (Minimum) 69 dB at 100 MHz; 63 dB at 250 MHz; 62 dB at 300 MHz; 58 dB at 600 MHz
    Return Loss (Minimum) 19 dB at 100 MHz; 15.6 dB at 250 MHz; 15.6 dB at 300 MHz; 15.6 dB at 600 MHz
    RoHS Yes
    Standards ISO/IEC 11801; IEC 61156-6; EN50288-4-2; UL® 444 CM


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for CAT6a 600-Mhz Shielded Stranded Patch Cable (S/FTP), PVC, Blue, 15-ft. (4.5-m) :

    Pdf Drawings

    • CAT6a 600-MHz Shielded Stranded Patch Cable (S/FTP, PVC, Blue) PDF Drawing
      PDF Drawing for the EVNSL741-0003, EVNSL741-0006, EVNSL741-0010, and EVNSL741-0015

    Black Box Explains


    Connect your CAT6a 600-Mhz Shielded Stranded Patch Cable (S/FTP), PVC, Blue, 15-ft. (4.5-m) with:

    Accessory: FMT700

    CAT6a Shielded Jack, Universal Wiring, 4-Pair

    CAT6a Shielded Jack, Universal Wiring, 4-Pair

    Accessory: JPMT700A

    CAT6a Blank Patch Panel, 24-Port, 19", 1.75"H, 1U

    CAT6a Blank Patch Panel, 24-Port, 19", 1.75"H, 1U

    Accessory: WPT454

    GigaStation2 Wallplate, 1-Port Single-Gang, Ivory

    GigaStation2 Wallplate, 1-Port Single-Gang, Ivory

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A warranty is included.

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most of our products come with a one- or two-year warranty. Some products—such as copper cables, manual switches, cabinets, and racks—are even guaranteed for life!

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product* for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! ?
    Tech Support Hotline 100% FREE! $$$

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    You can find this product in the following subcategory(s)


    Add to Cart

    Price: $18.95

    Quantity Available: 209

    Quantity

    Warranty

    Total

    Shipping Info

    In Stock - orders received before 5PM ET ship same day

    Weight: 0.437 lbs.
    HxWxD: 1 x 7 x 7 in.

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.
