Cables > CAT6a

click photo to enlarge

EVNSL741-0006

Photo may show similar product

Other views

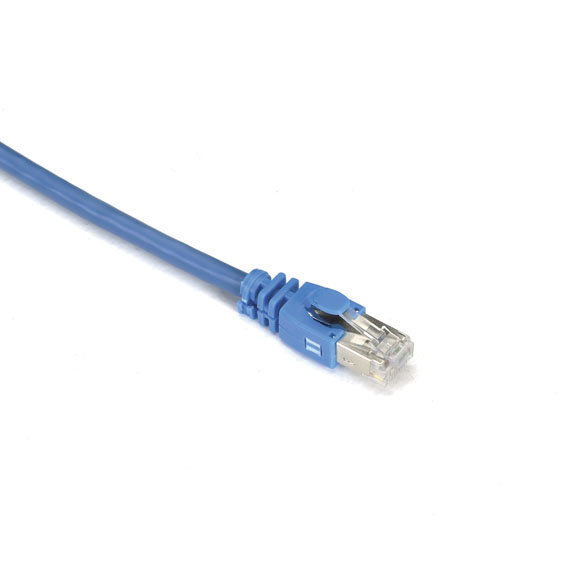

CAT6a 600-MHz Shielded Stranded Patch Cable (S/FTP), PVC, Blue, 6-ft. (1.8-m)

Shielded CAT6a cable designed for 10GBASE-T applications.

EVNSL741-0006


Lifetime Warranty

Product Highlights

  • Meets or exceeds all augmented CAT6 performance requirements.
  • Tested to 600 MHz.
  • Fully shielded construction virtually eliminates alien crosstalk.
  • Supports high-end applications such as 10GBASE-T.
  • Guaranteed for life!


    • Description

    CAT6a 600-MHz Shielded Stranded Patch Cable (S/FTP), PVC, Blue, 6-ft. (1.8-m)


    Quick Facts

  • Meets or exceeds all augmented CAT6 performance requirements.
  • Tested to 600 MHz.
  • Fully shielded construction virtually eliminates alien crosstalk.
  • Supports high-end applications such as 10GBASE-T.
  • Guaranteed for life!

    • Further Details

  • Cable construction: 26 AWG stranded conductor, straight-pinned, 4-pair, T568B, molded hoods.
  • Shielding: PE foam insulation, aluminum/Mylar® tape, tinned-copper braid, PVC jacket.


    • Technical Specifications for CAT6a 600-MHz Shielded Stranded Patch Cable (S/FTP), PVC, Blue, 6-ft. (1.8-m):

    Attenuation — 28.5 dB/100 m at 100 MHz; 46.5 dB/100 m at 250 MHz; 51.3 dB/100 m at 300 MHz; 75.1 dB/100 m at 600 MHz
    Delay Skew — 25 ns
    Diameter (Outside) — .22" (0.57 cm)
    ELFEXT (Minimum) — 54 dB at 100 MHz; 46 dB at 250 MHz; 44 dB at 300 MHz; 38 dB at 600 MHz
    Impedance — 100 ± 22 ohms at 100 MHz; 100 ± 25 ohms @ 200–600 MHz
    Insulation — Foamed PE
    Mutual Capacitance — 4.6 f/100 m at 1 kHz
    NEXT (Minimum) — 72 dB at 100 MHz; 66 dB at 250 MHz; 65 dB at 300 MHz; 61 dB at 600 MHz
    Propagation Delay — 537.6 ns @ 100 MHz; 536.28 ns @ 250 MHz; 535.47 ns @ 600 MHz
    PS-ELFEXT (Minimum) — 51 dB at 100 MHz; 43 dB at 250 MHz; 41 dB at 300 MHz; 35 dB at 600 MHz
    PS-NEXT (Minimum) — 69 dB at 100 MHz; 63 dB at 250 MHz; 62 dB at 300 MHz; 58 dB at 600 MHz
    Return Loss (Minimum) — 19 dB at 100 MHz; 15.6 dB at 250 MHz; 15.6 dB at 300 MHz; 15.6 dB at 600 MHz
    RoHS — Yes
    Standards — ISO/IEC 11801; IEC 61156-6; EN50288-4-2; UL® 444 CM


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for CAT6a 600-MHz Shielded Stranded Patch Cable (S/FTP), PVC, Blue, 6-ft. (1.8-m):

    Pdf Drawings

    • CAT6a 600-MHz Shielded Stranded Patch Cable (S/FTP, PVC, Blue) PDF Drawing
      PDF Drawing for the EVNSL741-0003, EVNSL741-0006, EVNSL741-0010, and EVNSL741-0015
      httpftp

    Black Box Explains


    Connect your CAT6a 600-MHz Shielded Stranded Patch Cable (S/FTP), PVC, Blue, 6-ft. (1.8-m) with:
